Create Your Own Zero Clearance Insert: A DIY Guide for Table and Band Saws

Achieving clean, precise cuts in your woodworking projects often hinges on the details. One often-overlooked detail that can significantly impact the quality of your cuts is the throat plate on your table saw or band saw. A standard throat plate typically has a wide opening around the blade, which can lead to tearout – those unsightly splinters and ragged edges that mar your finished pieces. Moreover, small offcuts can sometimes wedge themselves between the blade and the throat plate, posing a safety hazard and disrupting your workflow.

The solution? A zero clearance insert. This custom-made insert minimizes the gap around the blade, providing support to the wood fibers during the cutting process. This drastically reduces tearout, resulting in cleaner, more professional-looking cuts. Additionally, it prevents small pieces from falling into the blade opening, enhancing safety and maintaining a smooth, uninterrupted cutting experience.

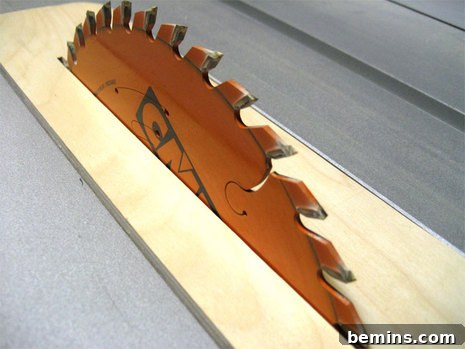

What is a Zero Clearance Insert?

A zero clearance insert is essentially a replacement for the standard throat plate that comes with your table saw or band saw. Unlike the original throat plate, which has a relatively large opening to accommodate various blade angles and sizes, a zero clearance insert is custom-cut to precisely fit the kerf (the width of the cut made by the blade) of your specific saw blade. This close fit provides maximum support to the wood surrounding the cut, minimizing vibration and tearout.

As Rockler.com aptly describes, “A zero clearance insert is a substitute for the throat plate that came with your table saw. The opening in the insert is cut on the table saw to the exact width of the saw blade’s kerf, thereby preventing thin slices of wood from jamming in between the blade and the throat plate during a cut, and reducing the amount of tear-out that can happen with a standard insert.”

Why Make Your Own Zero Clearance Insert?

While you can purchase pre-made zero clearance inserts from woodworking supply stores like Rockler, they can be quite expensive, often costing around $25 or more per insert. For the cost-conscious woodworker, or for those who use a variety of blades and dado sets, making your own zero clearance inserts is a much more economical option. Using scrap plywood, you can create multiple inserts tailored to each of your blades, ensuring optimal performance for every cutting task.

Furthermore, making your own insert allows for customization. You can choose the material, add features like a rear support for thin stock, or even embed magnets to hold the insert securely in place. The possibilities are endless!

DIY Zero Clearance Insert: Step-by-Step Instructions

This guide focuses on creating a zero clearance insert for a table saw, but the same principles and techniques can easily be adapted for a band saw. The key is to accurately replicate the shape and dimensions of your existing throat plate and then carefully cut the blade kerf into the new insert.

Materials You’ll Need:

• Scrap piece of 1/2″ plywood (ensure the thickness is appropriate for your saw’s throat plate)
• Original throat plate from your table saw or band saw
• Double-sided tape
• Router with a pattern-following bit (bearing on the bottom or top, depending on your setup)
• Jigsaw or band saw
• Drill with a 1/2″ drill bit or sanding drum
• Sandpaper (various grits)
• Paste wax (optional)
• Clamps
• Safety glasses and hearing protection

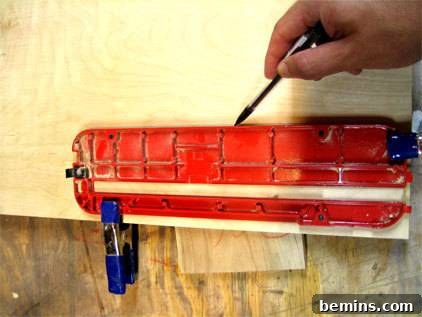

Step 1: Trace the Original Throat Plate

Begin by placing your original throat plate on the scrap piece of 1/2″ plywood. Carefully trace the outline of the throat plate onto the plywood using a pencil or marker. Ensure the tracing is accurate and follows the contours of the original plate precisely. This tracing will serve as the template for your new zero clearance insert.

Step 2: Cut Out the Rough Shape

Using a jigsaw or band saw, carefully cut out the traced shape from the plywood. Stay slightly outside the traced line, leaving a small amount of excess material. This will allow for a more precise shaping in the next step. Take your time and ensure the cut is as smooth and accurate as possible.

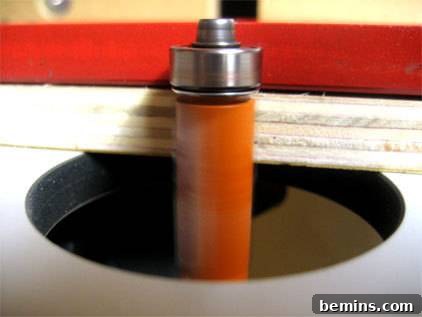

Step 3: Create an Exact Copy with a Router

This step is crucial for ensuring a perfect fit. Apply double-sided tape to the back of the original throat plate and carefully attach it to the plywood blank you just cut out. Make sure the two pieces are aligned perfectly.

Mount a pattern-following bit in your router. A pattern-following bit has a bearing that rides along the edge of the template (in this case, the original throat plate), guiding the cutting action. With the router set to the appropriate depth, carefully trace the perimeter of the original throat plate with the pattern-following bit. This will create an exact replica of the original throat plate in the plywood.

Important: Make sure the bearing of your router bit is clean and rotates freely. Also, consider making several copies while you have the bit installed. This will provide you with spares or allow you to create inserts for different blade types.

Step 4: Create a Removal Notch

Drill a 1/2″ hole into one corner of the insert, away from where the blade will pass. Alternatively, you can use a sanding drum attached to a drill to create a half-circle notch in one edge. This notch will provide a convenient way to grip and remove the insert from the table saw or band saw.

Step 5: Adjust the Thickness

The thickness of the insert is critical for a smooth, safe operation. The insert needs to be flush with the surface of your table saw or band saw table. Use sandpaper or a hand plane to carefully reduce the thickness of the insert, checking the fit frequently. Work in small increments to avoid removing too much material. Aim for a perfectly flush fit.

Step 6: Secure the Insert for Cutting

Place the insert into the throat of your table saw. Use a scrap piece of dimensional lumber and clamps to securely hold the insert in place. Ensure the insert is firmly clamped and cannot move during the cutting process. Most importantly, make sure your hands are clear of the blade path.

Step 7: Cut the Blade Kerf

This is the most important and potentially dangerous step. Ensure you are wearing safety glasses and hearing protection. Double-check that the insert is securely clamped and your hands are safely positioned.

Turn on the table saw and slowly raise the blade to its full height, cutting a perfectly matched kerf into the insert. The kerf should be just wide enough to accommodate the blade without binding. Once the blade has reached its full height and completed the cut, turn off the saw and wait for the blade to come to a complete stop before removing the insert.

Important Safety Note: Never start the saw with the blade already raised through the insert. Always raise the blade slowly and deliberately to avoid kickback or damage to the blade or saw.

Step 8: Sand and Finish

Once the kerf has been cut, remove the insert from the saw. Sand the top surface of the insert with fine-grit sandpaper to smooth any rough edges or imperfections. For added smoothness and reduced friction, apply a light coat of paste wax to the top surface of the insert. Buff the wax with a clean cloth to create a slick, smooth surface.

Step 9: Start Cutting with Confidence!

Your zero clearance insert is now complete and ready to use! Install it in your table saw or band saw and experience the difference it makes in the quality of your cuts. Enjoy cleaner, more precise results with minimal tearout and increased safety.

Tips for Success

• Use high-quality plywood: The better the quality of the plywood, the more durable and stable your zero clearance insert will be.
• Take your time: Accuracy is key to creating a well-fitting zero clearance insert. Rushing the process can lead to mistakes and a poor-fitting insert.
• Double-check your measurements: Before making any cuts, double-check your measurements to ensure accuracy.
• Use sharp blades: A sharp blade will produce cleaner cuts and reduce tearout, even with a zero clearance insert.
• Consider making multiple inserts: Having multiple inserts allows you to switch between different blades and dado sets without having to make a new insert each time.
• Store your inserts properly: Store your inserts in a dry, safe place to prevent warping or damage.

Creating your own zero clearance insert is a simple and cost-effective way to improve the quality and safety of your woodworking projects. With a little time and effort, you can create a custom insert that will provide years of reliable service and help you achieve professional-looking results.
