DIY Light Table: A Comprehensive Guide to Building Your Own

A light table, also known as a light box, is an incredibly versatile tool with applications spanning art, photography, and even professional fields. From meticulously examining slides and negatives to tracing intricate artwork, exposing photo emulsion for screen printing, or creating captivating special effects in photography, the possibilities are virtually limitless. Instead of purchasing a commercially manufactured light table, which can often be quite expensive, you can embark on a rewarding weekend project to construct your own custom light table, perfectly tailored to your specific needs and preferences.

The underlying principle behind a light table is remarkably simple yet profoundly effective: objects illuminated from behind appear significantly more vibrant and detailed than those lit from the front. This phenomenon occurs because transmitted light passes directly through the object, revealing its inherent colors, textures, and subtle nuances. Consider the captivating beauty of stained glass windows in churches or the stunning clarity of photographic slides – their visual appeal stems from the light shining through them, rather than reflecting off them. A light table essentially replicates this effect, providing an ideal platform for inspecting slides and negatives, creating captivating artwork, and exploring a wide range of creative applications.

Why Build Your Own Light Table?

While commercially available light tables offer convenience, constructing your own provides several distinct advantages:

• Cost-Effectiveness: Building a light table from scratch is significantly cheaper than purchasing a pre-made one. You can save a considerable amount of money by sourcing the materials yourself and assembling the structure.
• Customization: You have complete control over the size, shape, and features of your light table. This allows you to tailor it precisely to your specific needs and workspace. Do you need a large surface for tracing architectural drawings or a compact unit for examining small negatives? The choice is yours.
• Skill Enhancement: The process of building a light table involves basic woodworking, electrical wiring, and assembly skills. This project provides an excellent opportunity to learn new skills and expand your DIY capabilities.
• Personal Satisfaction: There’s a unique sense of accomplishment that comes from creating something with your own hands. Building your own light table is a fulfilling project that you can be proud of.

Materials and Tools You’ll Need

Before you begin, gather all the necessary materials and tools. The specific items may vary slightly depending on the design you choose, but the following list provides a comprehensive overview:

• Table or Desk: This will serve as the base for your light table. You can repurpose an old table, purchase a cheap desk from a thrift store, or even build a simple frame from wood. Aim for a sturdy and stable base.
• Diffuser Panel: This is a crucial component that evenly distributes the light and prevents hotspots. Opt for a white acrylic sheet, frosted glass, or even a sheet of tracing paper stretched over a frame. The key is to find a material that allows light to pass through while minimizing glare.
• Glass or Acrylic Top: This provides a smooth, transparent surface for placing your artwork or slides. Tempered glass is a good choice for its durability, but acrylic is lighter and less prone to shattering. Ensure the glass or acrylic is clean and free from scratches.
• Light Source: Fluorescent lights are a popular choice due to their energy efficiency and even illumination. LED strip lights are another excellent option, offering long lifespan and adjustable brightness. Consider the color temperature of the light source – daylight-balanced bulbs (around 5500K) are ideal for accurate color representation.
• Extension Cord: This provides a convenient way to power your light source. Choose an extension cord with a suitable length and amperage rating.
• Reflective Material: Aluminum foil or reflective tape can be used to line the inside of the light table, maximizing light diffusion and minimizing wasted light.
• Fasteners: Screws, nails, or glue will be needed to assemble the various components. Choose the appropriate fasteners based on the materials you’re using.
• Electrical Switch: This allows you to easily turn the light table on and off.
• Wiring Supplies: Wire connectors, wire strippers, and electrical tape are essential for safely connecting the light source to the power supply.
• Tools: You’ll likely need a saw (for cutting wood), a drill (for creating holes), a screwdriver, a measuring tape, a pencil, and safety glasses.

Step-by-Step Guide to Building Your Light Table

Now that you have gathered your materials and tools, you can begin the construction process. The following steps provide a general outline, but feel free to adapt them based on your specific design and skill level:

1. Prepare the Base: If you’re using an existing table or desk, clean it thoroughly and ensure it’s stable. If you’re building a frame from scratch, cut the wood to the desired dimensions and assemble it using screws or nails. The frame should be sturdy and level.
2. Create the Light Chamber: The light chamber is the enclosed space where the light source will reside. Line the inside of the base with reflective material (aluminum foil or reflective tape) to maximize light diffusion. This will help ensure even illumination across the surface.
3. Install the Light Source: Mount the fluorescent lights or LED strip lights inside the light chamber. Ensure they are securely attached and evenly spaced. Connect the lights to the extension cord and install the electrical switch. Important: If you are not comfortable working with electrical wiring, consult a qualified electrician.
4. Position the Diffuser Panel: Place the diffuser panel on top of the light source. Ensure it covers the entire area where you want the light to be diffused. Secure the diffuser panel in place using screws, tape, or glue.
5. Add the Glass or Acrylic Top: Place the glass or acrylic top on top of the diffuser panel. This will provide a smooth, transparent surface for your artwork or slides. Secure the top in place using clips, tape, or a frame.
6. Test and Adjust: Plug in the light table and turn it on. Observe the light distribution and make any necessary adjustments. If there are hotspots or uneven areas, try adjusting the position of the light source or adding more diffuser material.

Tips and Considerations

Here are some additional tips and considerations to keep in mind as you build your light table:

• Safety First: Always prioritize safety when working with tools and electricity. Wear safety glasses when cutting wood or drilling holes. If you are not comfortable working with electrical wiring, consult a qualified electrician.
• Ventilation: If you’re using fluorescent lights, consider adding ventilation holes to the light chamber to prevent overheating.
• Adjustable Brightness: If you’re using LED strip lights, you can add a dimmer switch to adjust the brightness of the light.
• Portability: If you need a portable light table, consider building a lightweight frame and using battery-powered LED lights.
• Experiment: Don’t be afraid to experiment with different materials and designs to create a light table that perfectly suits your needs.

Applications of a DIY Light Table

Once you’ve built your light table, you’ll discover a wide range of applications for it. Here are just a few ideas:

• Tracing Artwork: A light table makes it easy to trace intricate designs, patterns, and illustrations.

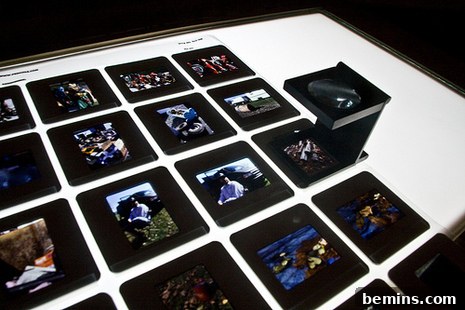

• Examining Slides and Negatives: Inspect photographic slides and negatives with exceptional clarity and detail.
• Screen Printing: Expose photo emulsion for screen printing with consistent and even light.
• Photography Special Effects: Create stunning photography special effects by backlighting objects or using transparent materials.
• Quilting and Sewing: Use the light table to transfer patterns onto fabric for quilting and sewing projects.
• Calligraphy and Lettering: Practice calligraphy and lettering by tracing guidelines and practicing strokes.
• Jewelry Making: Inspect gemstones and intricate jewelry designs with enhanced visibility.

Conclusion

Building your own light table is a rewarding and cost-effective project that can unlock a world of creative possibilities. By following these instructions and using readily available materials, you can create a custom light table that perfectly meets your needs and enhances your artistic pursuits. So, gather your materials, unleash your creativity, and embark on this exciting DIY adventure!
