Edison bulb table lamps offer a unique blend of minimalist design and vintage charm. They serve as excellent accent lights for side tables, bedside tables, or bookshelves. If you’re looking for a simple and satisfying DIY project, this wood-block version of an Edison bulb table lamp is the perfect choice. With basic woodworking skills and a bit of electrical know-how, you can create a stylish and functional lamp that adds character to any room. This comprehensive guide will walk you through each step, ensuring a smooth and enjoyable crafting experience.

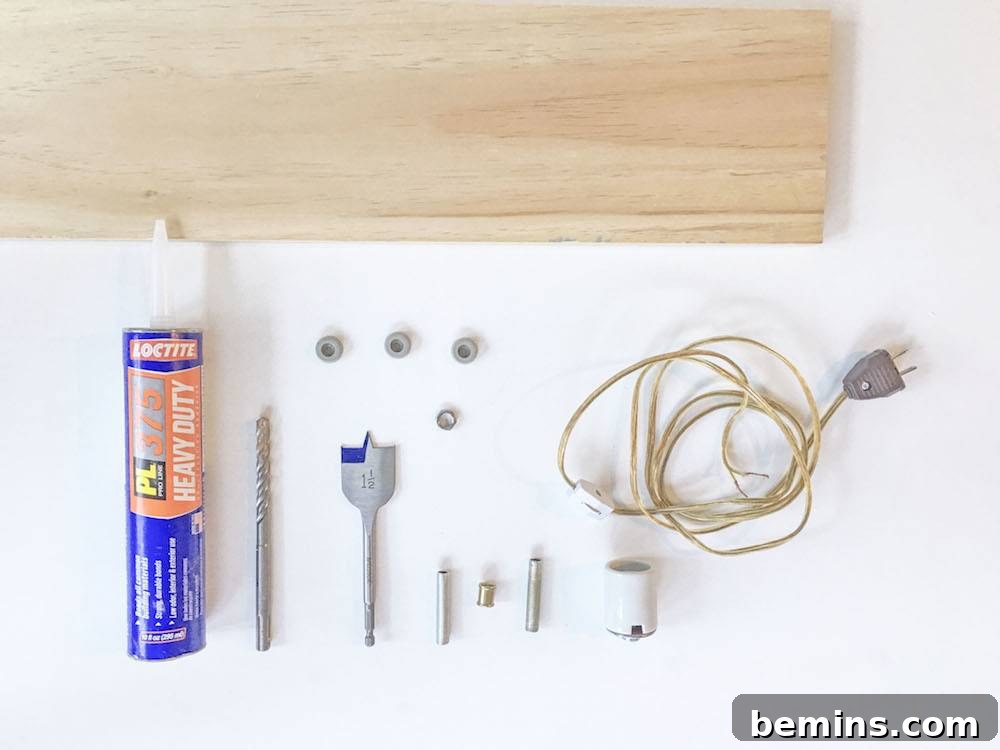

Materials You’ll Need
Before we begin, let’s gather all the necessary materials. Having everything on hand will streamline the process and prevent any frustrating interruptions.
- 2 ft 1X6 board: This will form the base of your lamp. Choose a wood type that complements your decor.
- Drill: Essential for creating the necessary holes for the lamp socket and cord.
- 1 1/2 spade bit: (pictured) Used for creating a recess for the lamp socket.
- 5/8 spade bit: (not pictured) Needed to accommodate the base of the porcelain lamp socket.
- Drill Bit: Choose a size appropriate for drilling a hole for the lamp pipe.
- Loctite Adhesive: (or wood glue) For securely bonding the wood pieces together.
- Porcelain Lamp Socket: (Check out here) The heart of your lamp, providing the electrical connection for the bulb. Ensure it’s compatible with Edison bulbs.
- Lamp Cord: (Recycle from an old lamp or purchase from Amazon) Provides the power source for your lamp. Consider the length you’ll need to reach a power outlet.
- Threaded Lamp Pipe: (Available at Lowes) Connects the socket to the base. The length depends on the dimensions of your wood block.
- Rubber feet: (small rubber furniture pads) (3-4) Prevents scratching and provides stability.
- Screwdriver: (small Phillips) For installing the light fixture.
- Miter Saw: Used for precise and angled cuts on the wood block.
- Sander or Sandpaper: For smoothing the wood surfaces and edges.
- Wood Clamps: To securely hold the wood pieces together while the glue dries.
- Hot glue or Super Glue: (unless your furniture pads have adhesive) For attaching the rubber feet.
- Stain or paint: (optional) To customize the look of your lamp.
Step-by-Step Guide to Crafting Your Edison Bulb Table Lamp
Now that we have our materials ready, let’s dive into the construction process. Follow these steps carefully to create your own unique Edison bulb table lamp.
Step 1: Cutting the Wood Pieces

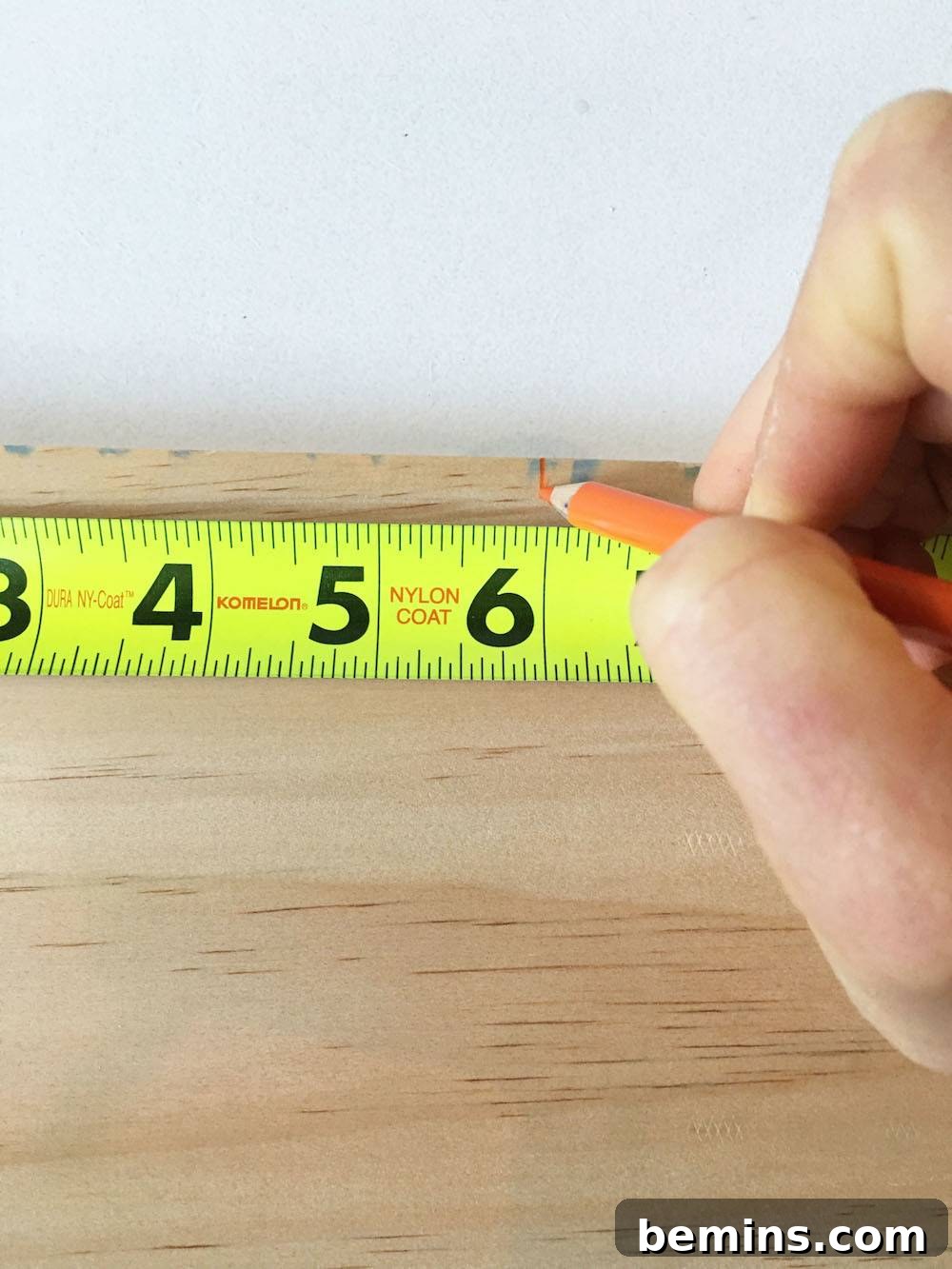

Start by measuring and marking your 1X6 board every 6 inches. This will give you four equal squares that will form the base of the lamp.

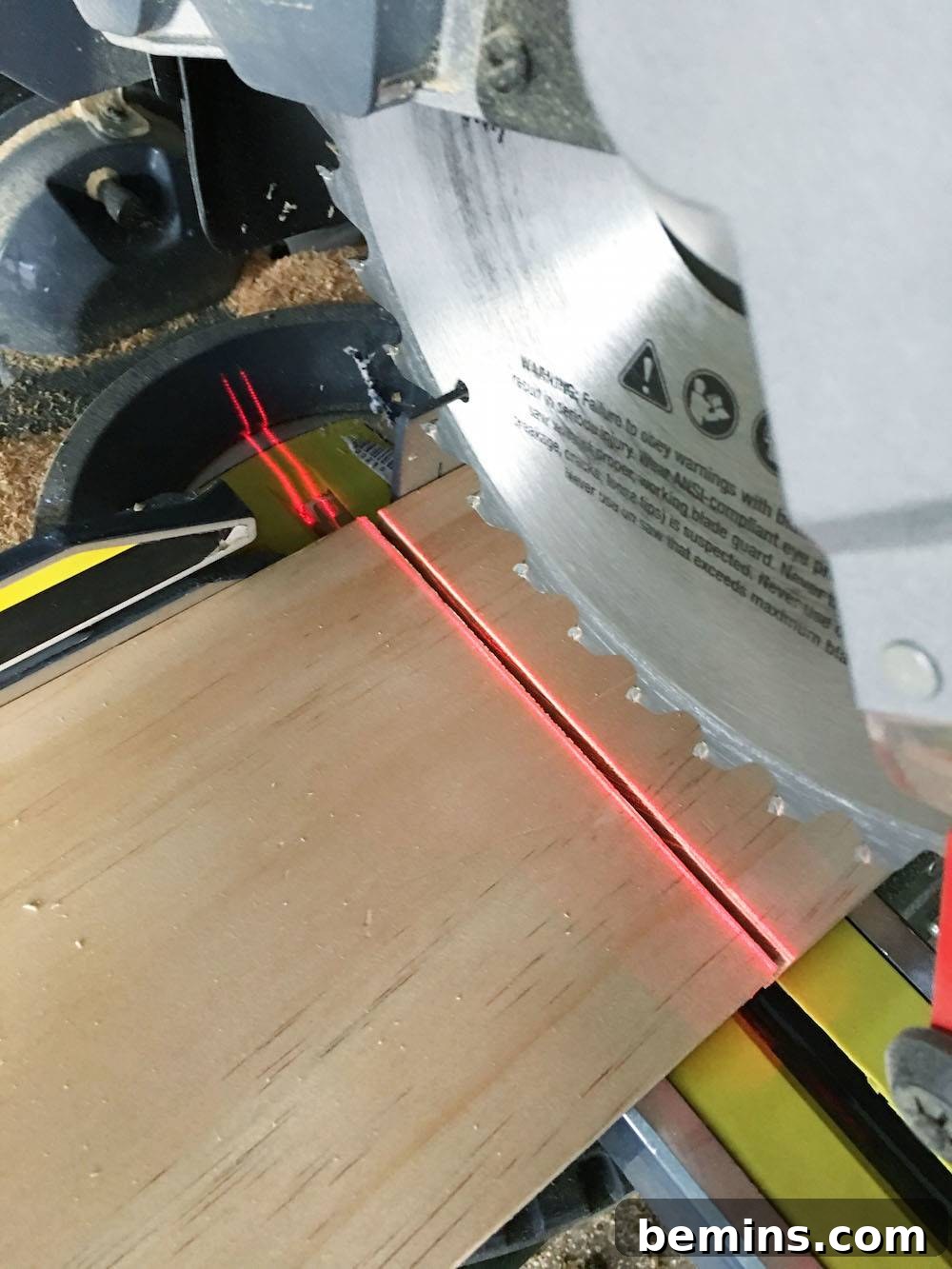

Step 2: Creating the Squares

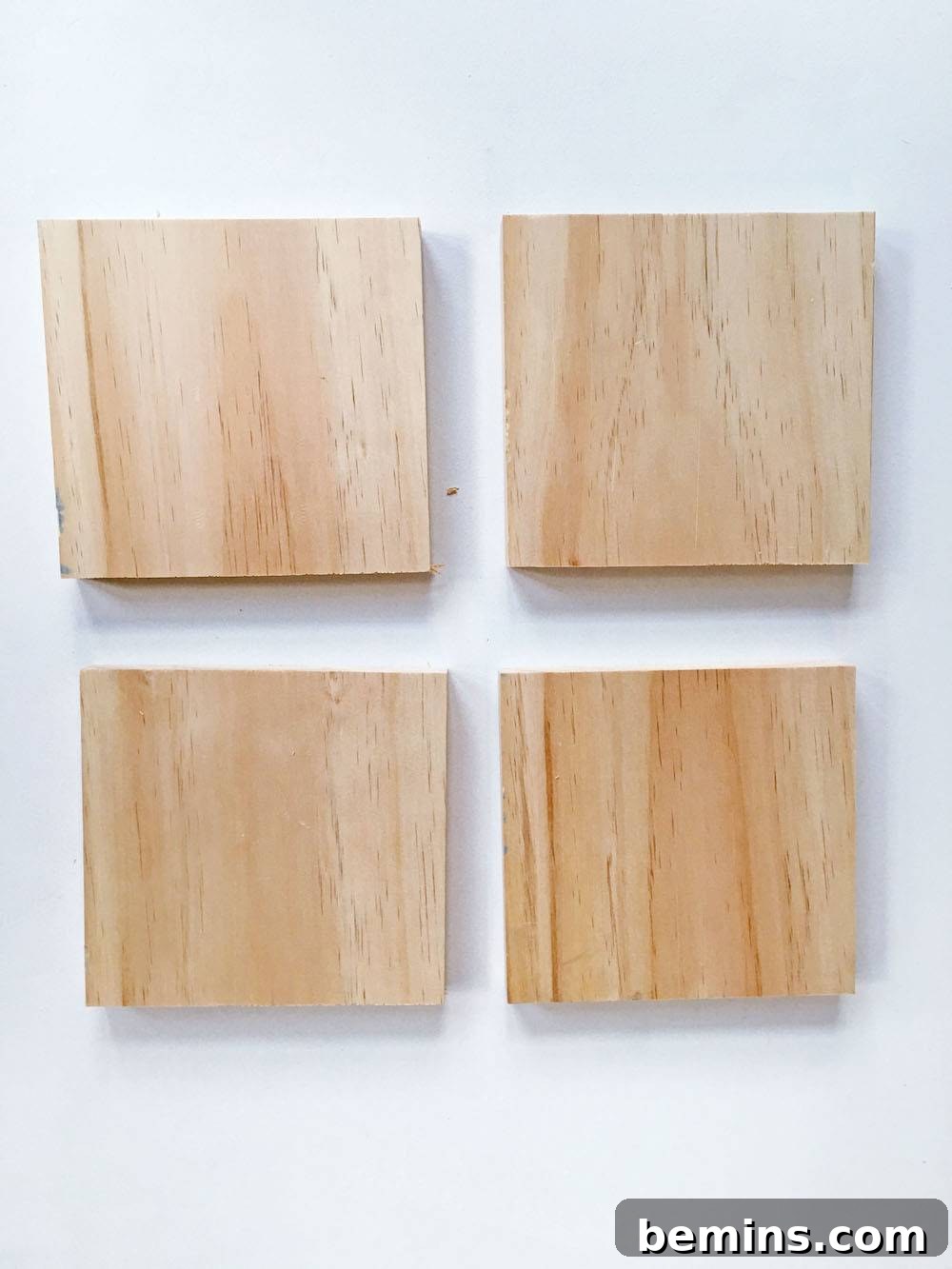

Using your miter saw, carefully cut the board into four 6-inch squares. Ensure that your cuts are straight and accurate for a clean and professional finish.

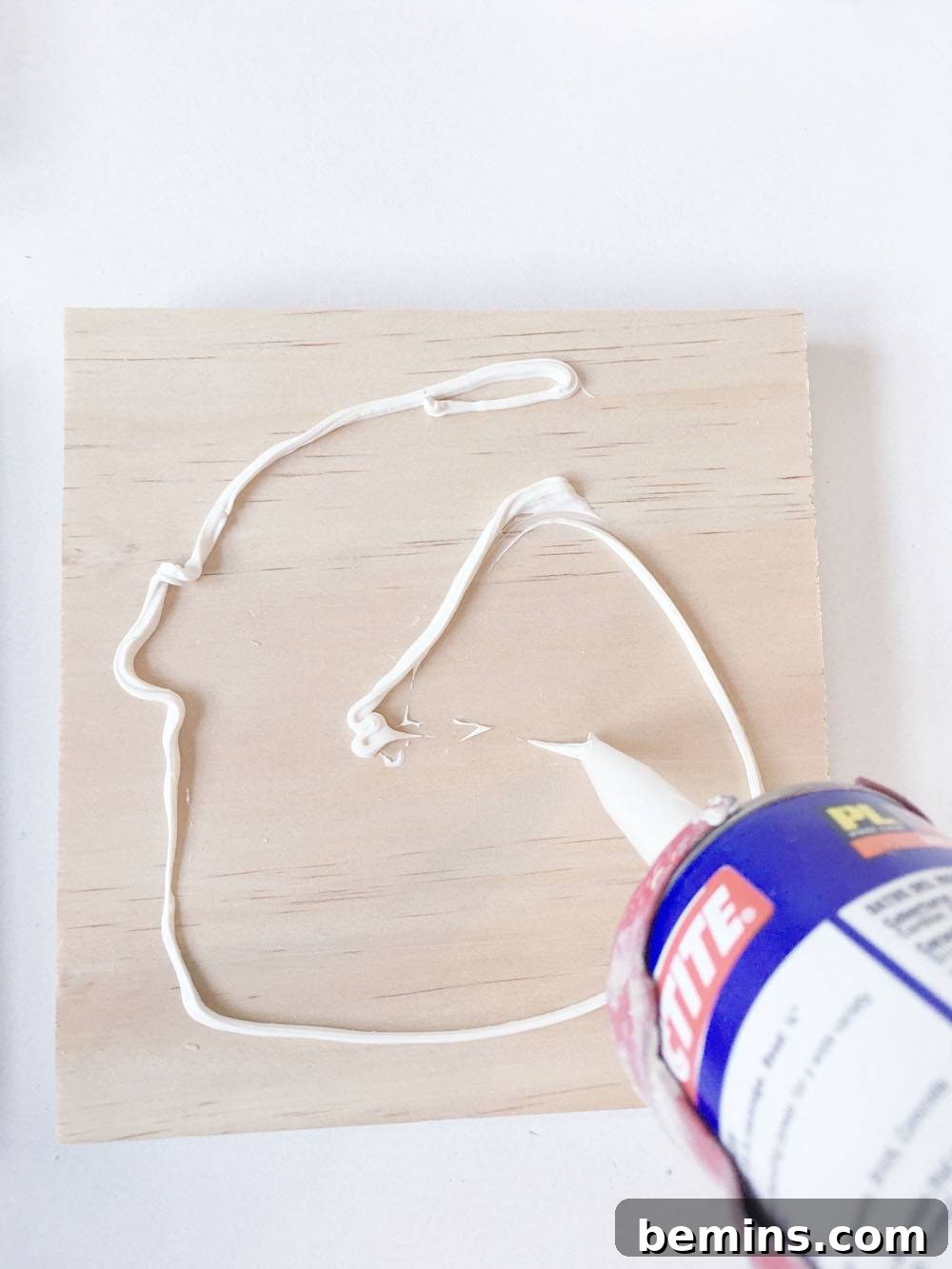

Step 3: Gluing and Clamping the Wood Block

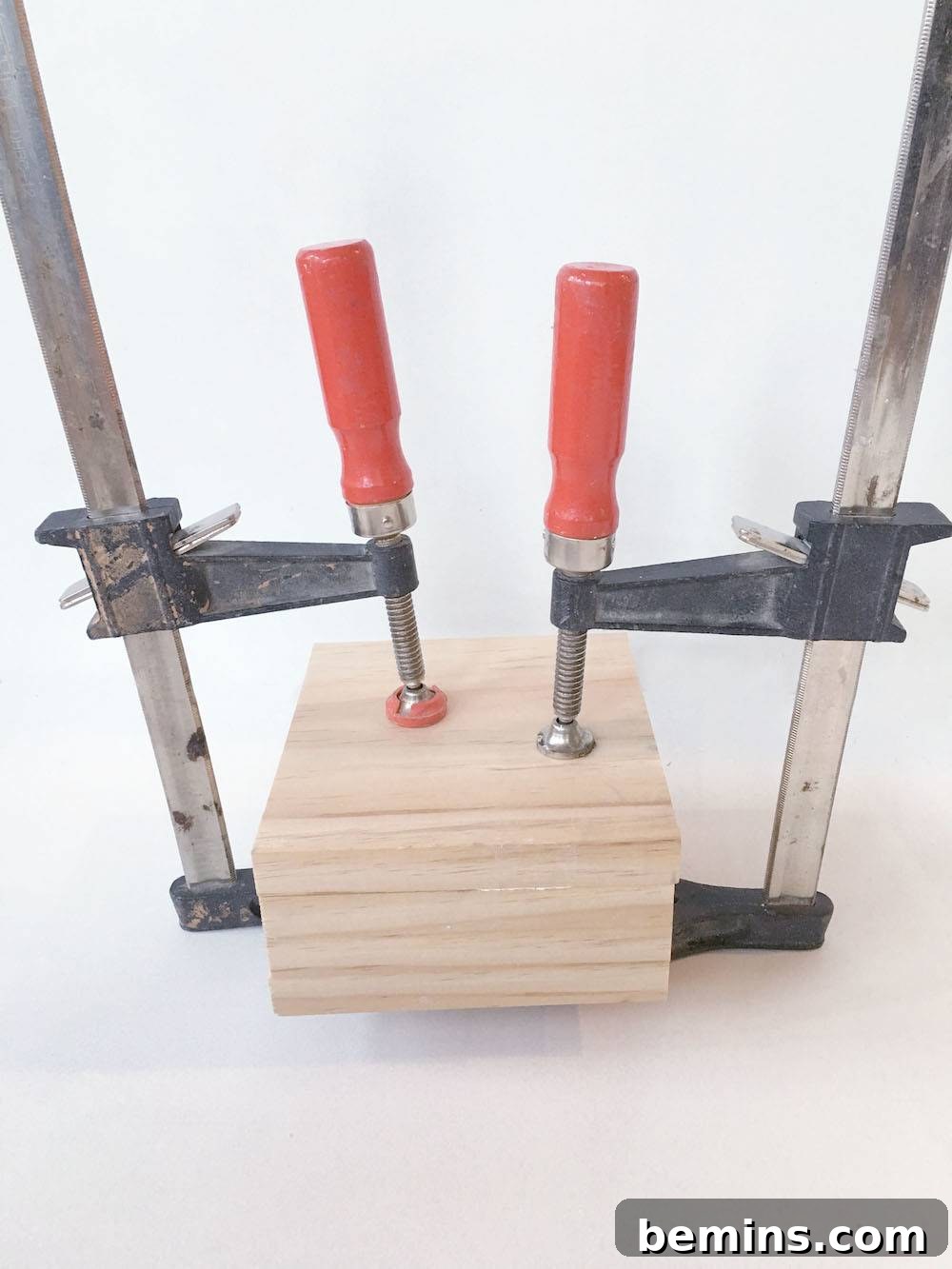

Apply Loctite adhesive (or wood glue) to the faces of the four squares and carefully stack them together to form a solid block. Use wood clamps to hold the pieces firmly in place while the glue dries. This ensures a strong and durable bond.
Let the wood block dry completely according to the adhesive manufacturer’s instructions. If the edges of the wood pieces don’t align perfectly, don’t worry. You can easily fix this in the next step with your miter saw.
Step 4: Trimming Uneven Sides (Optional)
If necessary, use the miter saw to clean up any uneven sides of the wood block. This will give your lamp a more polished and professional appearance.

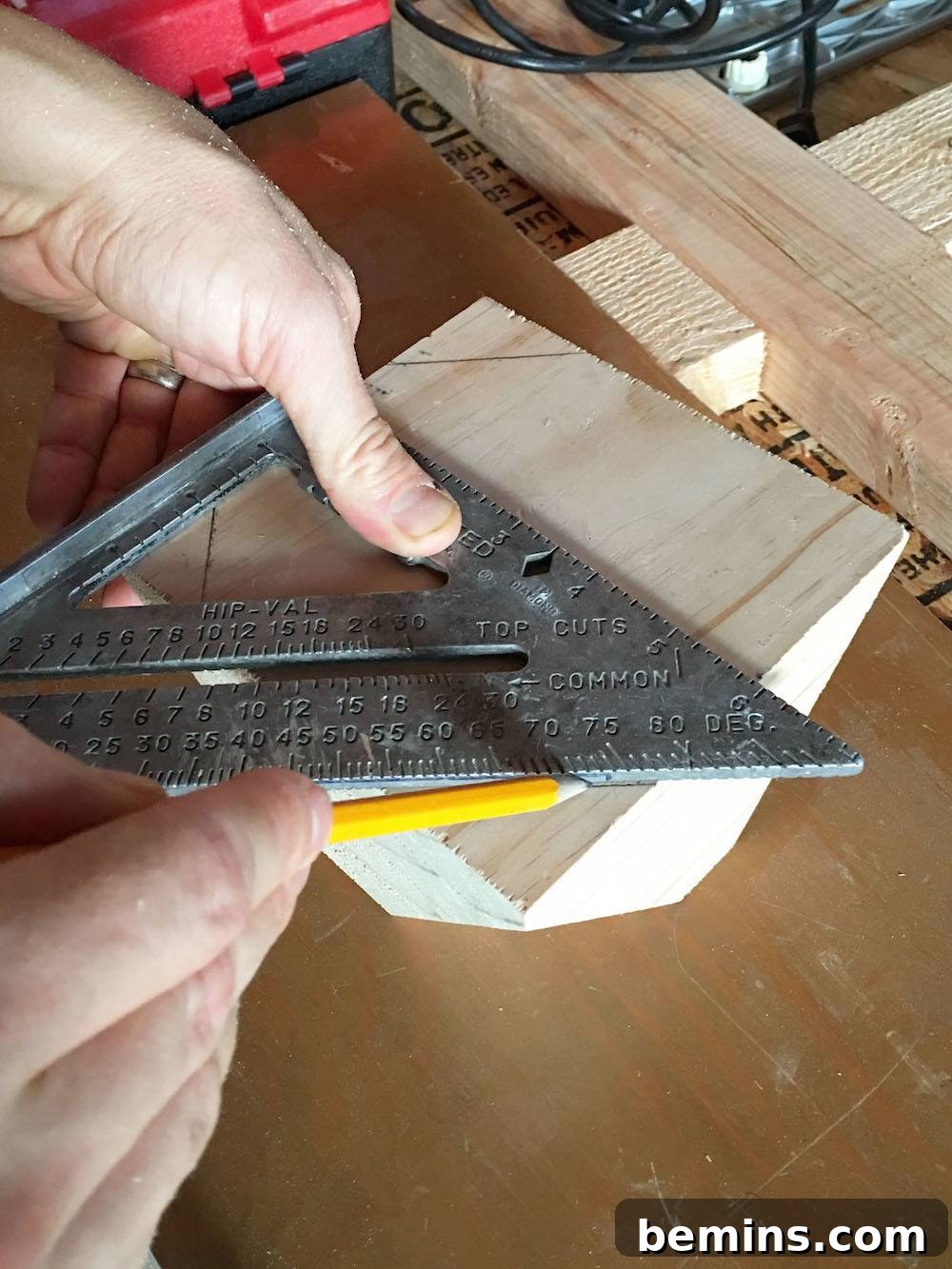

Step 5: Marking the Corners

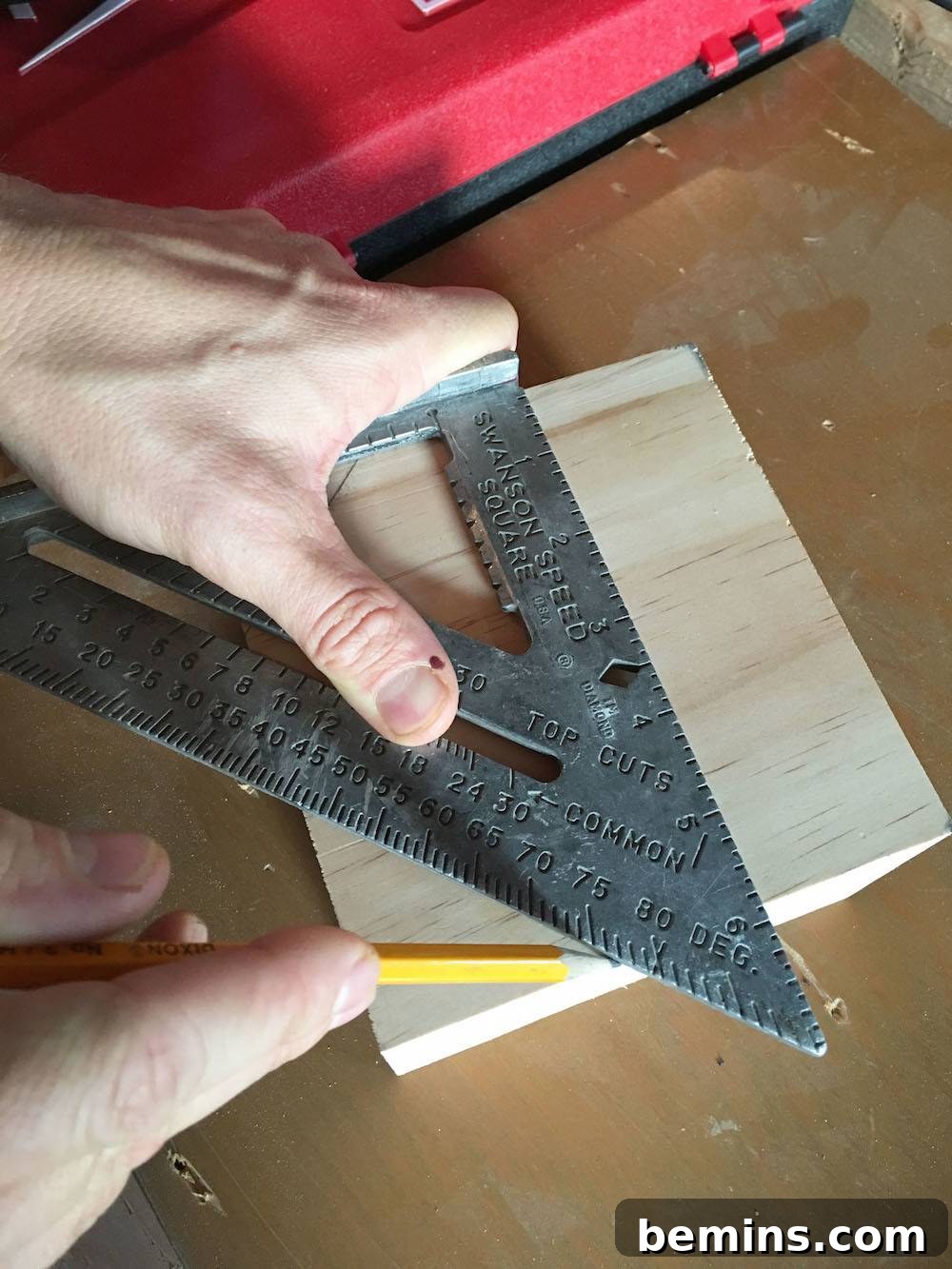

After trimming (if needed), use a ruler to make marks on the corners of the wood block. These marks will guide your angled cuts. The placement of these lines doesn’t need to be symmetrical or perfect; feel free to draw them at random for a more unique look.

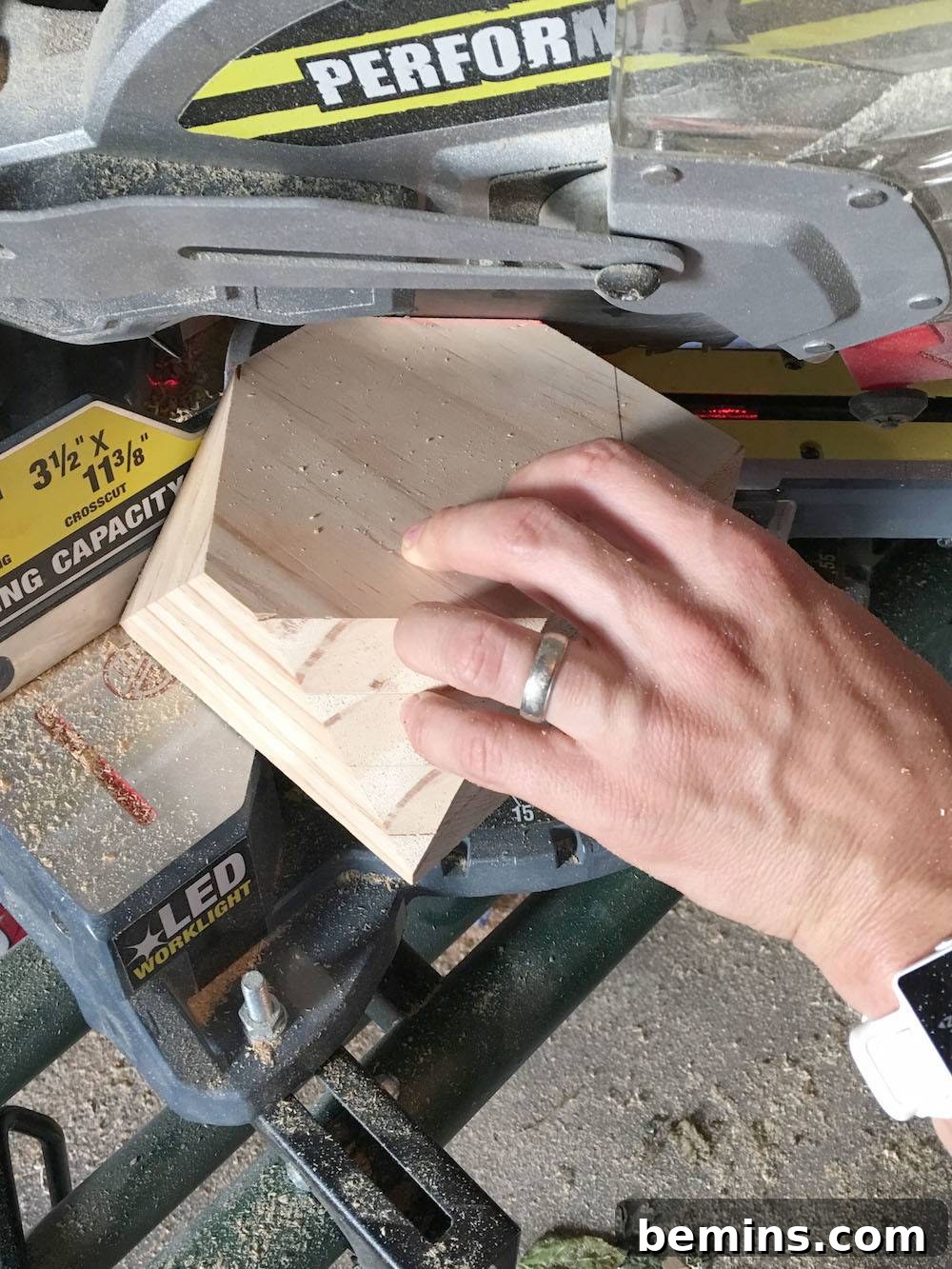

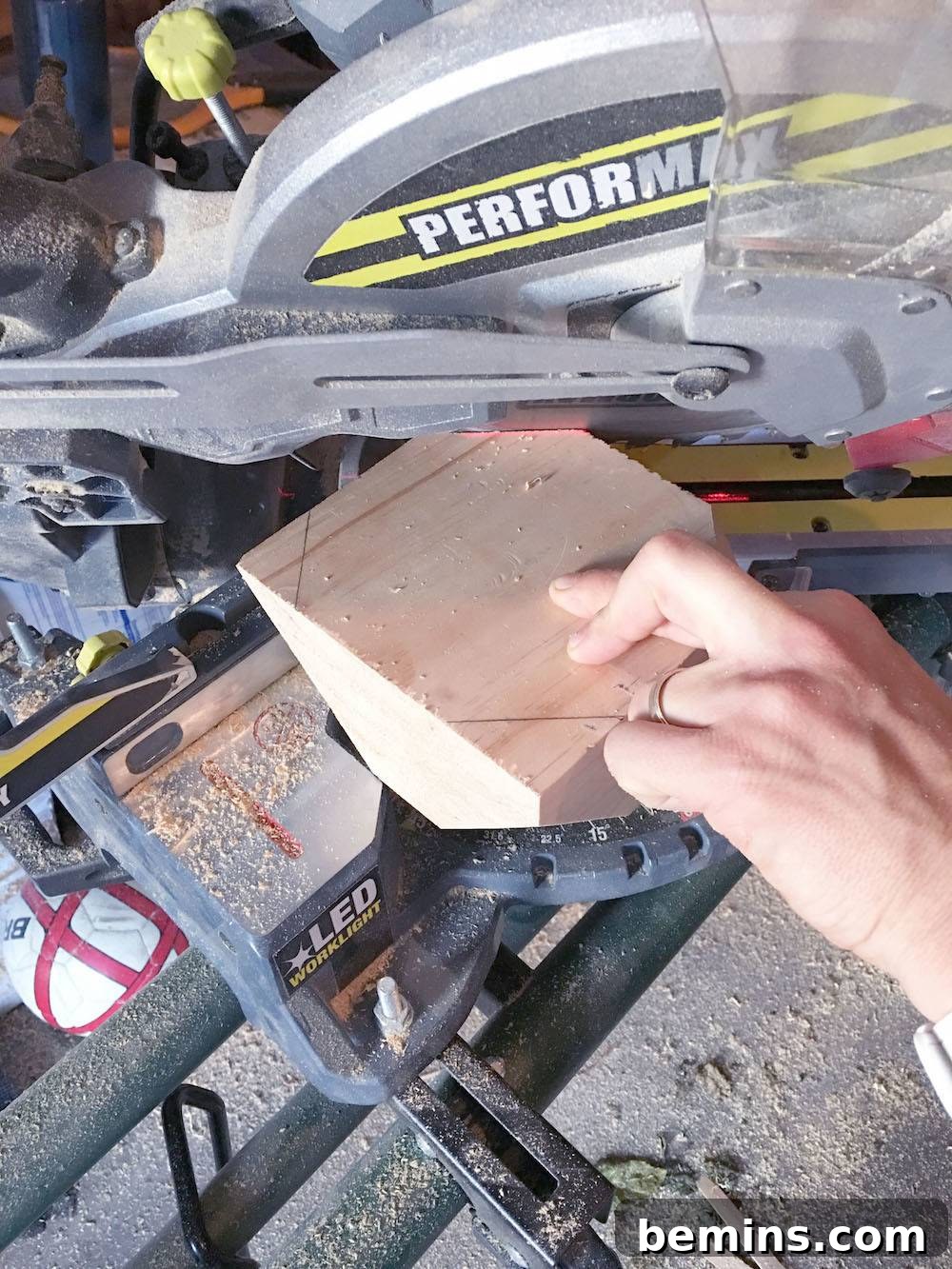

Step 6: Cutting the Angled Edges

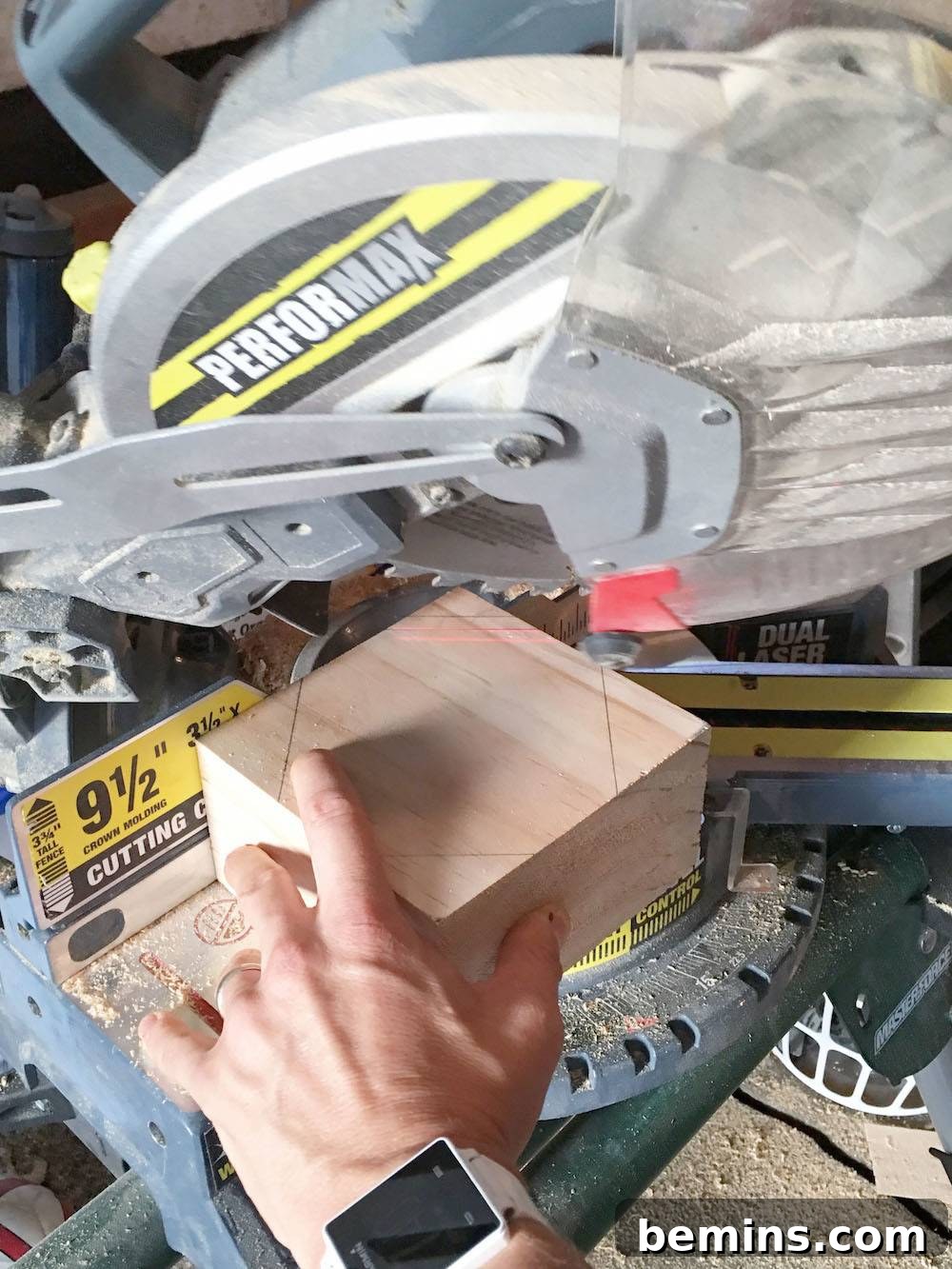

Set your miter saw at an angle (around 15 degrees is a good starting point, but feel free to experiment with different angles). Put on your safety goggles and carefully cut along the marked lines. Remember, any angle will work, so don’t be afraid to get creative.
Step 7: Repeat on the Opposite Side
Flip your wood block over and repeat steps four and five on the opposite side. Again, use different degrees of angles to create a more dynamic and interesting shape.

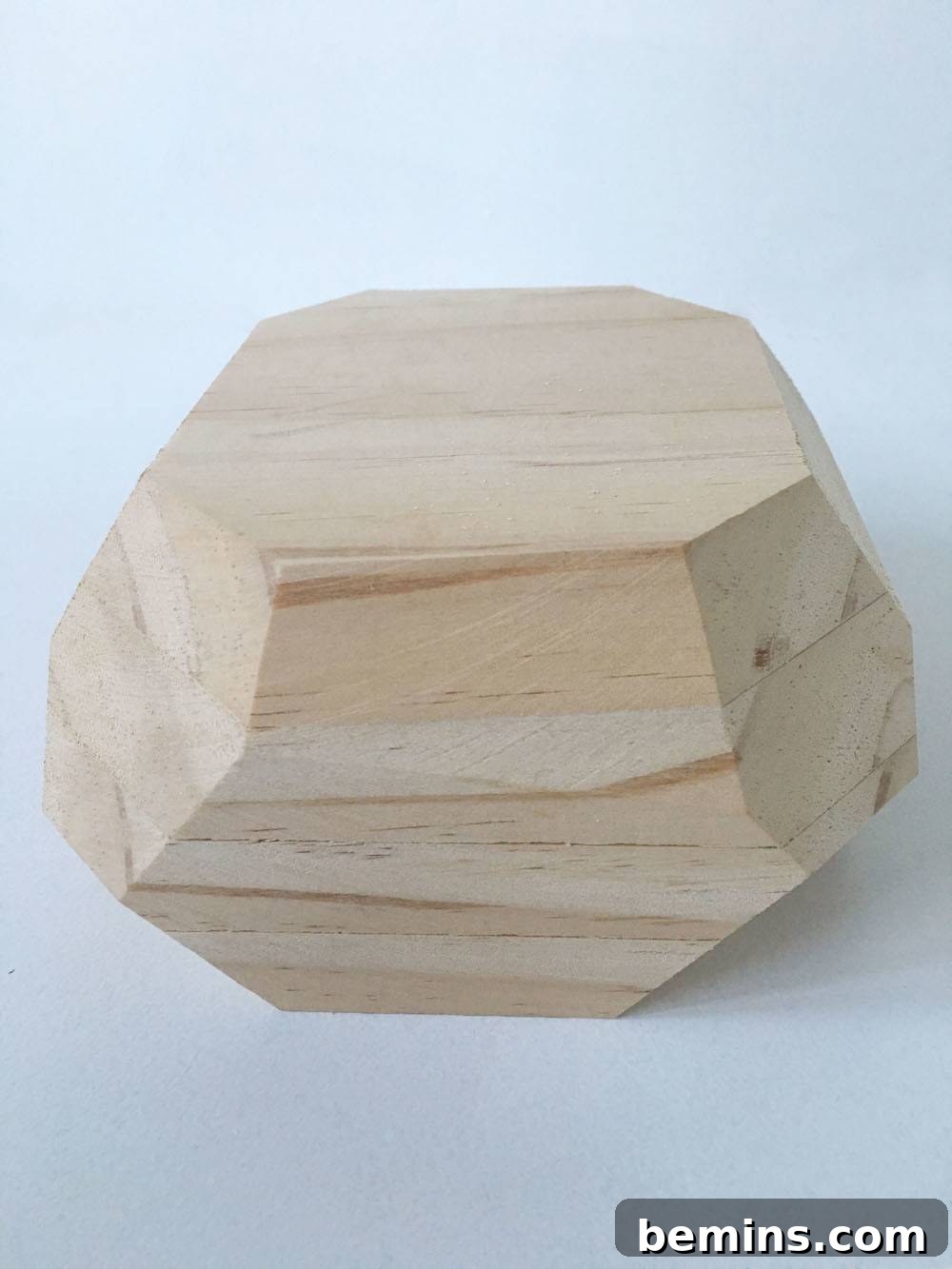

Step 8: Sanding the Wood Block

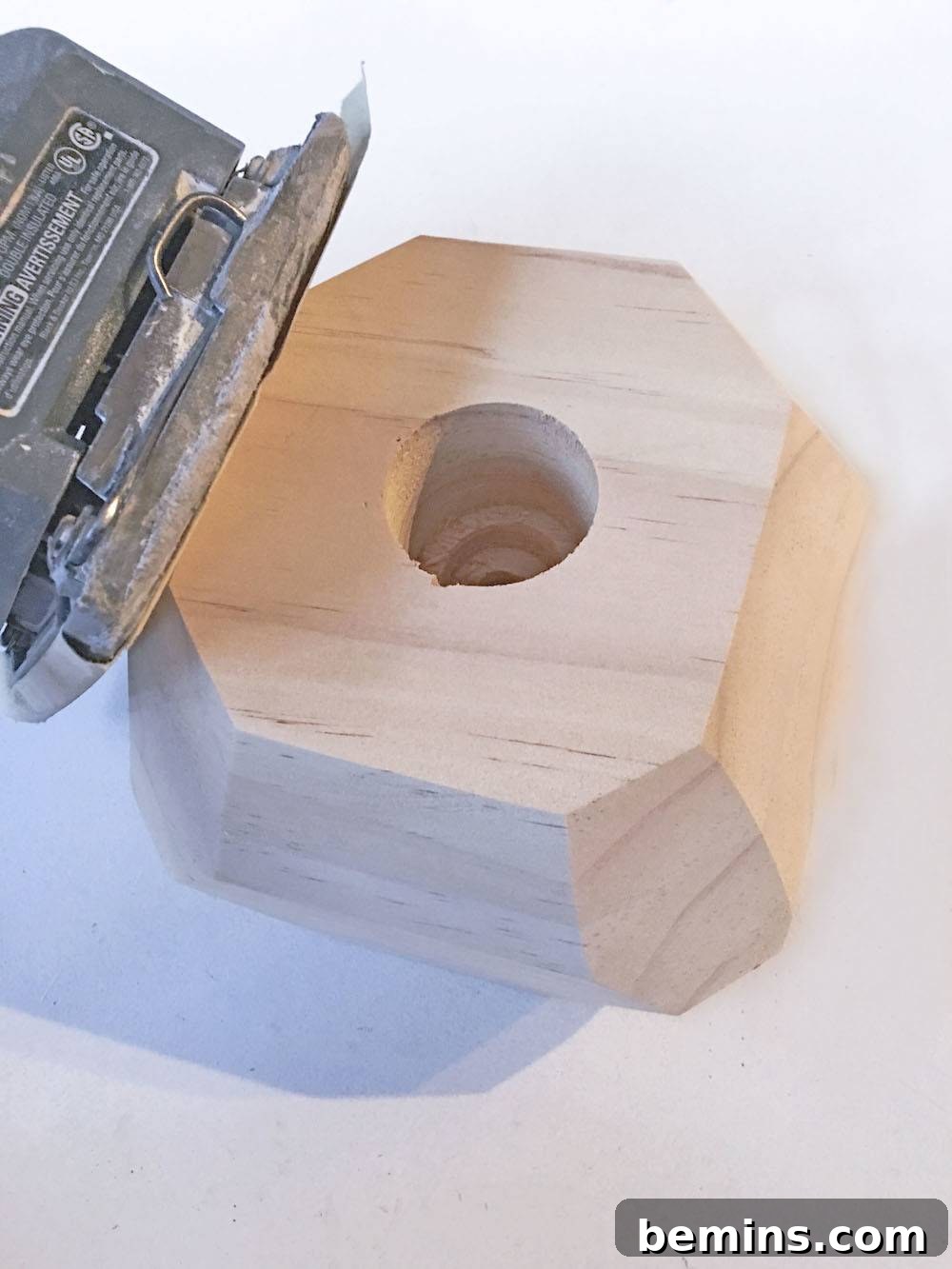

Once you’re satisfied with the shape of your wood block, it’s time to sand it smooth. Use a sander or sandpaper to remove any rough edges or splinters. This will give your lamp a more refined and comfortable feel. Ideally, sand the block before drilling any holes, as drilling first can sometimes make the holes slightly off-center.

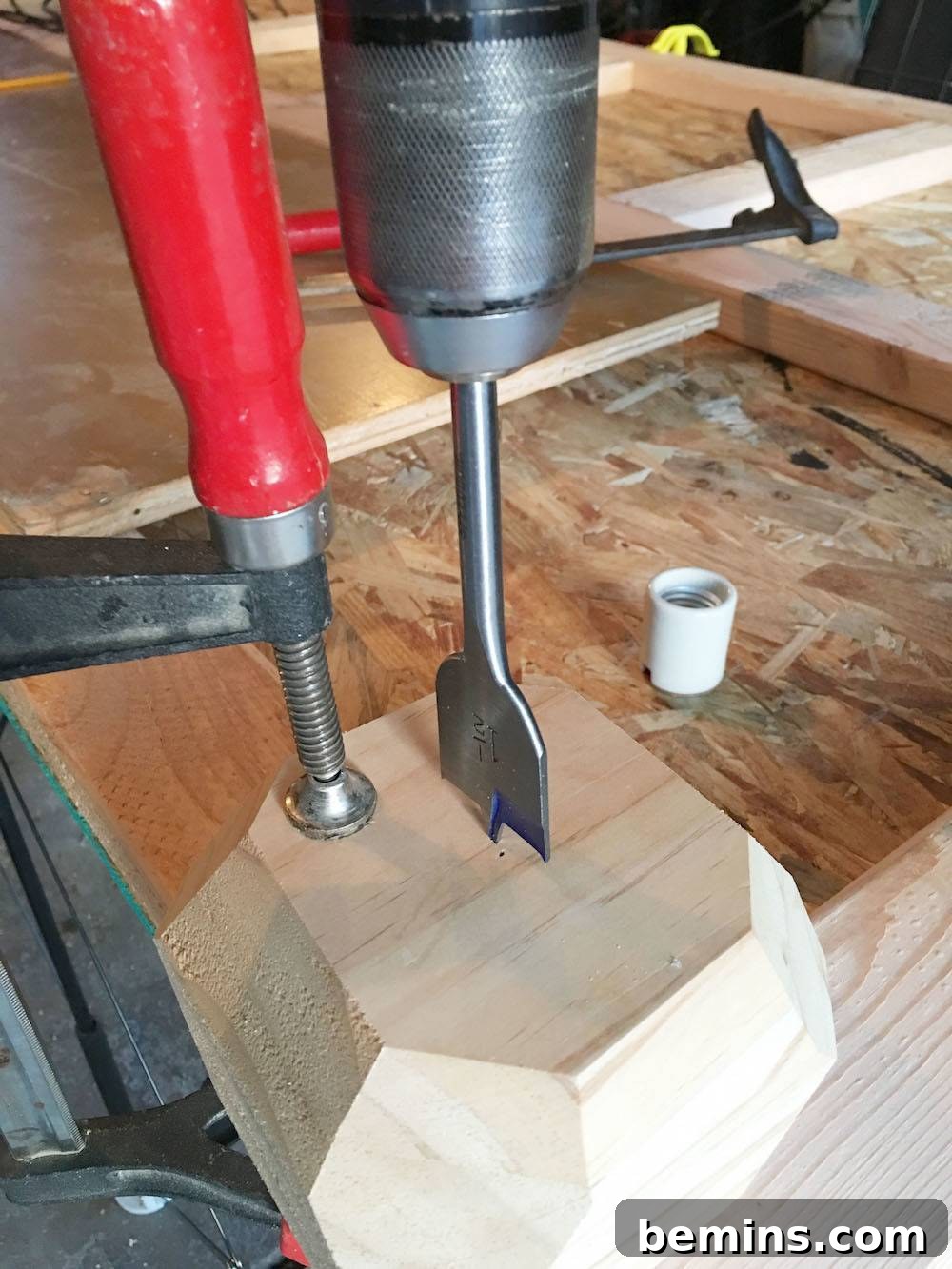

Step 9: Drilling the Socket Recess

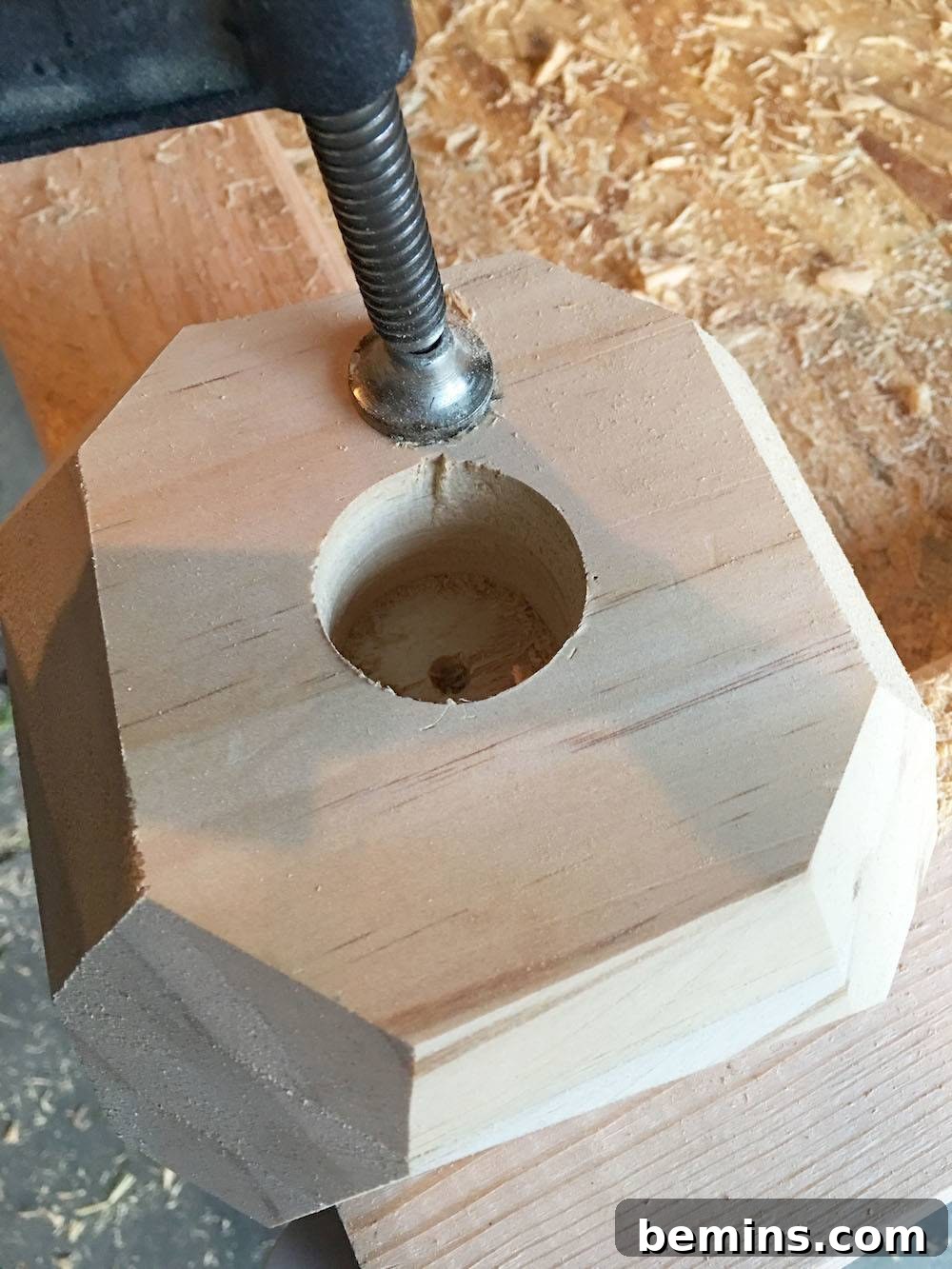

Using the 1 1/2 inch spade bit, drill a hole into the top of the wood block to create a recess for the porcelain lamp socket. The depth of the hole will depend on how much of the socket you want to be visible above the block. Measure the socket and drill incrementally, checking the fit frequently, until you achieve the desired look.

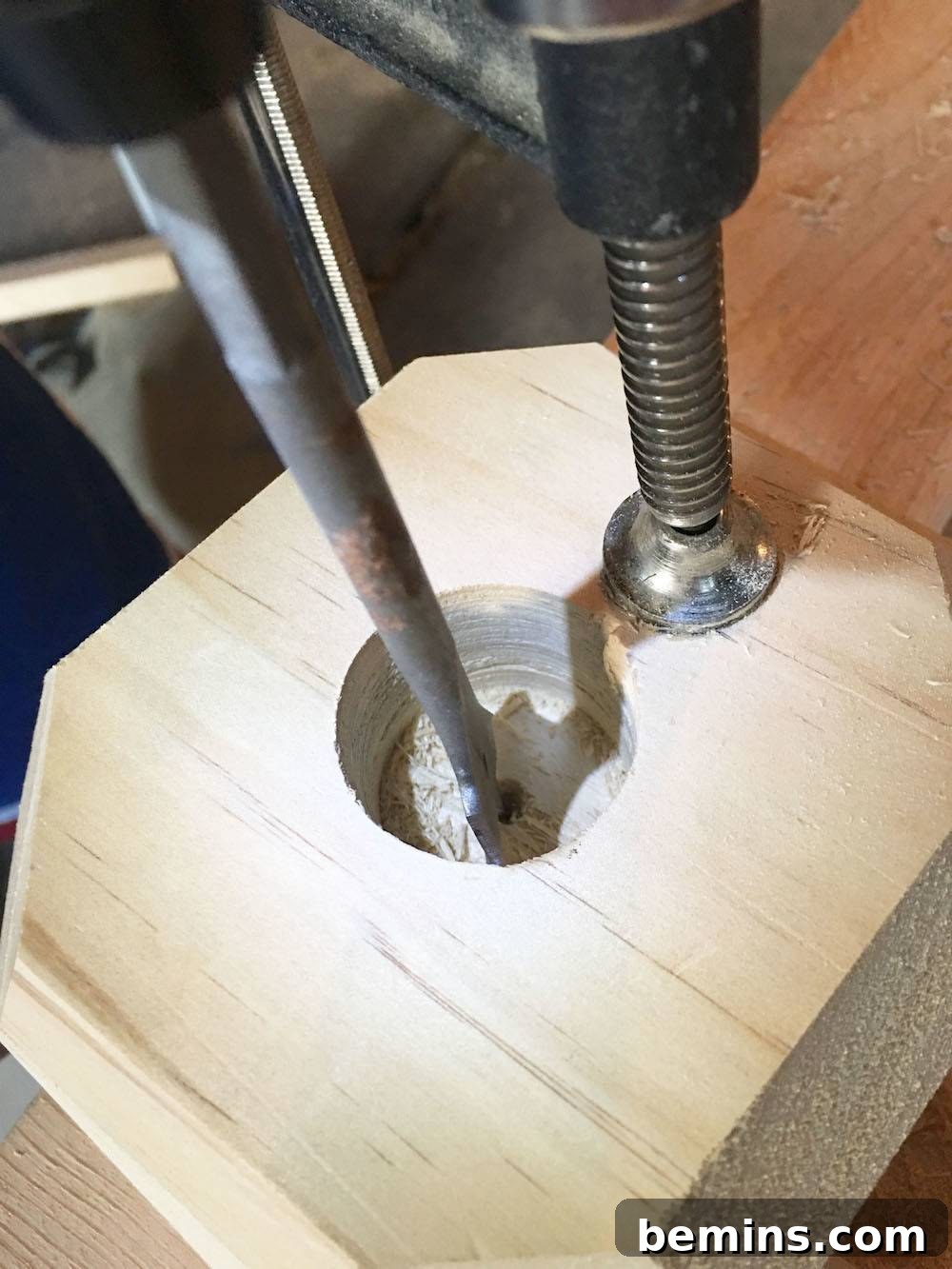

Step 10: Drilling for the Socket Base

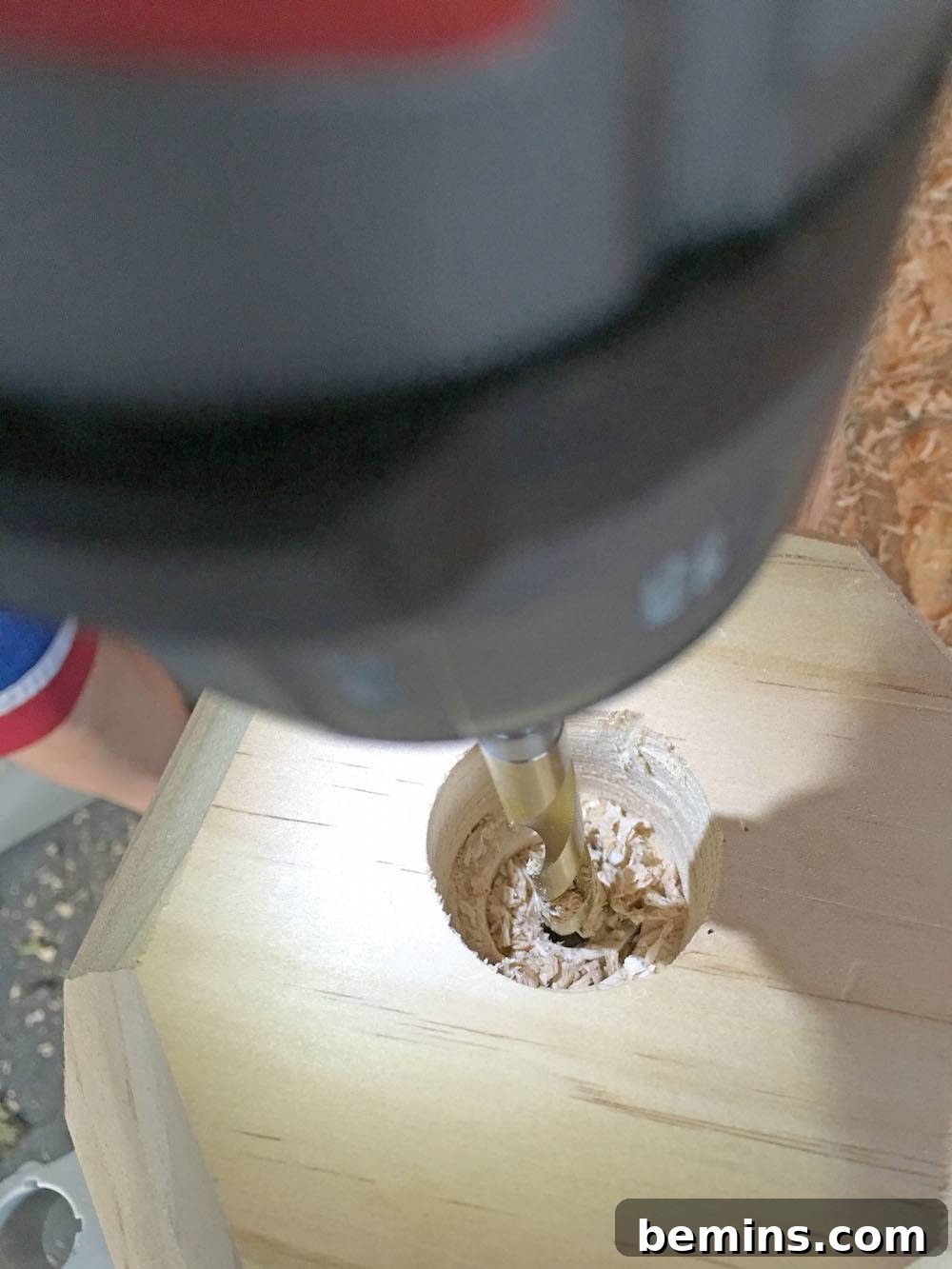

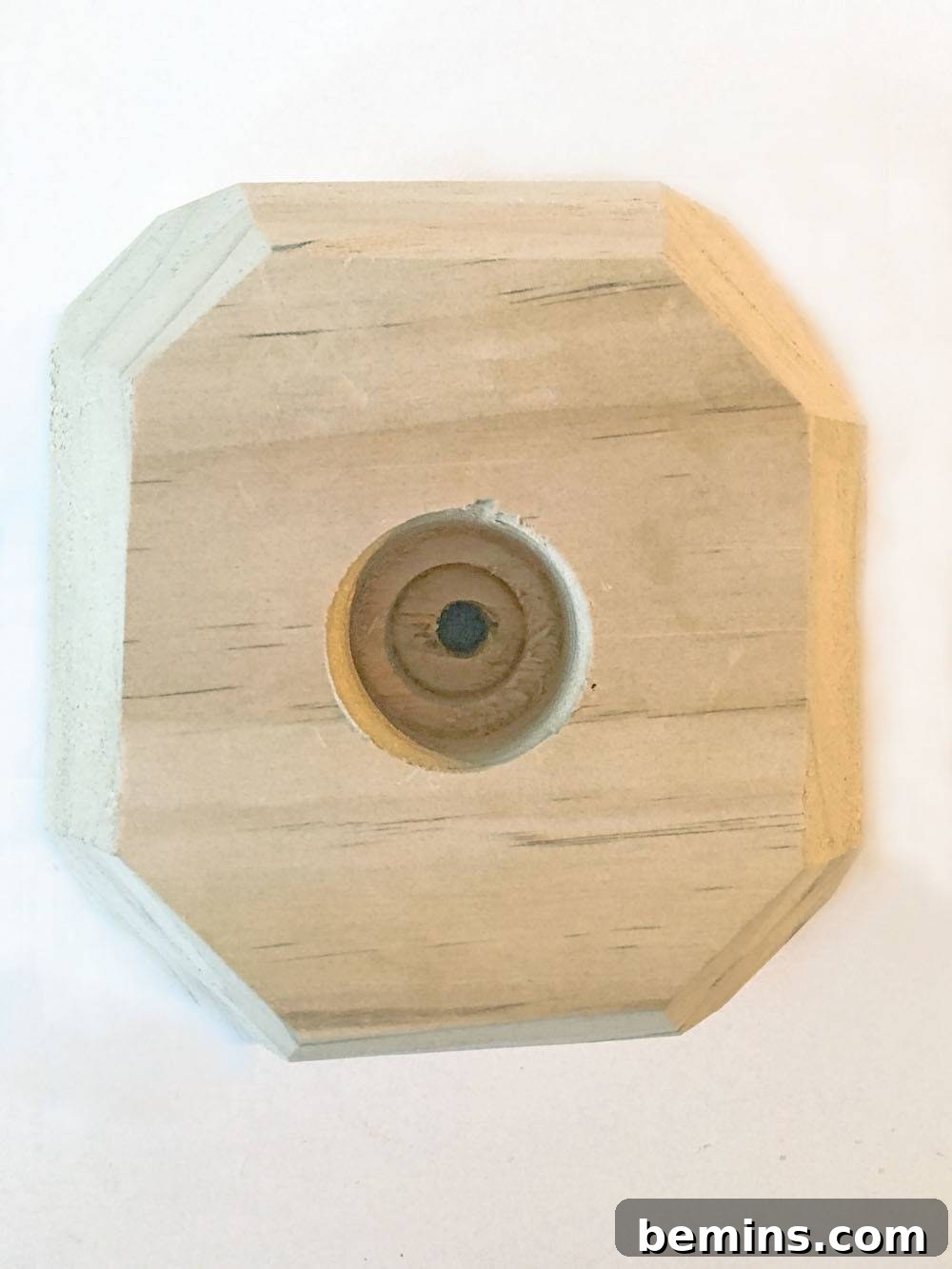

You might notice that the bottom of the porcelain light socket has a screw to hold the threaded cord secure and that the part you screw the lamp socket into is slightly larger than the lamp pipe. To accommodate this, use the 5/8 inch spade bit to drill a shallower hole at the bottom of the recess. This will allow the base of the socket to sit flush with the top of the wood block.
Drill and check the fit repeatedly until the socket sits securely in place.
Step 11: Drilling for the Lamp Pipe
Now, drill a hole completely through the wood block for the threaded lamp pipe to pass through. Use a drill bit that is slightly larger than the diameter of the lamp pipe.
Step 12: Disassembling the Socket

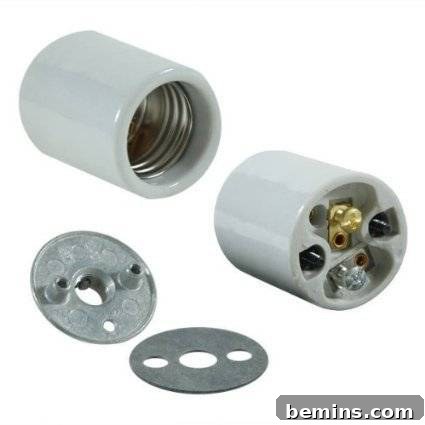

Take apart your porcelain socket to prepare for wiring. The image above shows the front and back sides of a typical socket.
Step 13: Assembling the Lamp (Critical Step!)
Before you connect the lamp cord to the socket, you need to slide the following components, in this specific order, over the cord:
- Locking nut
- Wood block (from the bottom up, with the locking nut underneath)
- Threaded lamp pipe
- Metal bottom part of the porcelain socket
- Insulation piece of porcelain socket (placed between the installed socket and the bottom part)
This step is crucial! If your lamp cord already has a plug attached, you’ll need to thread everything on in reverse order before wiring the socket. It might seem confusing now, but reading through the following steps will help you understand how everything fits together, making this step easier.

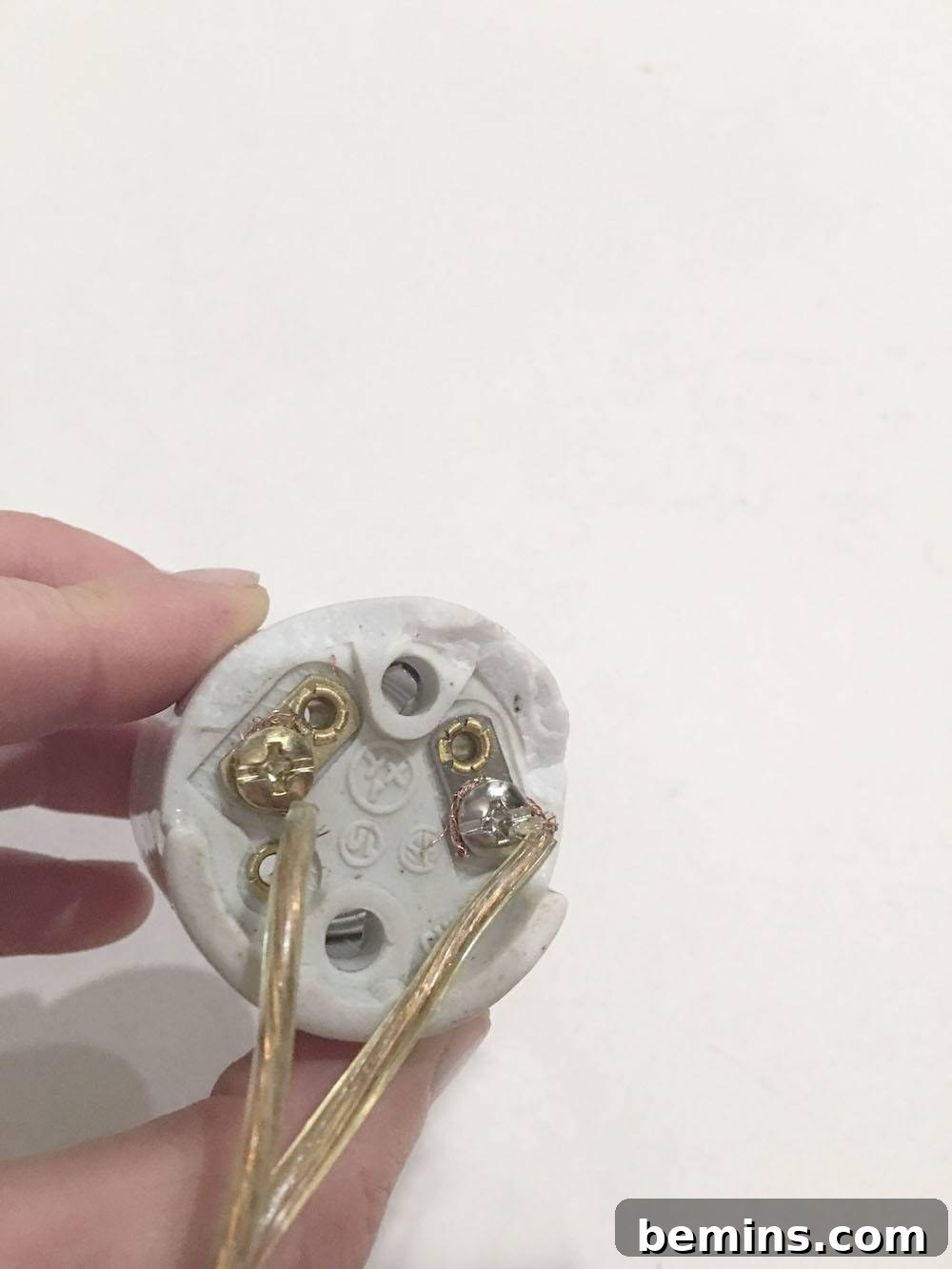

Step 14: Wiring the Socket
Connect the lamp cord to the bottom of the lamp socket, following the instructions provided with your socket kit. Typically, the ribbed cord is the neutral (white) wire, and the smooth cord is the hot (black) wire. The neutral wire usually connects to the silver screw, and the hot wire connects to the gold screw. However, always refer to your socket’s instructions for specific guidance.
Slide the insulation layer and the bottom part of your socket up the lamp cord and re-attach them to the socket. (These parts often re-attach with screws from the inside of the socket).

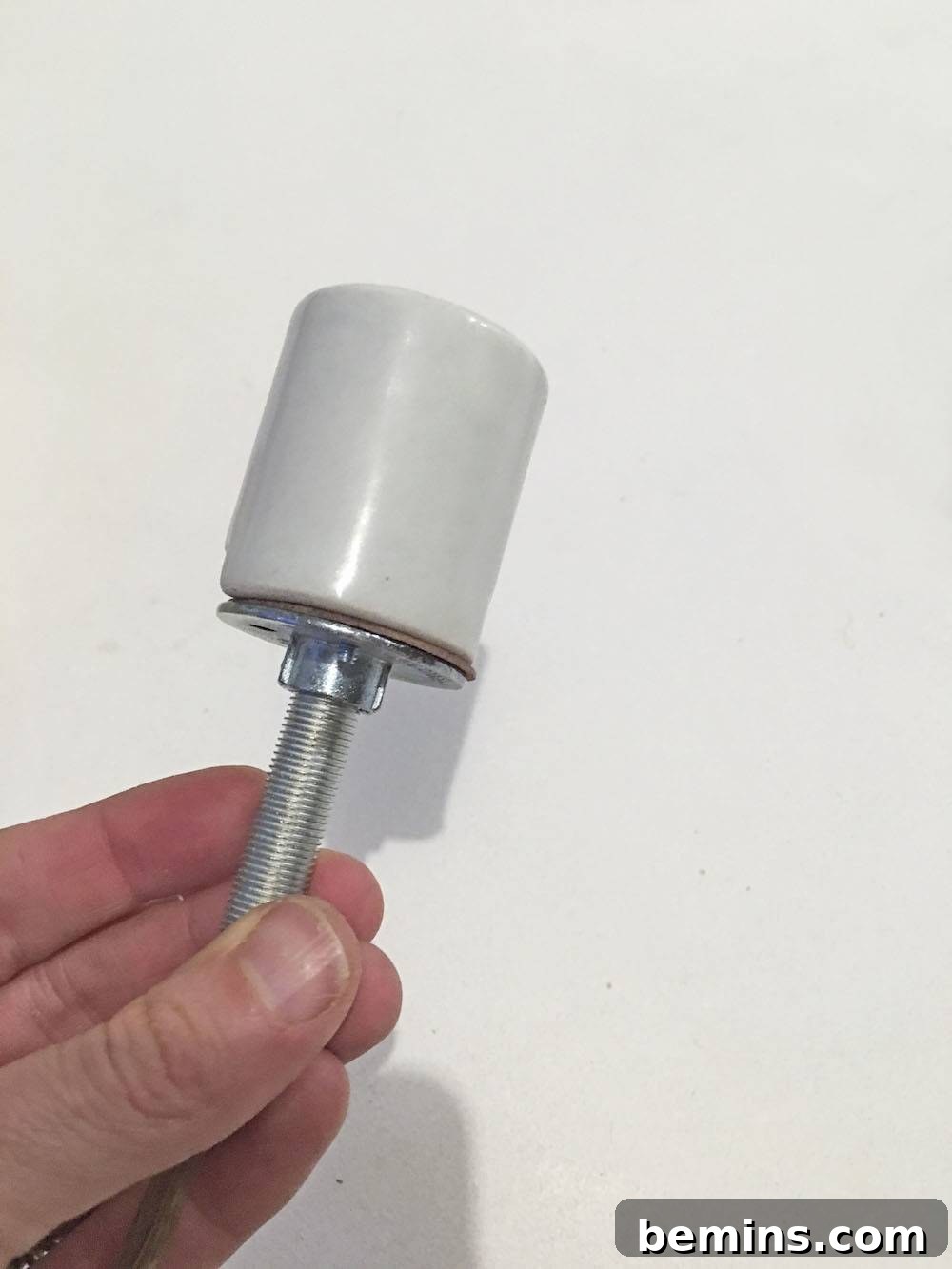

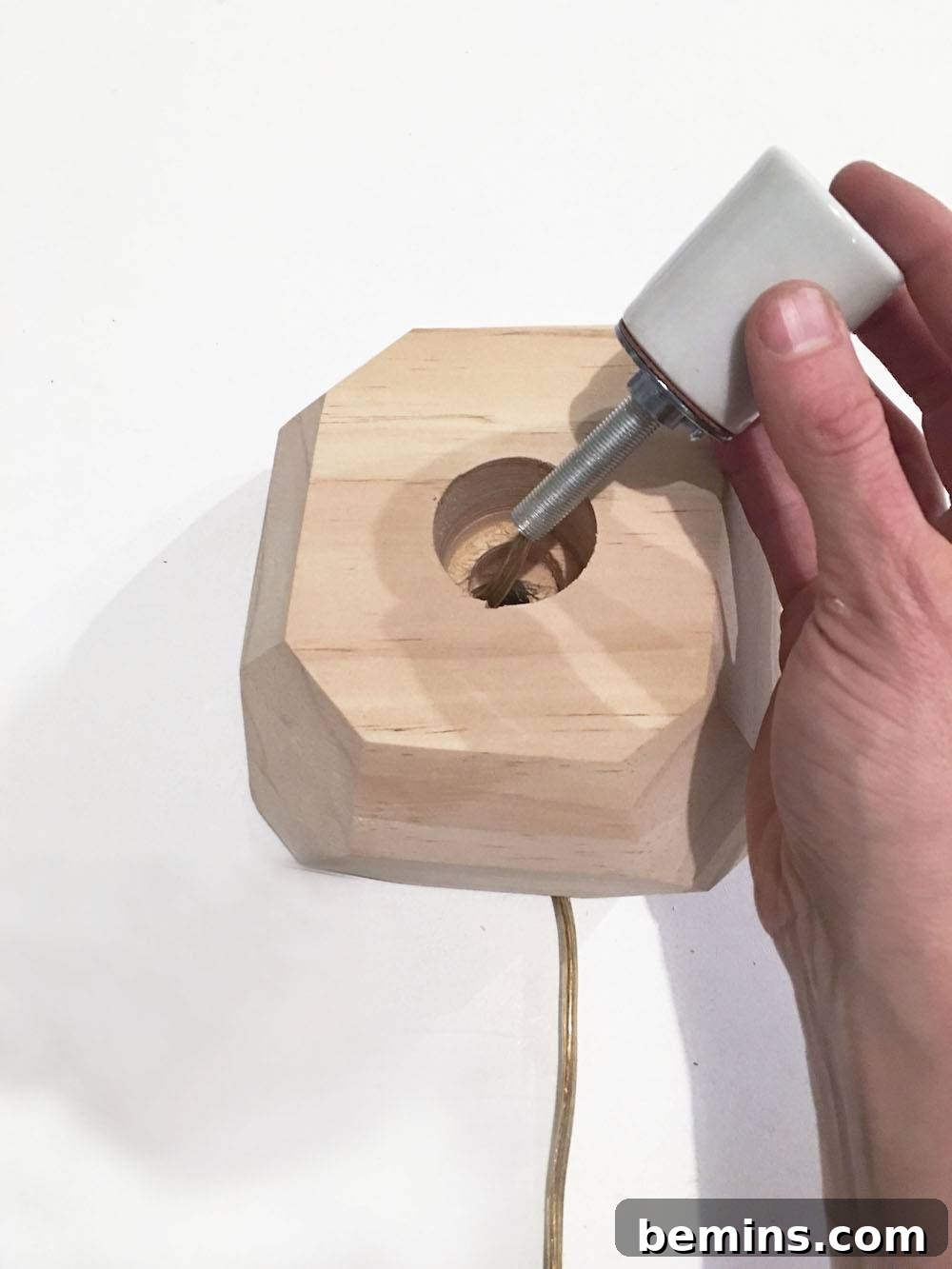

Screw the lamp pipe into the bottom of the lamp socket and tighten the locking screw to secure it. Remember, because of step 13, the cord should already be threaded through everything as you assemble it.
Step 15: Pulling the Cord Through
Gently pull the cord from the bottom of the wood block to draw the lamp pipe and cord completely through the hole.
Step 16: Securing the Cord

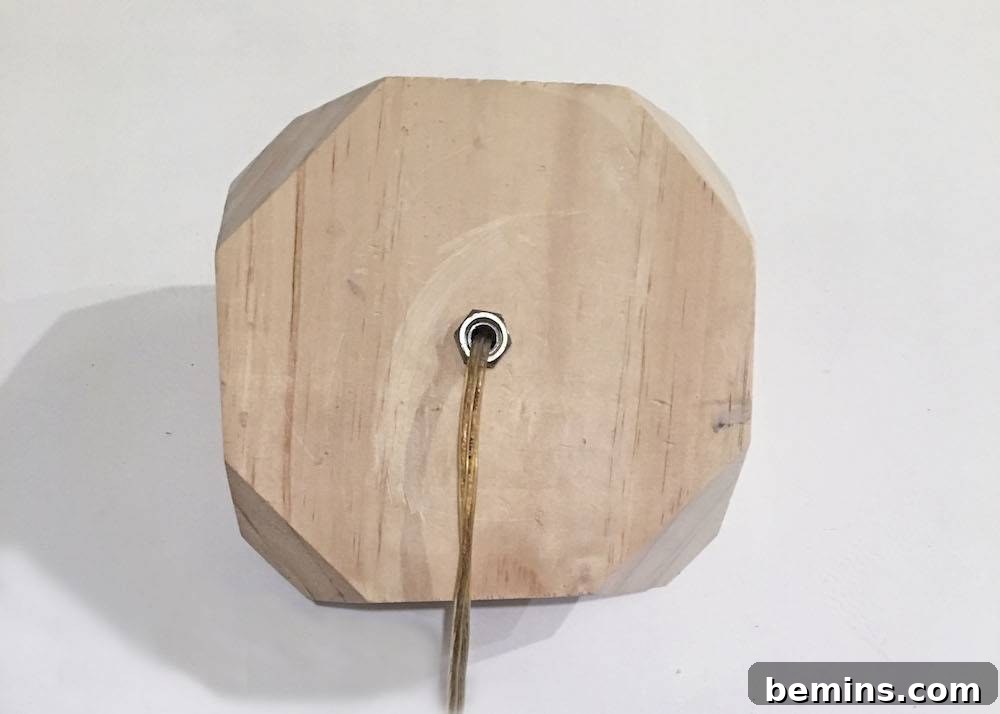

Screw the locking nut onto the bottom of the threaded lamp pipe to secure the cord and prevent it from being pulled out.
Step 17: Attaching the Rubber Feet

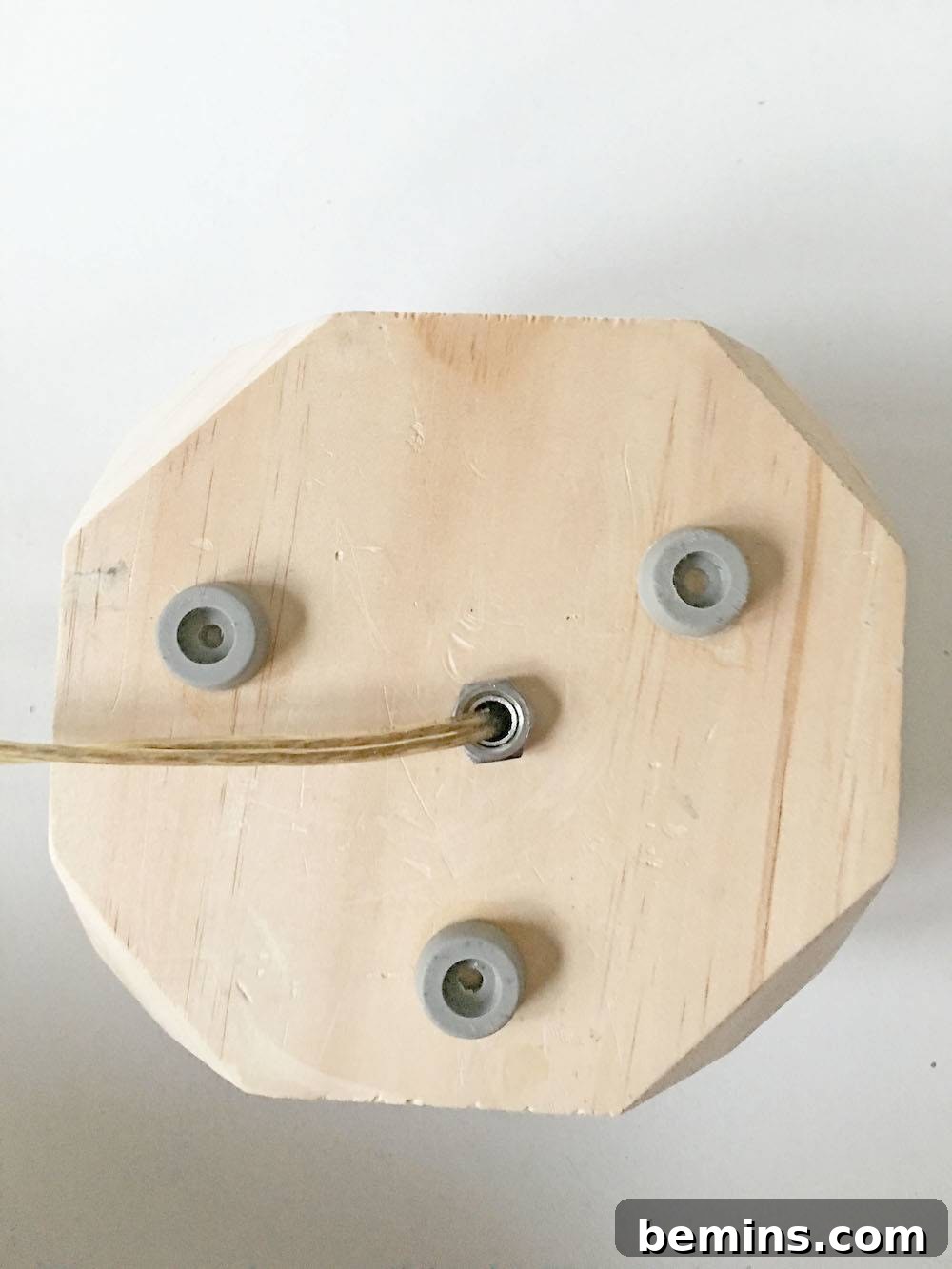

Use hot glue or super glue to attach the rubber feet to the bottom of the wood block. This will elevate the lamp slightly, allowing the cord to fit neatly underneath and preventing the lamp from scratching surfaces.

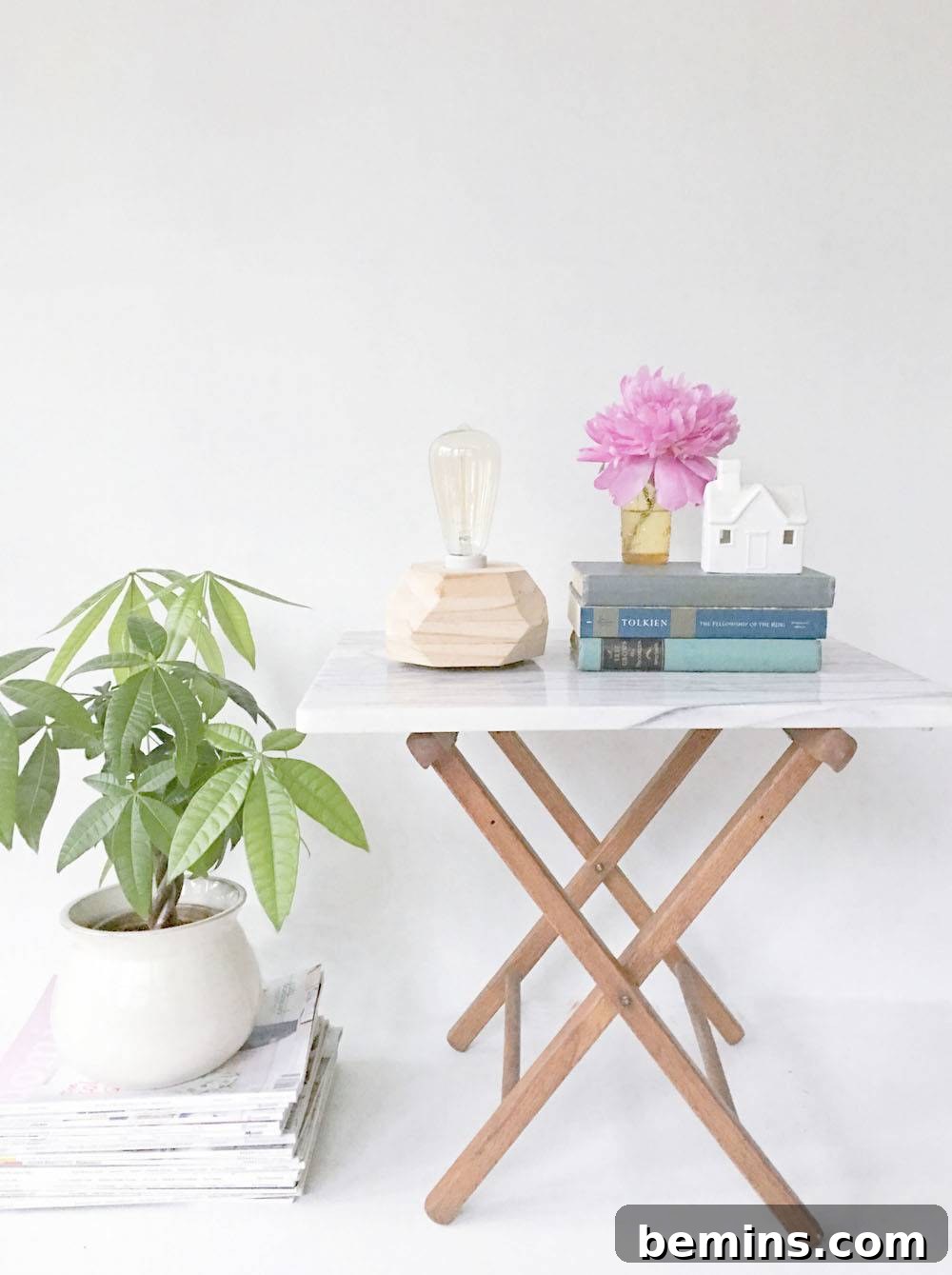

Step 18: The Final Touch

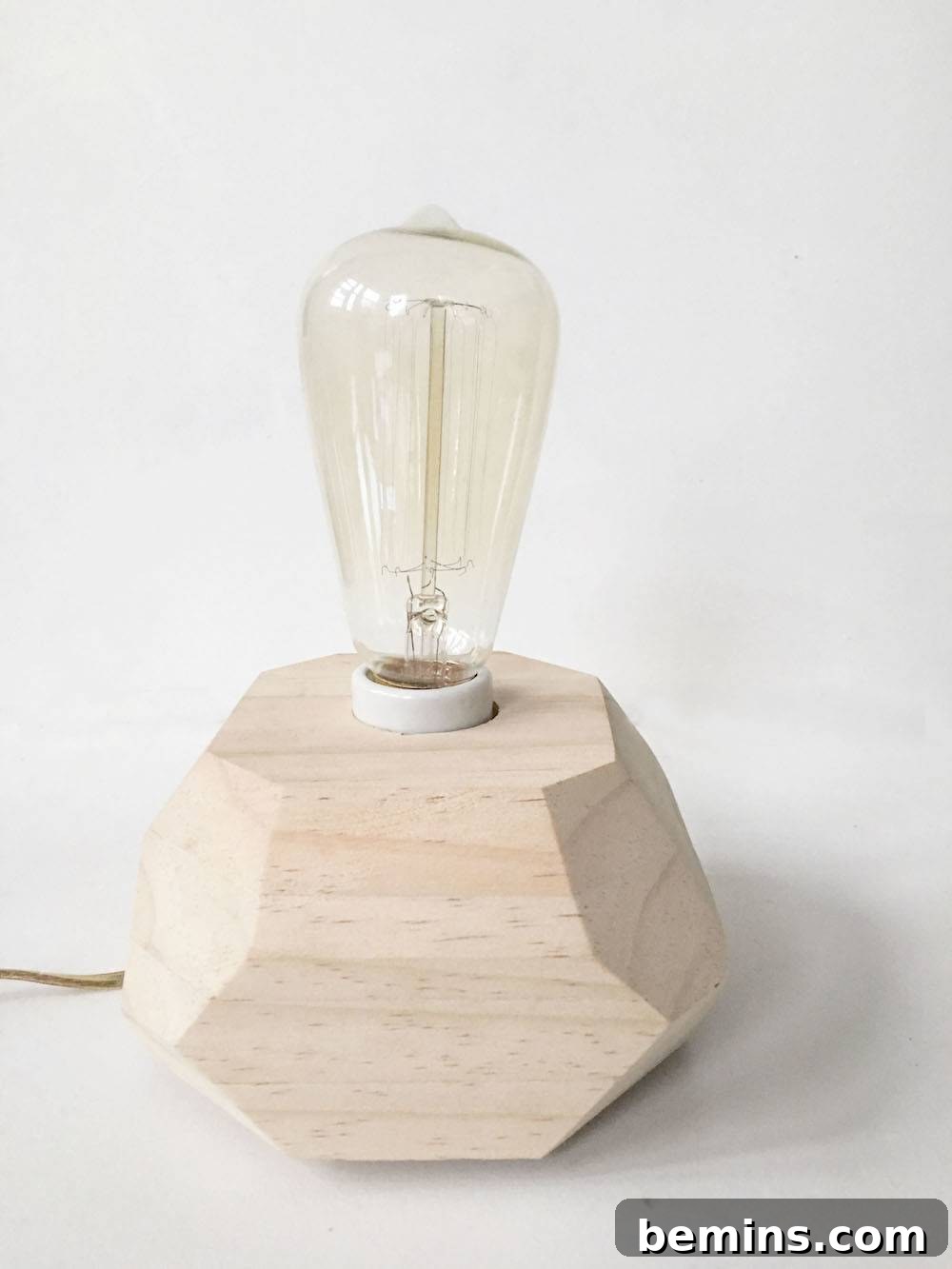

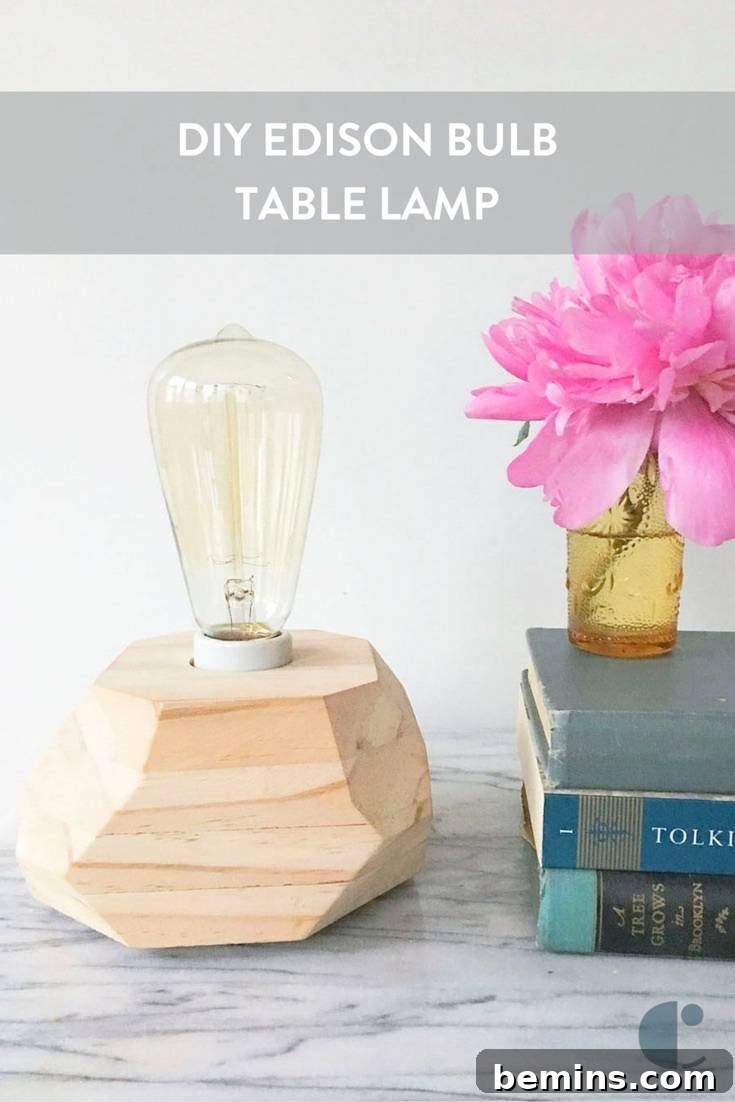

Screw in an Edison bulb, and your DIY table lamp is complete! Enjoy the warm and inviting glow of your handcrafted creation.
