Demystifying Electricity: A Homeowner’s Guide to Using Amprobe Electrical Testing Tools

Like many homeowners, the thought of dealing with electricity used to fill me with dread. The potential dangers always seemed overwhelming. When Amprobe offered to send me some of their residential electrical testing tools, I hesitated, to say the least. But then I realized this could be a chance to overcome my fear and gain some valuable skills. If these tools could simplify electrical troubleshooting, maybe I could finally tackle those minor repairs around the house without calling an electrician every time. And besides, I had a built-in expert – an engineer with connections to professional electricians. It was an opportunity I couldn’t pass up!

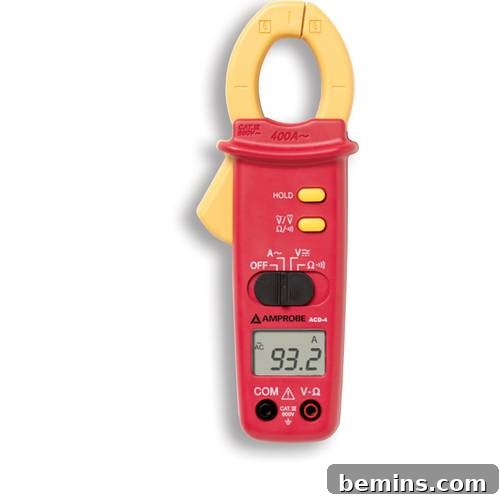

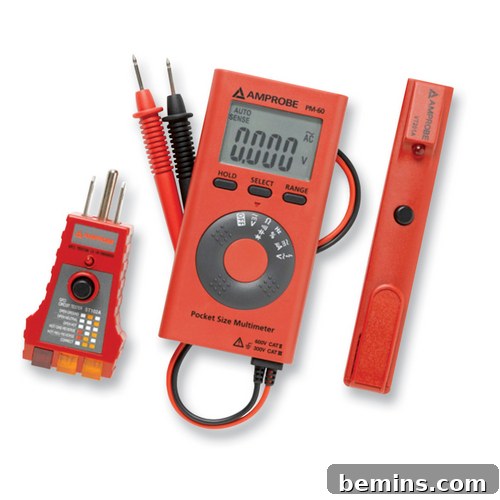

Amprobe provided me with a selection of tools, including the PK-100R Residential Testing Kit (comprising a multimeter (PM-60), a non-contact voltage detector (VT201A), and a receptacle tester (ST102A)) and a Digital Clamp Meter (ACD0-4). The clamp meter even came with its own handy protective case. Instead of writing a standard product review with technical jargon, I wanted to focus on practical applications – how a regular homeowner like me could actually use these tools to solve real-world problems.

My in-house electrical guru took the Amprobe tools to his workplace, where seasoned professional electricians gave them a thorough assessment. Their verdict? High-quality testing equipment. These guys were straight to the point. That was enough to instill confidence in their build and accuracy.

Now, the real fun began: figuring out how to use these tools and what to actually use them *for*. Instead of just reciting the product specifications (which, let’s be honest, tend to induce immediate drowsiness), I decided to find things around the house that needed fixing and then use the Amprobe tools to diagnose and repair them. Learning by doing, the best way!

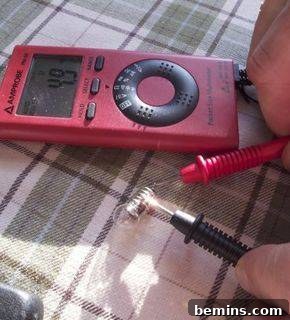

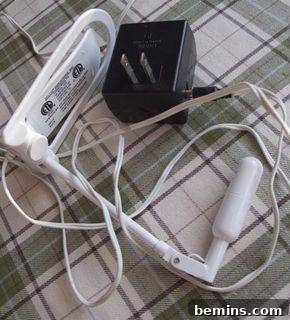

First up: my trusty book light, which had been out of commission for ages. I couldn’t bear to throw it away, hoping one day I’d get around to fixing it. We started by testing the light bulb (and a spare) using the multimeter. Good news: both bulbs showed continuity, meaning they were functional.

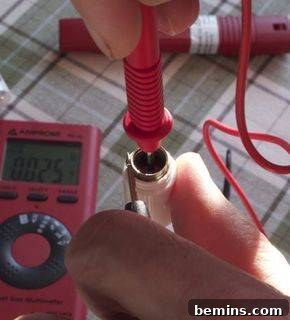

Next, we used the multimeter to check the light socket itself. This time, the meter didn’t register anything. No power was reaching the bulb, indicating a problem somewhere along the wire.

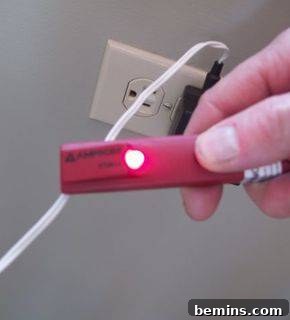

Enter the non-contact voltage detector! This little device is like a magic wand for electrical troubleshooting. We ran the detector along the wire from the outlet to the light, tracing the flow of electricity.

The detector lit up and emitted an audible signal whenever it detected live voltage. Initially, it worked perfectly. But as we approached the connection to the appliance, the indicator stopped responding. Aha! This suggested a break in the wire near the appliance.

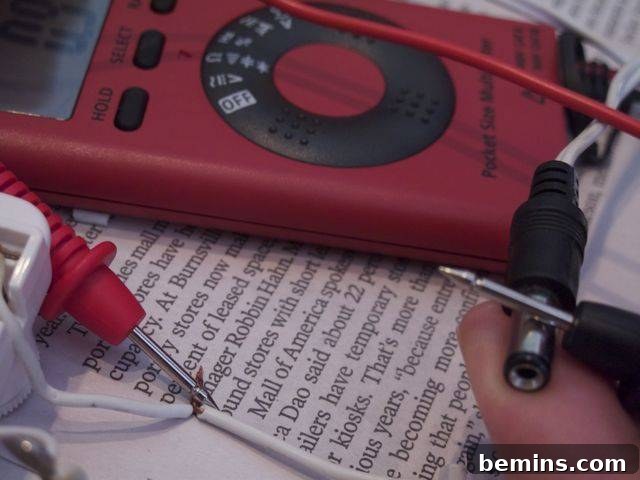

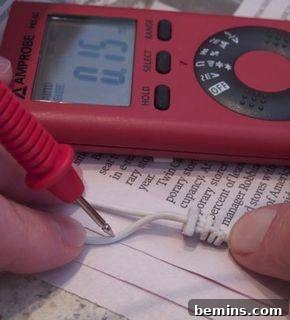

We went back to the multimeter and carefully probed the wire. Admittedly, sticking the multimeter probes through the wire insulation made me nervous, but my partner assured me it was safe. As we probed, we discovered a two-inch gap in the wire – as if it had been pulled apart *inside* the insulation. The exact cause remained a mystery, but the problem was now clear.

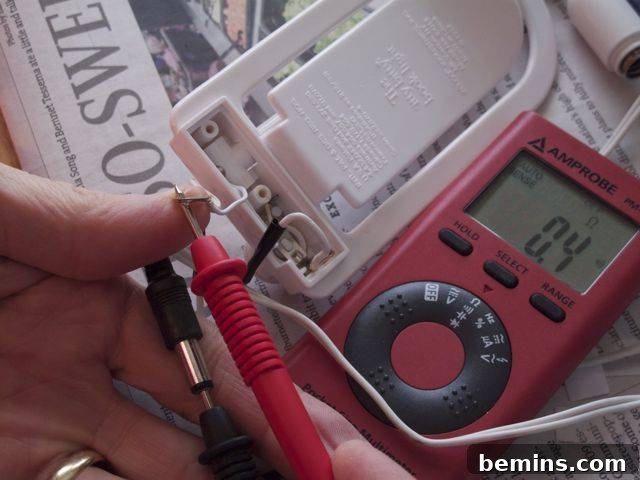

My partner stripped the wire jacket, soldered the wires back together, and reconnected everything. We then used the multimeter to confirm a good connection and ensure continuity.

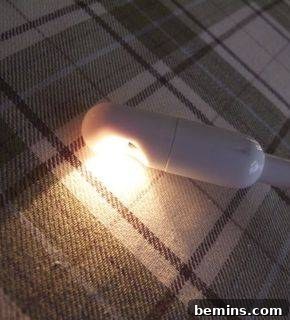

And just like that…let there be light! It was incredibly satisfying to fix something myself using the Amprobe tools.

Emboldened by my success, I decided to tackle another electrical mystery: an old outlet in our basement that hadn’t worked since we moved in. For this, I grabbed the receptacle tester, which is like an outlet mind-reader! It has indicator lights that reveal whether an outlet is wired correctly and, if not, what the specific problem is.

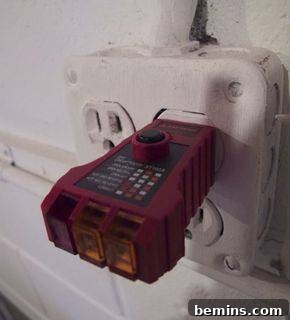

I plugged the receptacle tester into the non-functional outlet. None of the lights illuminated. According to the tester’s diagnostic chart, this indicated an “Open Hot” condition.

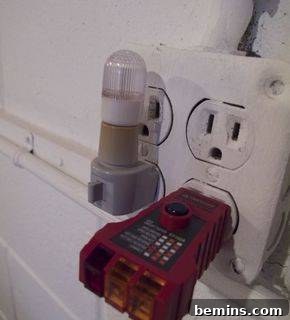

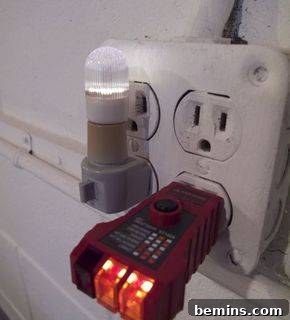

Before attempting any repairs, we took the crucial step of turning off the power at the breaker box. We used the tester and a nightlight (on separate circuits) to double-check that the power was indeed off. Safety First!

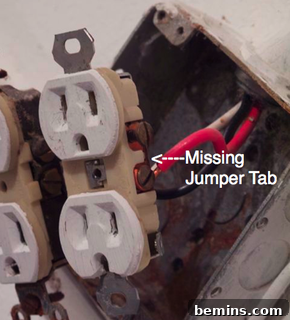

With the power safely off, we removed the outlet and immediately saw the cause of the “Open Hot” diagnosis: a missing jumper tab between the two gold “hot” screws.

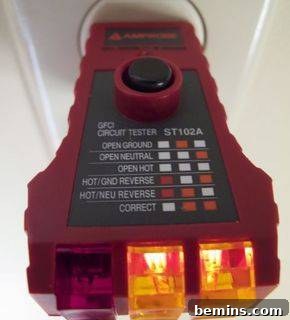

Installing a new outlet was a simple process. As the illuminated lights on the receptacle tester confirmed, the new outlet was wired correctly!

Next up: the Digital Clamp Meter. While we didn’t have an immediate electrical problem to fix, we had experienced a recurring issue with a blown circuit when using our microwave. The clamp meter offered valuable insights into this issue.

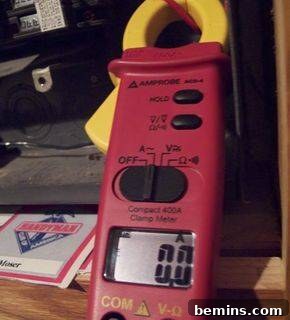

We went to the breaker box and positioned the clamp meter around the power wire connected to the microwave’s circuit. Here’s a reading with the microwave *not* running:

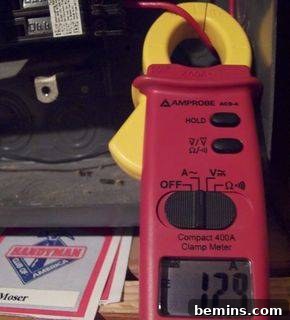

Turning on the microwave revealed a draw of 12.9 amps. Previously, the circuit breaker for this line was only rated for 15 amps. Add a few other small appliances on the same circuit, and *poof* – a blown circuit. The solution: upgrading the amperage. We hired a professional electrician to run new wiring from the breaker box to the microwave and place it on a dedicated 20-amp circuit. Now, drawing 12.9 amps poses no problem.

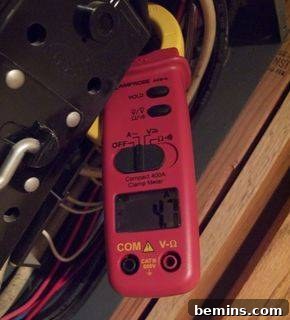

Just for kicks, we used the clamp meter on the main power line entering the house to see the total amperage being drawn. At that moment, it was 4.7 amps. Generally, a lower number is better. To minimize the load, you can use the clamp meter to identify which appliances are power hogs (provided they’re on the same line – most houses have two main power lines).

We’ve only scratched the surface of what these tools can do, and I’m confident we’ll find even more uses for them as we continue to tackle household repairs and improvements. Even if you’re not planning on rewiring your house, these Amprobe tools can help you understand what’s happening behind your walls and switch plates, allowing you to communicate effectively with a qualified electrician. These tools undeniably demystify electricity, empowering homeowners to take control of their electrical systems and ensuring their safety. They empower homeowners to perform simple electrical troubleshooting and repairs.

For more information about Amprobe’s range of electrical products, visit the Amprobe website. You can purchase these tools at Lowes.

Disclaimer: Curbly.com received sample products from Amprobe for this review; however, no monetary compensation was provided.
