Crafting an Eames-Inspired Garden Trellis

Build Your Own Eames-Inspired Trellis: A DIY Guide

Elevate your outdoor decor with a touch of mid-century modern flair! This guide provides a comprehensive, step-by-step approach to crafting your own Eames-inspired trellis. This project is perfect for adding visual interest to your garden, supporting climbing plants, or simply creating a unique architectural element in your outdoor space. Best of all, you don’t need to be a master carpenter to achieve stunning results. Let’s get started!

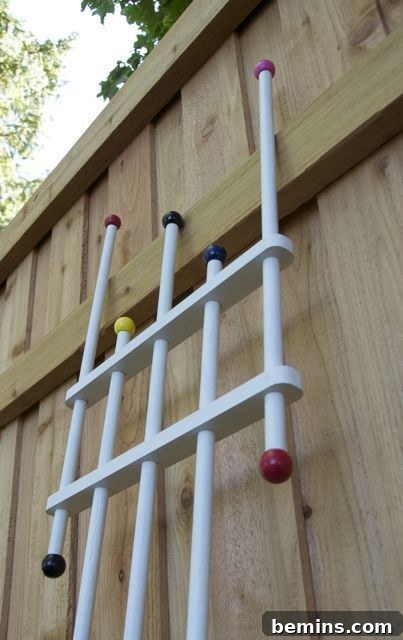

Finished Eames-Inspired Trellis

Materials You’ll Need

Before you begin, gather all the necessary materials. This will ensure a smooth and efficient building process.

  • Wood Doweling:
    • 5 – 4′ long 3/4″ wood doweling (for vertical supports)
    • 1′ long 3/16″ doweling (for knob attachments)
  • Select Pine: 1 – 6′ long 1″ x 2″ select pine (for horizontal supports)
  • Wooden Knobs/Doll Heads: 10 – wooden knobs/dolls heads with a 3/16″ hole at the bottom that are 1-1/4″ in diameter (easily found at craft stores)
  • Saw: Hand saw, miter saw, or any saw you’re comfortable using.
  • Drill: Essential for creating precise holes.
  • Drill Bits:
    • 3/4″ drill bit
    • 3/16″ drill bit
  • Hammer: For gently securing nails.
  • Brad Nails: 20 – 1″ brad nails
  • Tape Measure: For accurate measurements.
  • Sand Paper: 120 grit (or an electric sander) for smoothing wood surfaces.
  • Pencil: For marking measurements.
  • Water-Proof Glue: Crucial for secure and weather-resistant bonds.
  • Latex Primer: To prepare the wood for painting.
  • Exterior Paint: White exterior paint for the trellis frame.
  • Weather Resistant Acrylic Gloss: In red, pink, black, yellow, and navy blue for the knobs (craft acrylic gloss paint works well).
  • Paint Brush(es): For applying primer and paint.

Step-by-Step Instructions

Follow these detailed instructions to build your Eames-inspired trellis. Each step is designed to be clear and manageable, even for beginners.

Step 1: Cut the Doweling

Using your saw, cut the 3/4″ doweling into the following lengths:

  • 4 pieces at 24″ long
  • 2 pieces at 36″ long
  • 1 piece at 48″ long

Step 2: Cut the Pine

Cut the 1″ x 2″ select pine into four 18″ long pieces. These will serve as the horizontal supports of your trellis.

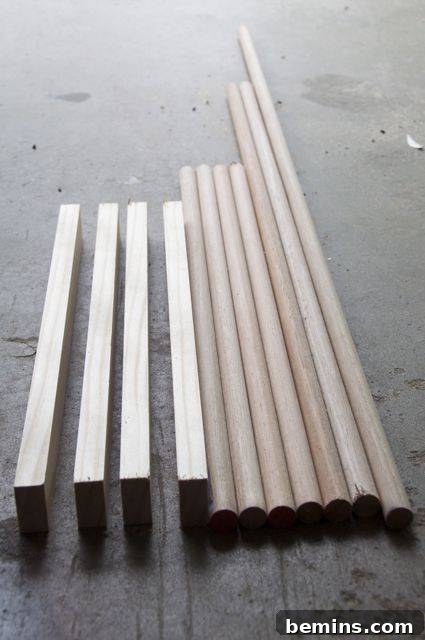

Cut Pine Pieces

Step 3: Drill Holes in the Pine

On each of the four 18″ pine pieces, drill five 3/4″ holes along the 2″ side. Space the holes four inches apart, ensuring they are equally spaced along the length of the wood. Sand the wood smooth before drilling.

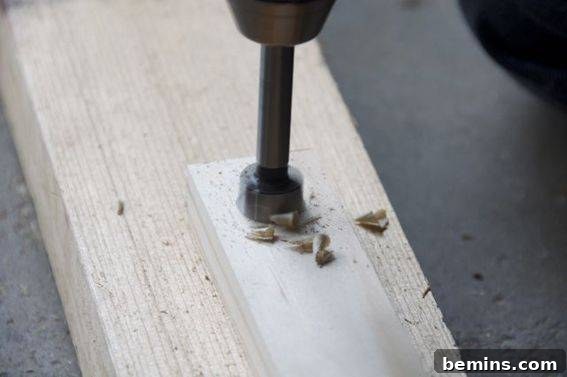

Drilling Holes in Pine

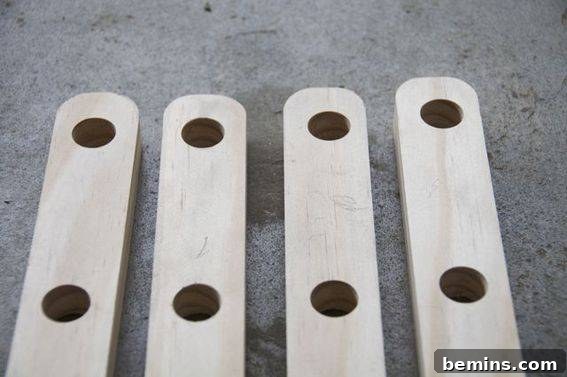

Step 4: Round Over the Ends

Use sandpaper or an electric sander to round over the 1″ ends of each of the 18″ pine pieces. This will give the trellis a smoother, more finished look.

Rounding Over Ends

Step 5: Prime and Paint

First, apply a coat of latex primer to the trellis components and wooden knobs. Once the primer is dry, paint the trellis with white exterior paint. Paint the knobs with the acrylic gloss paint in the following colors: 3 red, 3 blue, 2 pink, and 2 yellow. Allow the paint to dry completely.

Step 6: Assemble the Trellis Frame

Carefully slip the 3/4″ doweling into the holes you drilled in the pine pieces. Refer to the final picture for spacing guidance, aiming for even distribution. Once the dowels are in place, secure them with 1″ brad nails. Hammer the nails gently to avoid splitting the wood.

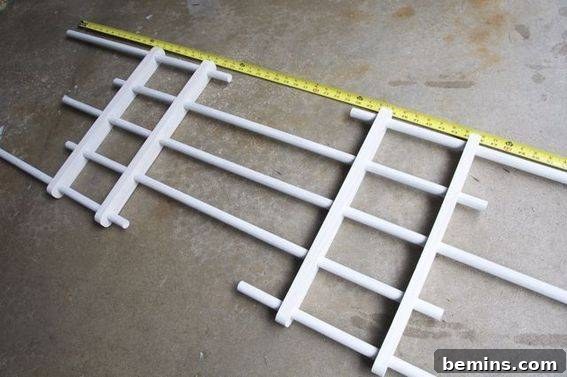

Assembling Trellis Frame

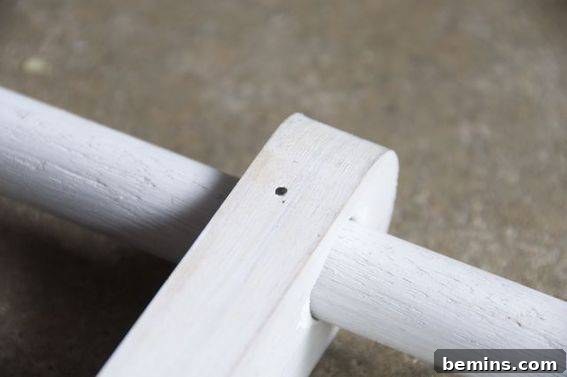

Nailing Dowels in Place

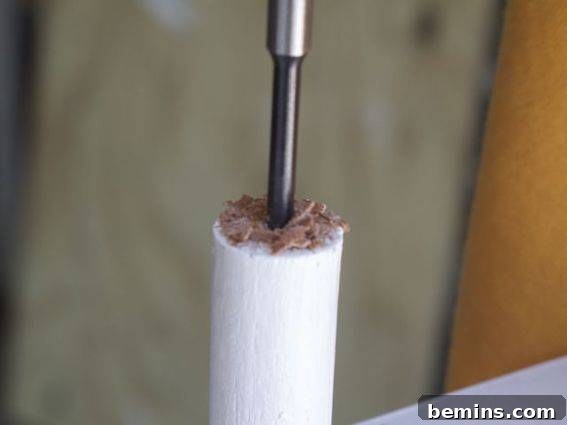

Step 7: Drill Holes for Knobs

Mark the centers of the exposed ends of the dowels and drill a 3/16″ hole into each marked spot, approximately 1/2″ deep. Important Note: Do not drill holes in the bottom two dowels, as these will be in contact with the ground.

Drilling Holes for Knobs

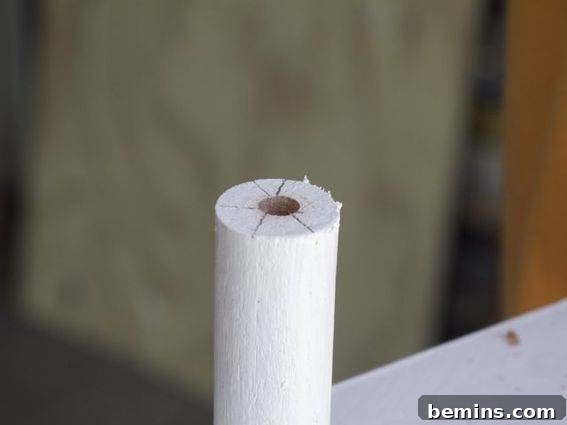

Drilling Knob Holes Detail

Step 8: Prepare the Knobs

Cut the 3/16″ dowel into 10 – 1 inch pieces. Apply a small amount of waterproof glue to one end of each dowel piece and insert it into the pre-drilled hole at the bottom of each wooden knob. Allow the glue to dry completely.

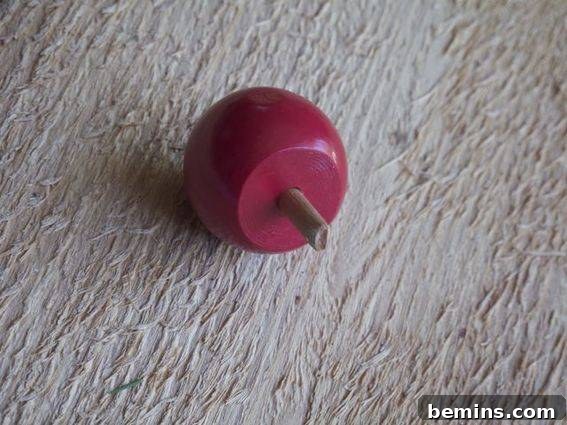

Preparing Knobs

Step 9: Attach the Knobs

Once the glue on the knobs is completely dry, apply waterproof glue to the exposed dowel protruding from each knob. Carefully insert these dowels into the corresponding holes you drilled into the ends of the vertical dowels of the trellis. Allow the glue to dry completely, ensuring a strong and lasting bond.

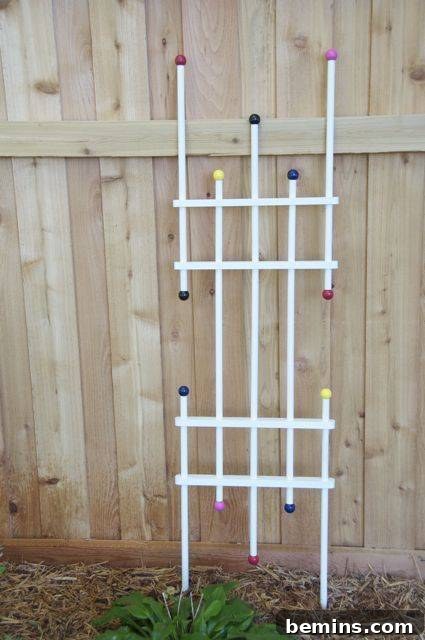

Attaching Knobs to Trellis

Your Eames-Inspired Trellis is Complete!

Congratulations! You’ve successfully built your own Eames-inspired trellis. This unique piece of outdoor decor is ready to enhance your garden, patio, or balcony. Consider planting climbing vines or flowers at the base of the trellis to create a living, breathing work of art. Experiment with different plant varieties to achieve your desired aesthetic.

Tips for Success

  • Accurate Measurements: Precise measurements are key to a well-constructed trellis. Double-check your measurements before cutting any materials.
  • Quality Materials: Investing in high-quality wood and paint will ensure the longevity of your trellis.
  • Proper Drying Time: Allow ample drying time for both the primer and paint. This will prevent chipping and peeling.
  • Weather Protection: Consider applying a sealant to protect the trellis from the elements, especially if you live in an area with harsh weather conditions.
  • Plant Selection: Choose climbing plants that are appropriate for your climate and the amount of sunlight your trellis receives.

Troubleshooting

  • Wood Splitting: If the wood splits when nailing, try pre-drilling pilot holes.
  • Loose Knobs: If the knobs become loose, re-glue them using a stronger adhesive.
  • Trellis Instability: Ensure the trellis is placed on a stable surface and is properly secured to the ground if necessary.

If you have any questions or encounter any difficulties during the building process, please feel free to post them in the comments below. I’ll do my best to provide guidance and assistance. Enjoy your beautiful, handcrafted Eames-inspired trellis!
