Unleash Your Inner Craftsman: Mastering the Art of Copper Pipe Soldering

Mastering Copper Pipe Soldering: A Comprehensive Guide to Leak-Proof Joints

Embarking on a home renovation project often involves tackling plumbing tasks, and one of the most crucial skills to acquire is the art of soldering copper pipes. A well-soldered copper joint is the cornerstone of a reliable plumbing system, preventing leaks and ensuring the longevity of your water lines. This comprehensive guide will walk you through each step of the soldering process, from gathering the necessary tools and materials to mastering the techniques that will enable you to create strong, leak-free connections. Whether you’re a seasoned DIY enthusiast or a complete beginner, this guide provides the knowledge and practical tips you need to confidently solder copper pipes and achieve professional-quality results.

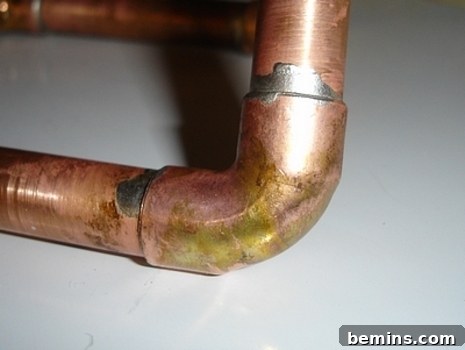

Rusty copper pipe with lead soldering, illustrating a problematic joint and emphasizing the need for proper soldering techniques.

Before diving into the soldering process, it’s essential to gather the right tools and materials. Having the proper equipment not only makes the job easier but also contributes to the quality and durability of your soldered joints. Let’s take a look at the essential items you’ll need to successfully solder copper pipes:

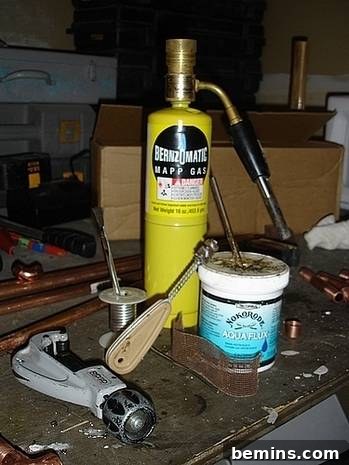

A collection of tools required for copper pipe soldering, including a gas tank, copper wires, a vise grip, and other assorted items on a workbench.

Essential Tools and Materials for Copper Pipe Soldering

  1. Copper Tube Cutter: This specialized tool provides clean, square cuts on copper pipes, ensuring a tight and secure fit within fittings. Avoid using a saw, as it can create burrs and uneven edges that compromise the integrity of the joint.
  2. Emery Cloth: Emery cloth is an abrasive material used to clean the outer surface of the copper pipe, removing oxidation and creating a clean surface for soldering. A clean surface is crucial for the solder to properly adhere to the copper.
  3. Wire Fitting Brush: This brush is specifically designed to clean the inside of copper fittings. Like the emery cloth, it removes oxidation and prepares the fitting for a strong solder joint. Make sure to select a brush that matches the size of the pipe you’re working with.
  4. Flux and Applicator Brush: Flux is a paste-like chemical compound that acts as a cleaning agent during the soldering process. It removes any remaining oxidation and promotes the flow of solder into the joint. Apply the flux with a dedicated brush to ensure even coverage.
  5. Solder: Solder is a metal alloy that melts at a relatively low temperature, creating a strong bond between the copper pipe and the fitting. Choose a solder specifically designed for plumbing applications, ensuring it’s lead-free and compliant with local regulations.
  6. MAPP Gas Torch Kit: A MAPP (methylacetylene-propadiene propane) gas torch provides the necessary heat to melt the solder and create a strong joint. The kit includes a torch head and a canister of MAPP gas, which burns hotter than propane, resulting in faster and more efficient soldering.
  7. Old Rag: An old rag is essential for wiping away excess flux and cleaning the soldered joint after it has cooled. This helps prevent corrosion and ensures a clean, professional-looking finish.
  8. Safety Glasses: Protect your eyes from stray sparks and hot solder during the soldering process. Safety glasses are a must-have for any soldering project.
  9. Gloves: Wear heat-resistant gloves to protect your hands from the heat of the torch and the hot copper pipe.
  10. Fire-Resistant Surface or Shield: Soldering involves an open flame, so it’s crucial to protect surrounding surfaces from heat damage. Use a fire-resistant surface or shield to prevent fires.

Step-by-Step Guide to Soldering Copper Pipes

Now that you have all the necessary tools and materials, let’s walk through the step-by-step process of soldering copper pipes:

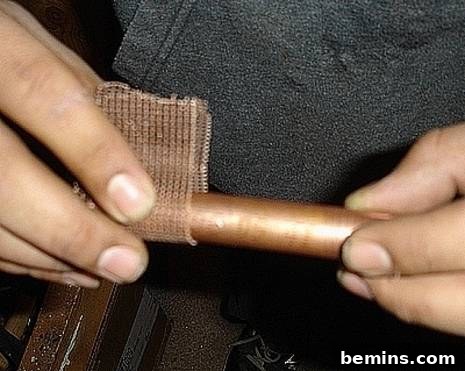

A close-up of a clean copper pipe, emphasizing the importance of using clean materials for successful soldering and leak prevention.

Step 1: Prepare and Clean the Copper Pipes and Fittings

The first and arguably most important step is to thoroughly clean the copper pipes and fittings. Begin by measuring and cutting the copper pipe to the desired length using the copper tube cutter. Rotate the cutter around the pipe, tightening it slightly after each rotation until the pipe is completely cut. Once cut, use the emery cloth to clean the outside of the pipe ends that will be inserted into the fitting. Rub the emery cloth around the pipe until the surface is shiny and free of any oxidation or dirt. Next, use the wire fitting brush to clean the inside of the fitting. Insert the brush and rotate it to remove any oxidation or debris. A clean surface is essential for the solder to properly bond to the copper.

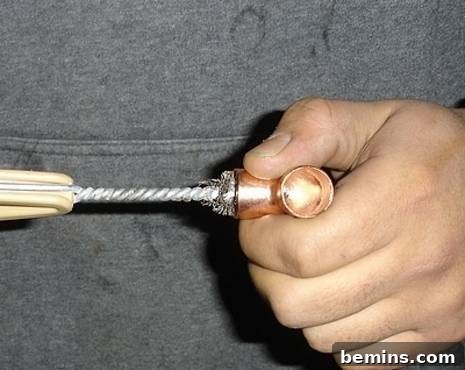

A person cleaning a copper pipe fitting with a wire brush, highlighting the meticulous cleaning process required for successful soldering.

Step 2: Apply Flux to the Joints

Flux is a crucial element in the soldering process. It acts as a cleaning agent, removing any remaining oxidation and allowing the solder to flow freely into the joint. Using the applicator brush, apply a thin, even layer of flux to both the outside of the copper pipe and the inside of the fitting. Ensure that the entire surface that will be in contact with the solder is coated with flux. Once the flux is applied, insert the pipe into the fitting, ensuring a snug fit.

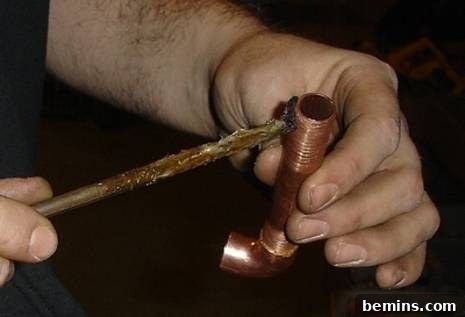

A person applying flux to a copper pipe, illustrating the importance of proper flux application for a strong solder joint.

Step 3: Heat the Joint and Apply Solder

Now comes the soldering itself. Before igniting the torch, ensure that the surrounding area is clear of any flammable materials. Position the copper pipe and fitting in a stable position, using a vise or clamps if necessary. Ignite the MAPP gas torch and adjust the flame to a medium setting. Direct the flame onto the fitting, focusing on heating the entire circumference of the joint evenly. Keep the flame moving to avoid overheating any one spot. After a short period of heating, touch the tip of the solder to the joint. If the joint is hot enough, the solder will melt and be drawn into the joint by capillary action. Continue applying solder around the entire joint until a bead of solder forms around the perimeter. Remove the flame and allow the joint to cool slightly.

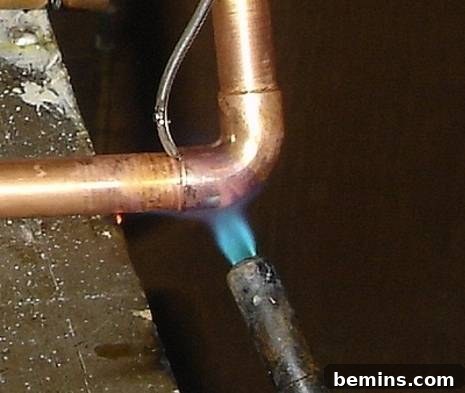

A copper pipe being soldered with a torch, demonstrating the application of heat and solder to create a strong, leak-proof joint.

Step 4: Clean the Joint and Inspect for Leaks

Once the joint has cooled slightly, use the old rag to wipe away any excess flux and solder. This will prevent corrosion and provide a clean, professional-looking finish. After the joint has completely cooled, carefully inspect it for any gaps or imperfections. A properly soldered joint should have a smooth, even bead of solder around the entire perimeter. If you notice any gaps or imperfections, reheat the joint and apply more solder. After the joint is completely cool, test it for leaks by turning on the water supply. If any leaks are present, you’ll need to redo the soldering process. Remember, patience and practice are key to mastering the art of soldering copper pipes.

Tips and Best Practices for Copper Pipe Soldering

* Practice Makes Perfect: Before tackling a major plumbing project, practice soldering on scrap pieces of copper pipe to develop your technique and get a feel for the process.
* Use the Right Amount of Heat: Applying too much heat can damage the copper pipe and fittings, while not enough heat will prevent the solder from flowing properly.
* Don’t Overheat the Solder: Overheating the solder can cause it to become brittle and weak.
* Ensure Adequate Ventilation: Soldering can produce fumes, so ensure adequate ventilation in the work area.
* Follow Local Plumbing Codes: Always adhere to local plumbing codes and regulations when working on plumbing systems.
* Consider Using a Soldering Mat: A soldering mat is a heat-resistant pad that protects your work surface from heat damage and makes cleanup easier.
* Invest in Quality Tools: Quality tools will make the soldering process easier and more efficient, and they will also last longer.
* Properly Store Your Materials: Store your flux and solder in a cool, dry place to prevent them from deteriorating.

Troubleshooting Common Soldering Problems

* Solder Not Flowing: This is often caused by insufficient heat, a dirty joint, or a lack of flux.
* Leaks After Soldering: This could be due to a poor solder joint, insufficient solder, or a gap in the joint.
* Burned or Damaged Copper: This is usually caused by applying too much heat to the copper.
* Pinholes in the Solder: This can be caused by overheating the solder or by using contaminated materials.

Conclusion

Soldering copper pipes is a valuable skill that can save you money on plumbing repairs and allow you to confidently tackle home renovation projects. By following the steps outlined in this guide and practicing the techniques, you can master the art of soldering and create strong, leak-free joints that will last for years to come. Remember to always prioritize safety and follow local plumbing codes when working on plumbing systems. With a little patience and practice, you’ll be soldering copper pipes like a pro in no time!
