You’ve successfully tackled the challenging task of removing your old, inefficient water heater. If you needed a helping hand with that first crucial step, our comprehensive guide on removing an old electric water heater provided all the necessary instructions. Now, with the old tank out of the way, it’s time for the exciting part: installing its modern, more efficient replacement. While the process of installing a new hot water heater might seem daunting, it’s often less complicated than removing the old unit. With the right preparation, tools, and a clear understanding of each step, you can confidently install your new electric water heater, ensuring your home has a reliable supply of hot water. This guide is designed to empower homeowners like you, providing detailed, easy-to-follow instructions and expert tips to make your DIY water heater replacement a smooth and successful project.
Why Upgrade Your Hot Water System? The Benefits of a New Electric Water Heater
Replacing an aging water heater isn’t just about fixing a broken appliance; it’s an investment in your home’s comfort, efficiency, and safety. Older hot water tanks, especially those over 10-15 years old, become less efficient over time, costing you more on your energy bills. A new electric water heater offers significant advantages:
- Improved Energy Efficiency: Modern units are designed to heat water more efficiently and retain heat longer, leading to noticeable savings on your electricity bill.
- Reliable Hot Water Supply: Say goodbye to cold showers! A new water heater ensures a consistent and ample supply of hot water for all your household needs.
- Enhanced Safety Features: Newer models come equipped with advanced safety mechanisms, including more reliable temperature and pressure relief valves, reducing the risk of malfunctions.
- Peace of Mind: With a brand-new unit, you won’t have to worry about unexpected leaks, breakdowns, or costly emergency repairs for years to come.
- Increased Home Value: Upgrading major appliances like your water heater can add to the overall appeal and value of your property.
By taking on this DIY project, you’re not only saving on installation costs but also gaining invaluable experience and the satisfaction of improving your home yourself. With this guide, you’ll be well-prepared to handle the installation with confidence.
Essential Tools and Materials for a Seamless Installation
Before you begin, gather all the necessary tools and supplies. Having everything on hand will ensure the installation process is efficient and uninterrupted. You’ll find that many of the tools required are the same ones you used for the removal of your old unit.
Tools You’ll Need:
- Adjustable Wrenches or Pipe Wrenches: Essential for tightening and loosening plumbing connections.
- Screwdriver Set: For various fastening tasks.
- Drill (Cordless or Corded): Extremely helpful for securing water heater straps into wall studs. While some might attempt to screw them in by hand, a drill makes the job significantly easier and more secure.
- Utility Knife or Pipe Cutter: Depending on your plumbing setup for the T&P valve drain line.
- Level: To ensure your new water heater is perfectly level, aiding in proper drainage and operation.
- Bucket and Rags: For any minor spills or drips during the connection process.
- Headlamp or Work Light: To illuminate cramped spaces, ensuring clear visibility of all connections.
Materials You’ll Need:

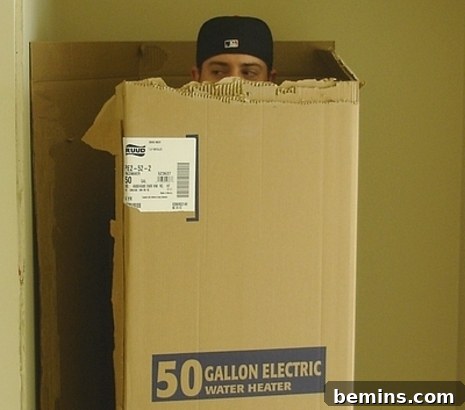

- New Electric Water Heater: Ensure it matches your home’s capacity and electrical requirements.
- New Copper or Steel Flex Water Heater Supply Lines: These flexible connectors are easier to install than rigid piping and accommodate minor misalignments. Make sure they are long enough to comfortably reach from your house plumbing to the water heater’s inlets.
- Water Heater Straps (Seismic Straps): Required by code in many areas, especially seismic zones, to prevent the water heater from tipping over. These typically include metal straps and lag screws for securing to wall studs.
- New Water Heater Pan: Unless your water heater is located in an unfinished basement or an area where a leak would cause no damage, a pan is crucial. It catches any potential leaks, protecting your floors and preventing costly water damage.
- Teflon Tape (PTFE Thread Seal Tape): Absolutely essential for creating watertight seals on threaded pipe connections, preventing leaks.
- Pipe Dope (Pipe Thread Sealant): An alternative or supplement to Teflon tape for threaded connections, providing an extra layer of leak prevention.
- Temperature and Pressure (T&P) Relief Valve Drain Line Materials: Depending on your existing setup, you might need copper pipe, CPVC pipe, or flexible PEX tubing, along with appropriate fittings and glue/solder.
Step-by-Step Guide to Installing Your Electric Water Heater
With your tools and materials ready, let’s dive into the installation process. Follow these steps carefully to ensure a safe and successful setup.
1. Safety First: Disconnecting Power
This is arguably the most critical step. Before touching any electrical components, ensure the power supply to the water heater is completely off. Locate your home’s electrical service panel (breaker box) and switch off the breaker specifically labeled for your water heater. If your panel isn’t clearly marked, switch off the main breaker to your entire home as a precautionary measure. Always double-check with a non-contact voltage tester on the wiring if you’re unsure. Failing to do so can result in severe electrical shock and injury. Your safety is paramount.
2. Preparing the Installation Area and the New Unit
With the old tank removed, take a moment to clean the area. Sweep away any dust or debris. Inspect the floor for any damage or unevenness. Now, prepare your new water heater. Carefully unbox the unit and inspect it for any shipping damage. Locate the instruction manual and familiarize yourself with any specific requirements or recommendations from the manufacturer. It’s often helpful to keep the cardboard box nearby to make moving the new tank easier.
3. Placing the New Water Heater and Pan
If your water heater is located indoors, on a finished floor, or in an area where leaks could cause significant damage (e.g., attic, second floor, garage with finished walls), installing a new water heater pan is non-negotiable. This pan acts as a critical catch basin for any leaks, directing water to a drain and preventing extensive water damage to your home. Place the pan in the desired location first, ensuring it is level. Then, carefully lift and position the new water heater into the pan. Use a level to confirm the water heater itself is sitting perfectly straight. Proper leveling ensures the internal components function correctly and helps with efficient drainage during future maintenance.

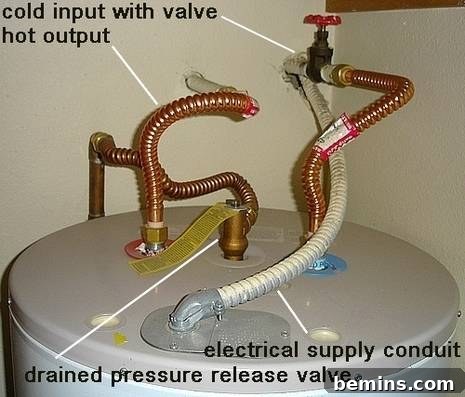

4. Connecting Supply Lines: Cold In, Hot Out
This is where your new flexible supply lines come into play. These lines are designed to connect the existing plumbing in your home to the inlet and outlet ports on your new water heater. Always ensure the supply lines are long enough to make a connection without straining or bending excessively.
- Cold Water Connection: Identify the cold water inlet on your water heater. It’s usually labeled “Cold” or “C” and is typically on the right side when facing the unit. Wrap the threaded fitting of the water heater’s cold inlet with several layers of Teflon tape, wrapping clockwise. Then, connect one of your new flexible supply lines to this port and to the cold water shut-off valve from your home’s plumbing. Tighten firmly with a wrench, but do not overtighten, as this can damage the connections.
- Hot Water Connection: Similarly, locate the hot water outlet, often labeled “Hot” or “H,” typically on the left side. Apply Teflon tape to this fitting and connect the other flexible supply line to it and to the hot water pipe leading into your home’s distribution system.
Crucial Tip for Connections: Before tightening any connections, make absolutely sure that the rubber gaskets or washers are properly seated inside the nuts of your supply lines. These gaskets are vital for creating a watertight seal. If they are missing, improperly seated, or damaged, you will almost certainly experience a leak. Push them all the way up into the nut before aligning and tightening the connections. The difference between a leak-free installation and a watery headache often comes down to these small but mighty gaskets.

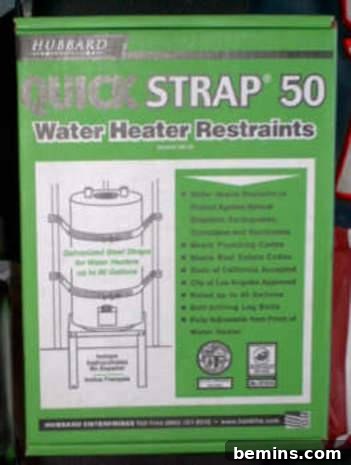

5. Securing Your Water Heater: Earthquake Straps
In many regions, especially those prone to seismic activity, local building codes mandate securing your water heater with specialized straps. These straps are designed to prevent the tank from tipping over during an earthquake, which could cause gas leaks, water damage, or electrical hazards. Position the straps according to manufacturer instructions, typically one near the top third and another near the bottom third of the tank. Secure them firmly to the wall studs using lag screws and your drill. A properly secured water heater is a safe water heater.
6. Filling the Tank Correctly and Bleeding Air
Before turning on the power, you must fill the new water heater with water. This prevents damage to the heating elements, which can burn out if activated in an empty tank. To fill the tank:
- Ensure all hot water faucets in your home are turned off, except for one on the highest floor, which you should open to the hot setting. This allows air to escape as the tank fills.
- Open the cold water supply valve to the water heater. You will hear water begin to flow into the tank.
- Wait until a steady stream of water, free of air sputtering, comes out of the open hot water faucet. This indicates that the water heater tank is completely full and all air has been purged from the system.
- Once the tank is full and air is bled, close the open hot water faucet.
This process is essential not only for protecting the heating elements but also for preventing airlocks in your plumbing system.
7. The Critical Pressure Release Valve (T&P Valve)
The Temperature and Pressure (T&P) relief valve is a non-negotiable safety device. It’s designed to automatically open and release water if the temperature or pressure inside the tank exceeds safe limits, preventing a potentially catastrophic explosion. The valve typically has an outlet that requires a dedicated drain line.
This drain line must:
- Be of appropriate material (copper, CPVC, or PEX rated for hot water) and size (usually 3/4 inch).
- Extend downwards from the valve, terminating no more than 6 inches above the floor or into an approved indirect waste receptor (like a floor drain or utility sink).
- Have a continuous downward slope to allow gravity to drain any released water.
- NOT have any valves, plugs, or obstructions that could prevent water from flowing out.
While the original text mentioned the possibility of a non-downhill copper flex line not being ideal, it’s critical to understand that a T&P valve drain line *must* have a downhill grade. If your existing setup uses CPVC, you can easily cut and glue a new, properly sloped line. If it’s copper, and you have soldering skills, you can modify it. If you’re uncomfortable with this step or if the existing setup is complex, there is absolutely no shame in calling a qualified plumber to handle the T&P valve and its drain line. This single component is a life-saving safety feature, and its correct installation is paramount. A professional can ensure it meets all local codes and functions perfectly.
8. Final Checks and Restoring Power
Once all plumbing connections are made, the tank is full of water, and the T&P valve drain line is correctly installed:
- Leak Check: Carefully inspect all connections you’ve made for any signs of water leaks. Feel around each joint with your hand or place a piece of paper towel to check for moisture. If you find a leak, try tightening the connection a quarter turn at a time. If it persists, you may need to drain the tank slightly, loosen the connection, reapply Teflon tape (and/or pipe dope), and re-tighten.
- Restore Power: Once you are confident there are no leaks and all connections are secure, return to your electrical panel and flip the water heater breaker back to the “ON” position.
- Set Temperature: Most electric water heaters have a thermostat dial. A common recommended setting for energy efficiency and safety is around 120°F (49°C). Consult your owner’s manual for specific instructions on adjusting the temperature.
- Initial Heating Cycle: Allow the water heater to complete its first heating cycle, which can take several hours depending on the tank size and initial water temperature.
- Final Hot Water Check: After the heating cycle, test a hot water faucet in your home to ensure you have a consistent supply of hot water at the desired temperature.
Troubleshooting Common Installation Issues
Even with careful planning, minor issues can arise. Knowing how to troubleshoot them can save you time and potential headaches.
Dealing with Leaks
Leaks are the most common issue after a DIY water heater installation. Don’t panic if you spot one!
- Minor Drips: Often, a minor drip means a connection isn’t quite tight enough. Turn off the cold water supply to the heater and use a wrench to carefully tighten the leaky fitting a bit more (a quarter turn at a time).
- Persistent Leaks at Supply Lines: If tightening doesn’t work, or if the leak is significant, you’ll need to turn off the cold water supply, drain some water from the tank to relieve pressure, and then loosen the connection. Inspect the rubber gasket inside the flex line nut. Is it seated correctly? Is it damaged? If necessary, replace the gasket. Reapply Teflon tape to the male threads, and then re-tighten the connection carefully.
- Leaks from the Tank Itself: If water is coming from the tank’s body or seams, rather than your connections, this is likely a manufacturing defect, and you’ll need to contact the retailer or manufacturer for a replacement.
- When to Call a Plumber: If, after your best efforts, a leak persists, or if you’re unsure about the source, don’t hesitate to call a professional plumber. They can diagnose and fix the issue quickly, saving you from potential water damage. The cost for a plumber to fix a specific leak is far less than if they had to perform the entire installation from scratch, especially since you’ve handled the heavy lifting of getting the unit in place.
Gas Water Heaters: A Professional’s Job
While this guide focuses on electric water heater installation, it’s crucial to reiterate a strong warning: if you have a gas water heater, installing or connecting the gas line is absolutely a job for a licensed professional. Gas connections involve significant safety risks, including gas leaks, carbon monoxide poisoning, and explosions, if not handled correctly. Never attempt to connect a gas line yourself unless you are a certified, licensed gas plumber. The safety of your home and family is not worth the risk.
Post-Installation Maintenance Tips for Longevity
To ensure your new electric water heater operates efficiently and lasts for many years, incorporate these simple maintenance tasks into your routine:
- Annual Tank Flushing: Sediment can accumulate at the bottom of the tank, reducing efficiency and potentially leading to premature failure. Annually, drain several gallons of water from the tank via the drain valve to flush out sediment.
- Anode Rod Inspection: The anode rod attracts corrosive elements in the water, sacrificing itself to protect the tank. Inspect and replace the anode rod every 3-5 years, or more frequently if you have hard water, to prevent tank corrosion.
- T&P Valve Testing: Briefly lift and release the lever on the T&P relief valve once a year to ensure it’s not stuck and functions correctly. Be prepared for a small amount of hot water to discharge.
- Insulate Pipes: Insulating the first few feet of hot and cold water pipes connected to the heater can further reduce heat loss and improve efficiency.
Embrace the DIY Spirit: The Rewards of Installing Your Own Water Heater
Successfully installing your own electric water heater is a highly rewarding experience. Not only will you save hundreds, potentially thousands, of dollars in labor costs, but you’ll also gain a deeper understanding of your home’s plumbing and electrical systems. There’s immense satisfaction in knowing you’ve completed a significant home improvement project yourself, ensuring your family has reliable hot water thanks to your own efforts.
With this detailed guide and a bit of determination, you’ve proven that not all homeowners are helpless when it comes to essential repairs and upgrades. You’ve empowered yourself with practical skills and a sense of accomplishment. And now that the hard work is done, you can finally enjoy a well-deserved hot shower and perhaps even find a new use for that spacious cardboard box your new water heater came in!
