DIY Speaker Mounts: A Simple Guide to Wall and Ceiling Installation

Elevate your listening experience by mounting your speakers! Whether you’re setting up a new 5.1 surround sound system, optimizing a small media room, or simply aiming to fill your home with music, getting speakers off the floor and onto walls or ceilings is a game-changer. By raising your speakers to ear level and away from furniture and other surfaces that can cause unwanted resonance, you’ll enjoy improved sound clarity and a more immersive audio experience. The best part? Creating custom speaker brackets is surprisingly simple and affordable. With less than $2.00 in materials and about an hour of work, you can build sturdy and stylish mounts that perfectly suit your needs.

This guide will walk you through the process of creating DIY speaker mounts, ensuring a secure and aesthetically pleasing installation. Say goodbye to cluttered floors and hello to a cleaner, better-sounding home entertainment setup!

Why Mount Your Speakers?

Before diving into the how-to, let’s explore the benefits of mounting your speakers:

Improved Sound Quality: Elevating speakers to ear level optimizes sound projection, delivering a more direct and accurate audio experience.
Space Saving: Wall or ceiling-mounted speakers free up valuable floor space, especially beneficial in smaller rooms.
Reduced Resonance: Mounting speakers prevents unwanted vibrations and resonance caused by furniture or other surfaces.
Aesthetic Appeal: A clean and organized setup enhances the overall look of your home theater or listening area.
Enhanced Immersion: Proper speaker placement creates a more immersive and engaging surround sound experience.

Materials You’ll Need

Here’s a list of the materials required to create two speaker mounts. Adjust quantities as needed for additional speakers.

Mountable Speakers: Choose speakers designed for mounting, typically featuring a threaded insert on the back. Surround sound speakers are a great option.
Dowel Rod (1 1/2″): A wooden dowel rod will serve as the support structure for the mount.
MDF or Plywood: Two pieces of medium-density fiberboard (MDF) or plywood, cut to approximately the size of your speaker’s back panel.
Wood Glue: For securely bonding the dowel rod to the MDF or plywood.
Clamps or Heavy Objects: To hold the pieces together while the glue dries.
Bolts (10-32, 2″ Length): Two bolts to attach the speaker to the mount.
Electric Drill: For drilling pilot holes and creating openings for the bolts and speaker wire.
Drill Bits: Assorted drill bits in various sizes, including 5/32″ (or 3/16″) and 1/4″.
Countersink Bits (Optional): For creating a flush finish when attaching the mounts to the wall.
Drywall Screws (#2): Eight drywall screws for securing the mounts to the wall.
Paint (Optional): To match your speakers or wall color.

Step-by-Step Guide to Building Your Speaker Mounts

Follow these steps to create your custom speaker mounts:

Prepare the MDF/Plywood:

Begin by cutting your MDF or plywood pieces to the same size as the back panel of your speakers. This will provide a solid base for the mount.

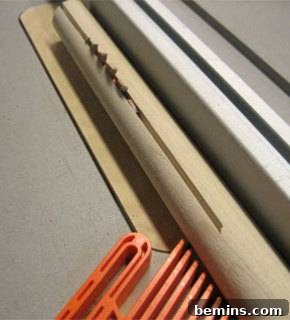

Cut the Dowel Rod:

Cut, or have cut at your local hardware store, the dowel rod approximately 2/5s deep along its length. This creates a flat surface for attaching to the MDF/plywood.

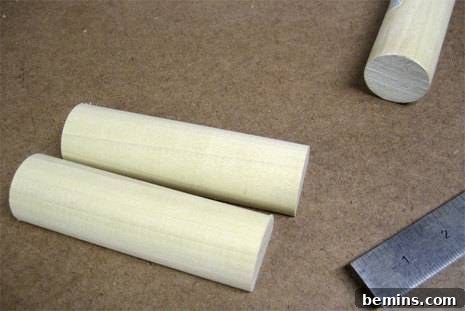

Cut the Sliced Dowel:

Cut the sliced dowel piece to the same size as your MDF/plywood rectangles. This ensures a consistent and secure attachment.

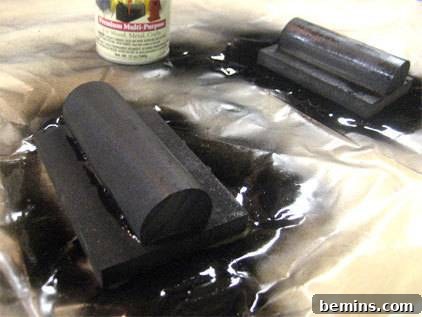

Glue and Paint:

Apply wood glue to the flat side of the cut dowel and attach it to the MDF/plywood rectangle. Use clamps or heavy objects to hold the pieces together while the glue dries completely. Once dry, paint the assembled mount black to match your speakers, or choose a color that complements your walls.

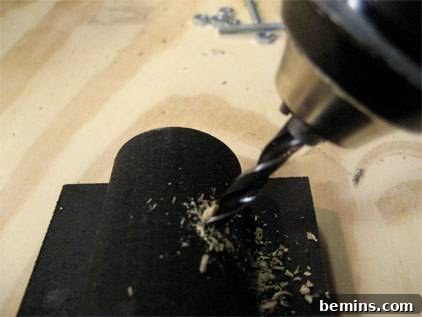

Drill Bolt Hole:

After the paint has dried, use a 5/32″ or 3/16″ drill bit to create a hole through the dowel and MDF/plywood, aligning it with the threaded insert on the back of your speaker. Choose the drilling angle based on your desired speaker mounting angle. Insert the bolts through this hole.
Drill Wire and Mounting Holes:

Drill a 1/4″ hole through the entire assembly to accommodate your speaker wire, positioning it near the input jacks on your speaker. Then, drill pilot holes into each corner of the MDF/plywood for mounting. Countersink the holes if desired for a cleaner finish.

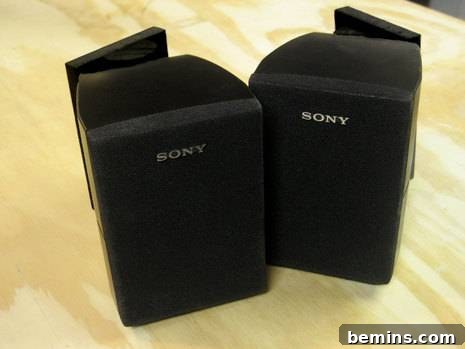

Mount the Brackets:

Using appropriate drywall anchors, mollies, or other wall fasteners, mount the speaker brackets onto the wall. Thread the speaker wire through the 1/4″ hole before fully tightening the screws. Attach your speakers to the brackets using the bolts, connecting the speaker wire, and spinning the speaker until secure.
Enjoy Your Music!

Step back and admire your handiwork. Now, crank up the volume and enjoy your favorite tunes with improved sound quality and a clutter-free space!

Tips for Success

Here are a few additional tips to ensure a successful speaker mounting experience:

Measure Carefully: Accurate measurements are crucial for proper speaker placement and alignment. Use a level to ensure the mounts are installed straight.
Choose the Right Fasteners: Select wall anchors or fasteners appropriate for your wall type to ensure a secure and stable mount.
Consider Wire Management: Plan your wiring route to minimize visible cables. Use cable concealers or run wires through the wall for a cleaner look.
Experiment with Angle: Adjust the speaker angle to optimize sound projection based on your listening area.
Safety First: Always prioritize safety when working with power tools and electrical wiring. Disconnect power before working with any electrical components.

By following these steps and tips, you can create custom speaker mounts that enhance your listening experience and improve the aesthetics of your home. Enjoy the process and the satisfying results of your DIY project!
