DIY Moroccan-Inspired Side Table: Add Exotic Elegance to Your Home

Have you ever stumbled upon a thrift store find that just screamed potential? I recently had that experience when I discovered a large, somewhat gaudy, brushed-brass tray. While it wasn’t quite my style as it was, I knew with a little creativity, I could transform it into something truly special. Thus, the idea for this DIY Moroccan-inspired side table was born!

DIY Moroccan-Inspired Side Table - The finished product, showcasing its elegant design
The completed Moroccan-inspired side table, a stylish addition to any room.

This project is perfect for anyone looking to add a touch of exotic elegance to their home decor without breaking the bank. The combination of the sleek black legs and the intricate brass tray creates a visually stunning piece that is both functional and stylish. Plus, the collapsible design makes it incredibly versatile for small spaces or for those who like to rearrange their furniture frequently.

Materials You’ll Need

To create your own Moroccan-inspired side table, you’ll need the following materials and tools. Remember, safety first! Always wear appropriate safety gear when working with power tools.

  • 1/2″ MDF: This will be used to create a template for the legs, ensuring consistent and accurate cuts.
  • 3/4″ Plywood: This will be used for the actual legs of the side table, providing a sturdy and durable base.
  • 1″ Pocket Hole Screws: These screws are essential for creating strong and hidden joints when assembling the template.
  • Brass Tray: The star of the show! Look for a round brass tray at thrift stores, flea markets, or online marketplaces like Etsy. Choose a size that suits your needs and aesthetic preferences.
  • Flat Black Spray Paint: This will give the legs a modern and sleek look, contrasting beautifully with the brass tray.
  • Table Saw: Used for making precise straight cuts in the MDF and plywood.
  • Kreg Pocket Hole Jig: Essential for creating pocket holes for strong and concealed joints.
  • Router with Flush Trim Router Bit: This tool is used to precisely cut the legs of the table using the template.
  • Band Saw: Used for making curved cuts and removing excess material when creating the notches in the legs.
  • Hammer: Helpful for tapping the chisel into the wood when creating the notches.
  • Wood Chisel: Used for refining and cleaning up the notches in the legs.
  • File: Used for smoothing and shaping the edges of the notches.
  • Sandpaper: Essential for smoothing all the wooden surfaces before painting.
  • Measuring Tape or Speed Square: For accurate measurements and marking.
  • Double-Sided Tape: To temporarily adhere the template to the plywood.
  • Safety Glasses and Hearing Protection: Always prioritize safety when working with power tools.

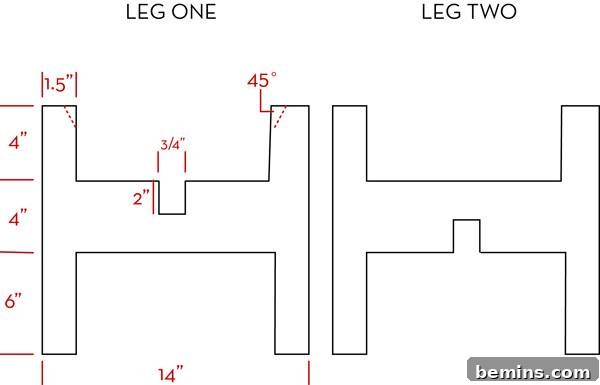

Diagram for DIY Moroccan-Inspired Side Table
A helpful diagram illustrating the key dimensions and construction of the side table.

Step-by-Step Instructions: Crafting Your Moroccan-Inspired Side Table

Now that you have all your materials and tools ready, let’s dive into the step-by-step instructions for creating your own stunning Moroccan-inspired side table.

1. Creating the Template

The template is crucial for ensuring that the legs of your side table are identical and accurately shaped. Follow these steps to create a precise template using MDF.

  1. Rip MDF Strips: Using the table saw, set the fence at 1/2″ from the blade and rip two strips of MDF at least 2′ long. Then, set the fence 4″ from the blade and rip one strip of MDF 2′ long. Alternatively, you can have these cuts made at your local hardware store.
  2. Cut Strips to Length: Using the miter gauge, cut the 1/2″ strips to 14″ long and the 4″ strip to 11″ long.
  3. Drill Pocket Holes: Use the Kreg pocket hole jig to drill two pocket holes in each end of the 4″ strip.
  4. Assemble the Template: Arrange the three pieces as shown in the diagram (or the provided images) and screw them together using 1″ pocket hole screws. This completes your template.

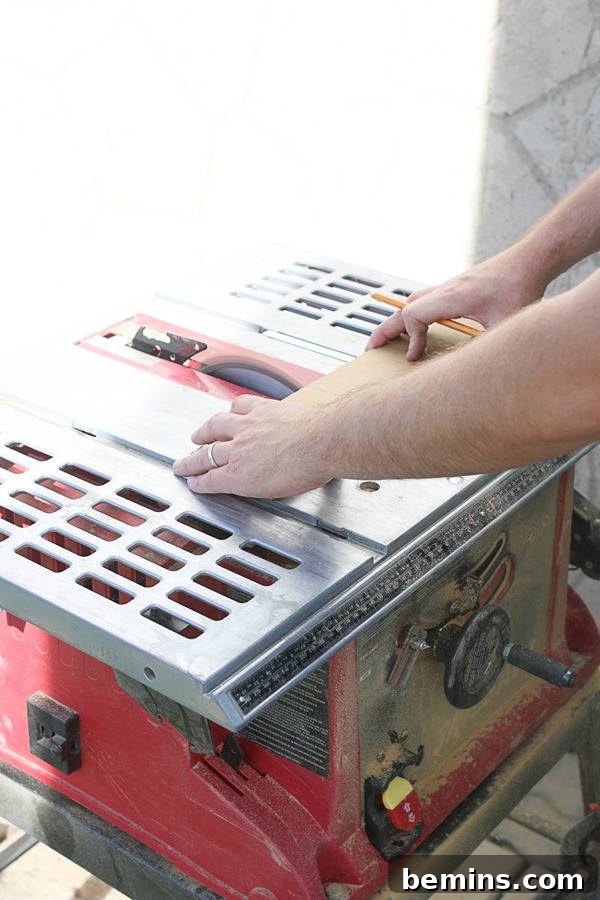

Preparing MDF for the Template
Cutting MDF strips to create the template for the table legs.
Cutting MDF Strips to Length
Using a miter gauge to precisely cut the MDF strips to the correct length.

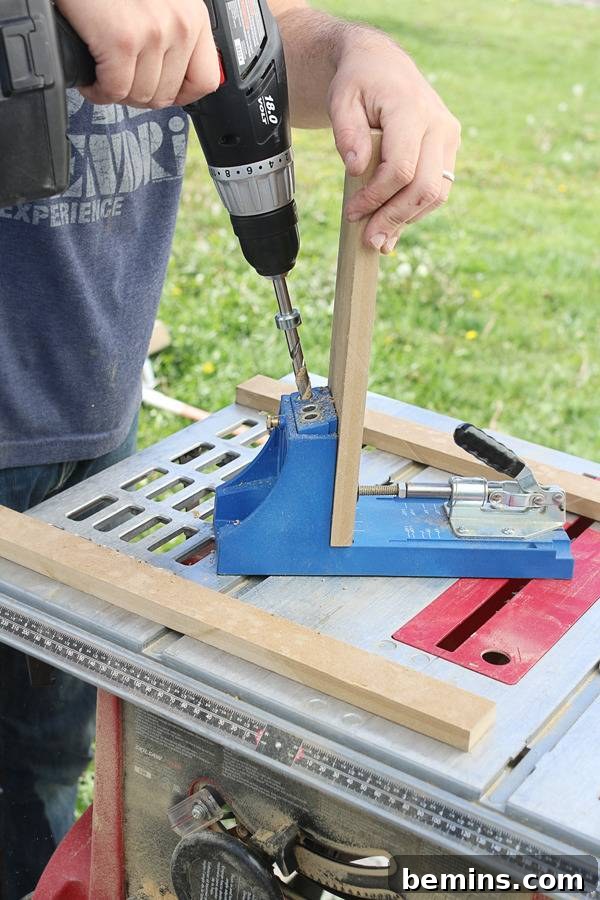

Drilling Pocket Holes in MDF
Using a Kreg pocket hole jig to drill pocket holes for easy assembly.

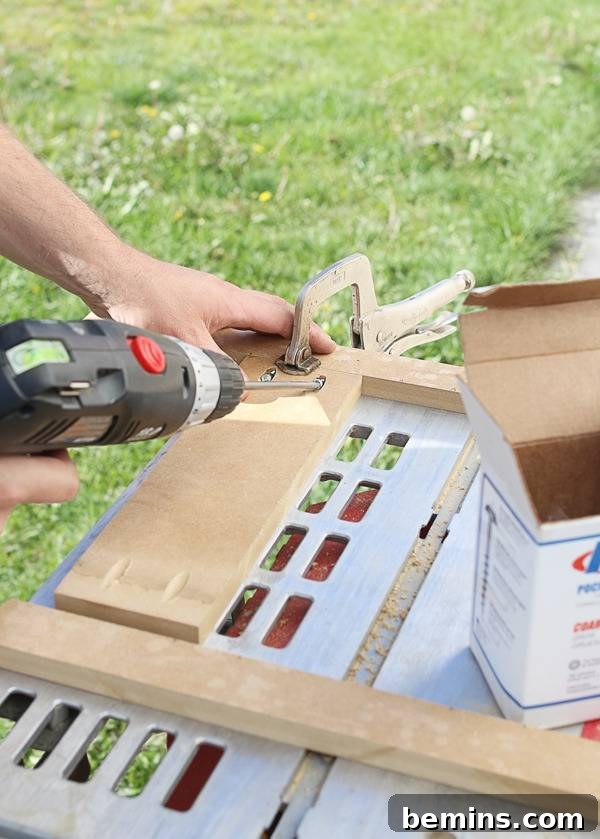

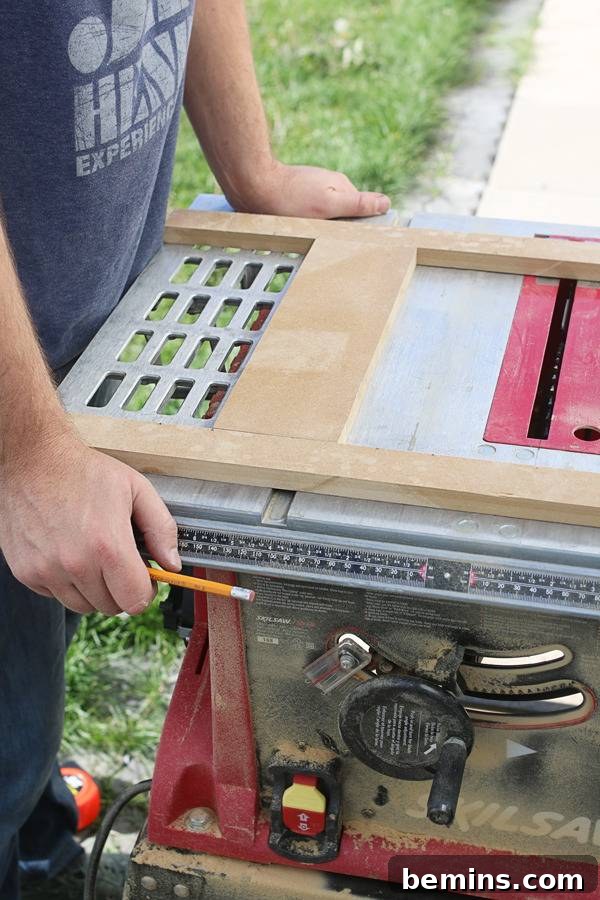

Assembling the MDF Template
Assembling the template pieces using pocket hole screws.

2. Cutting the Legs

Now that you have your template, it’s time to cut out the legs from the 3/4″ plywood.

  1. Adhere Template to Plywood: Securely attach the template to the 3/4″ plywood using double-sided tape. Make sure the template is firmly adhered to prevent any shifting during the routing process.
  2. Cut Out the Legs: Using the router with a flush trim router bit, carefully cut out the first leg. Repeat the process to create the second leg. The flush trim router bit will follow the shape of the template, ensuring a perfect replica.

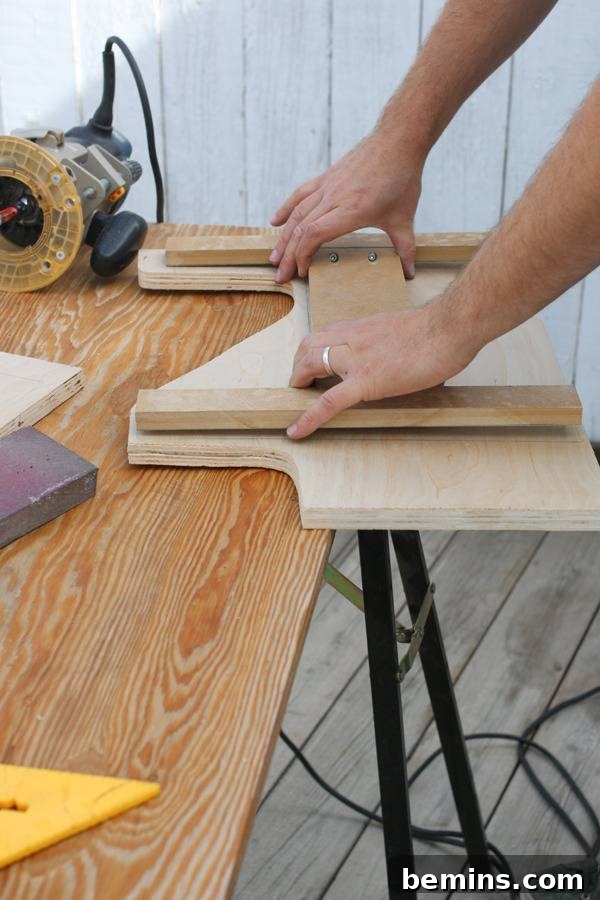

Attaching Template to Plywood
Attaching the MDF template to the plywood using double-sided tape.

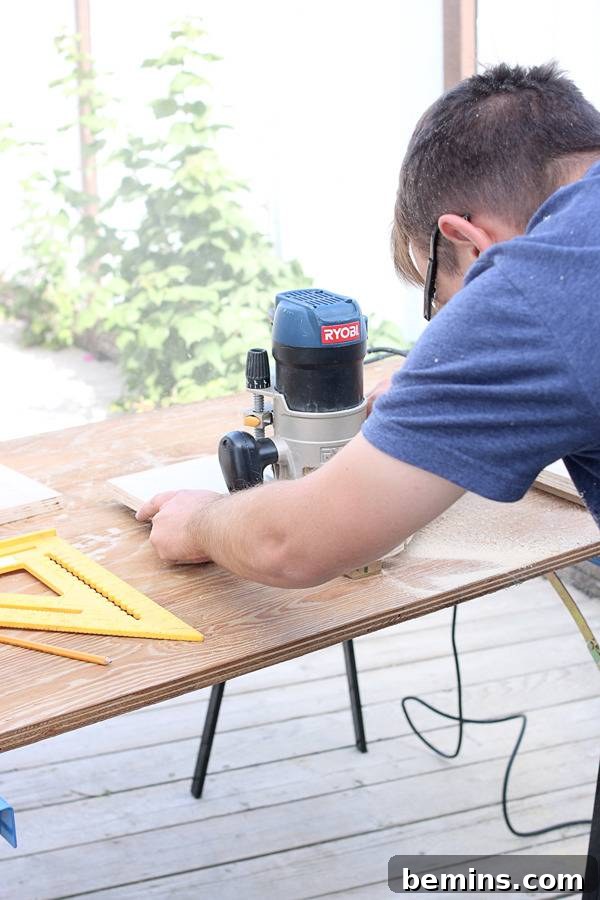

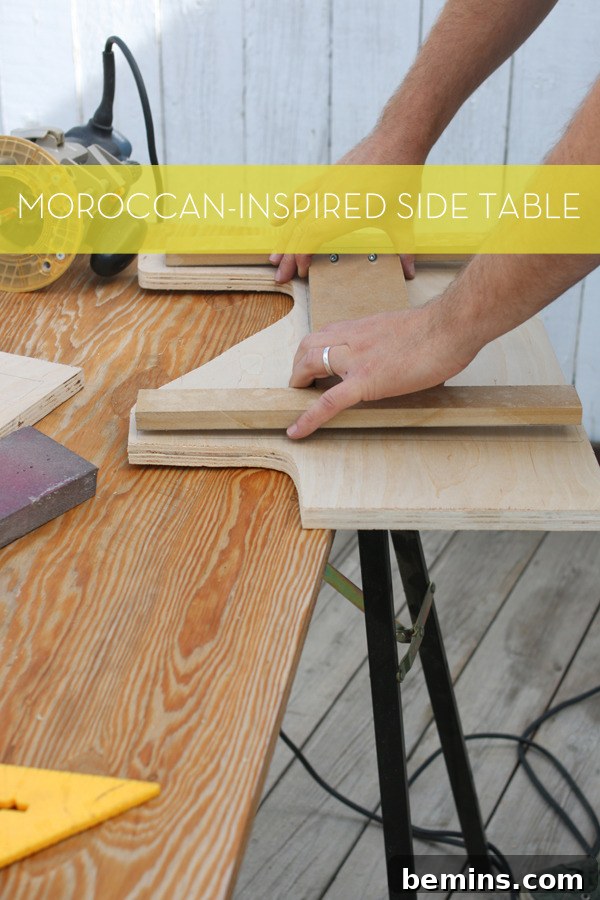

Cutting Legs with Router
Using a router with a flush trim bit to cut out the legs from the plywood.

3. Creating the Notches

The notches are essential for creating a stable and interlocking base for the side table. Follow these steps to create accurate and well-fitting notches.

  1. Mark Notch Locations: Find the halfway point on the crossbar of each leg. Mark it using a speed square or measuring tape. The notch should measure 3/4″ wide (the thickness of your plywood) and 2″ deep. Remember that these notches should be at the top of the crossbar on one leg and the bottom of the crossbar on the other leg, allowing them to interlock like a puzzle.
  2. Cut Kerfs with Band Saw: On your band saw, cut a series of kerfs (shallow cuts) within the marked-out notch area on both legs. These kerfs will make it easier to remove the waste material.
  3. Refine Notches with Chisel and File: Use a wood chisel and file to carefully remove the remaining material and refine the notches to their final dimensions. Ensure the notches are smooth and clean for a snug fit.

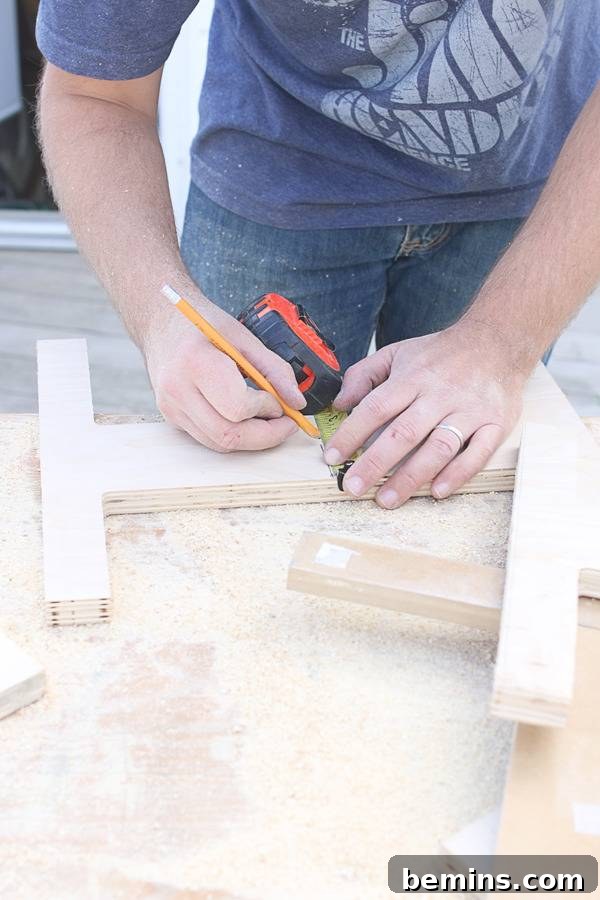

Marking Notch Locations
Marking the locations for the notches on the table legs.

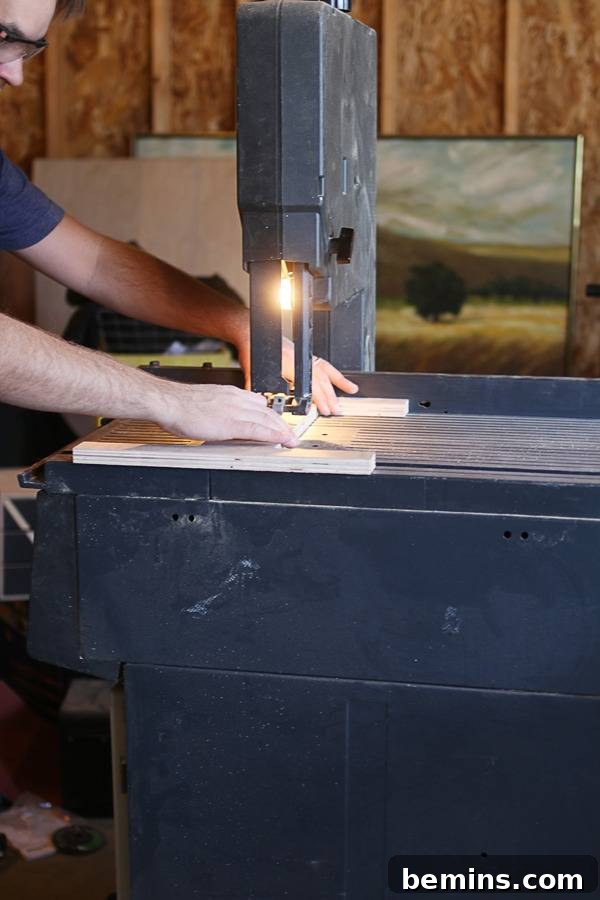

Cutting Kerfs with Band Saw
Using a band saw to cut kerfs within the notch area.

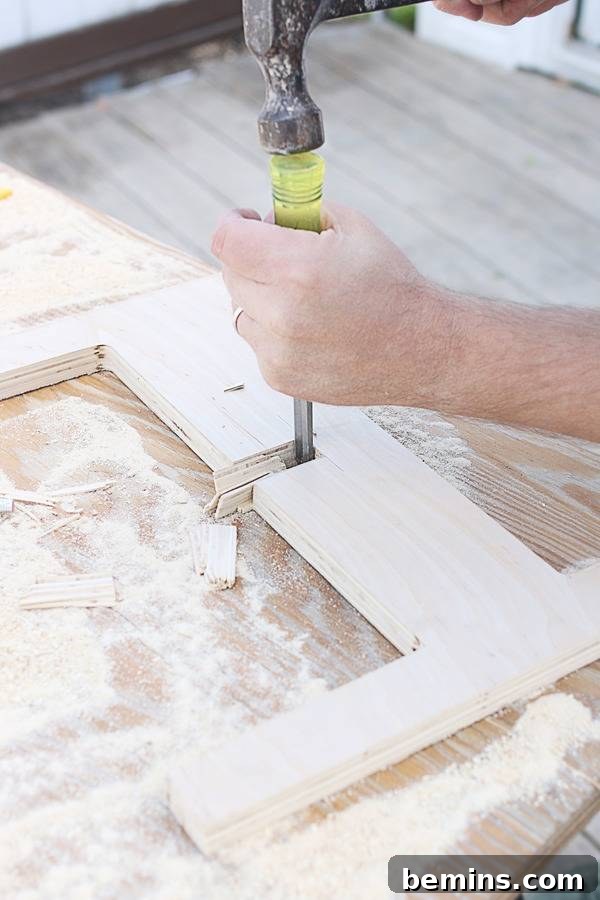

Chiseling Notches
Refining the notches with a chisel and hammer.

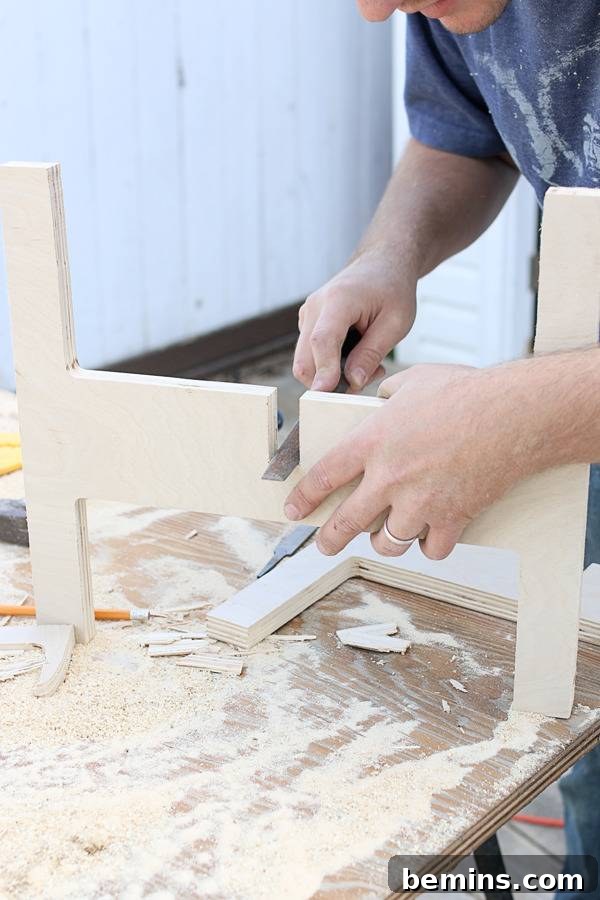

Filing Notches
Using a file to smooth the edges of the notches.

4. Preparing for the Tray

The final step before painting is to prepare the tops of the legs to securely hold the brass tray.

  1. Measure Tray Bevel: Measure the bevel of your brass tray. This will determine the angle you need to cut on the tops of the legs.
  2. Cut Bevels on Legs: Cut two corresponding bevels on the tops of the legs using a saw. The goal is to create a snug fit for the tray.
Measuring Tray Bevel
Measuring the bevel angle of the brass tray.

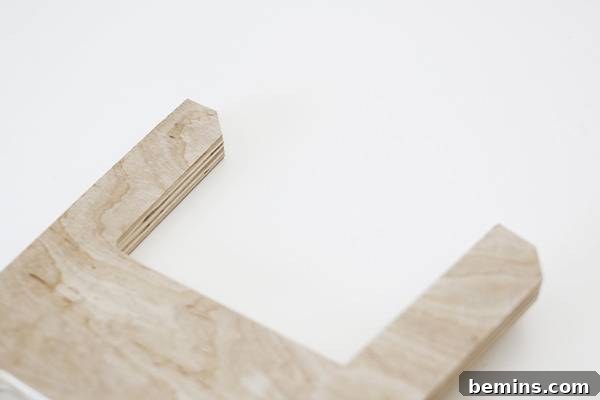

Cutting Bevels on Legs
Cutting bevels on the tops of the legs to accommodate the tray.

5. Sanding and Painting

With all the pieces cut and prepared, it’s time to give your side table a sleek and modern finish.

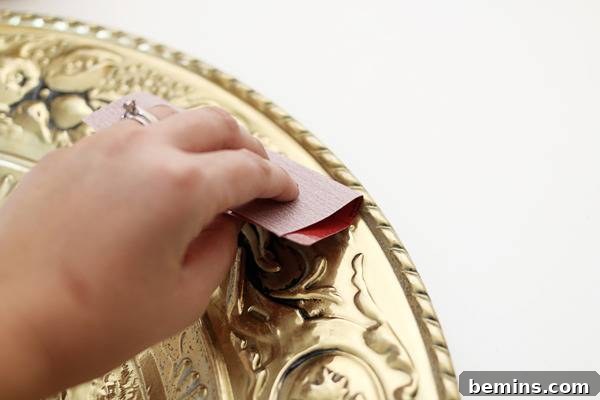

  1. Sand All Pieces: Thoroughly sand all three pieces of your table (both legs and the tray) to create a smooth surface for painting.
  2. Wipe Down with Damp Cloth: Wipe all the pieces with a damp cloth to remove any sanding dust.
  3. Spray Paint: Apply several thin coats of flat black spray paint to all the wooden pieces. Allow each coat to dry completely before applying the next. This will prevent drips and ensure an even finish.
Sanding the Table Legs
Sanding the legs to create a smooth surface for painting.

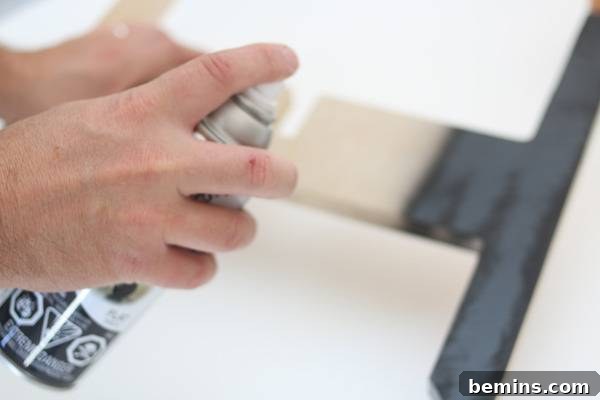

Spray Painting Table Legs
Applying flat black spray paint to the table legs.

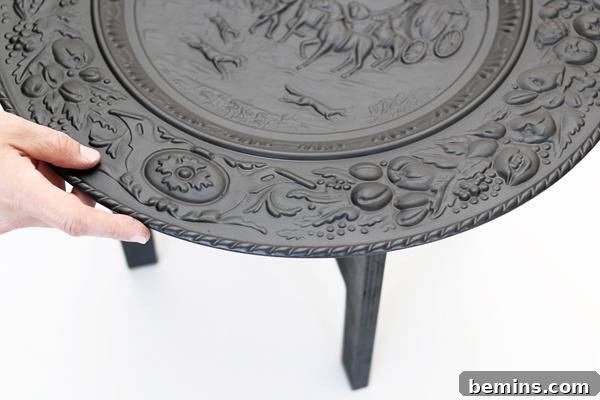

Painted Table Legs
The table legs after being painted flat black.

6. Assembly and Enjoy!

The final step is to assemble the legs and place the tray on top.

  1. Assemble the Legs: Interlock the two legs according to the notches you created. The notches should fit snugly together, creating a stable base.
  2. Place the Tray: Carefully place the brass tray on top of the legs, ensuring it sits securely in the beveled cutouts.
  3. Enjoy Your New Side Table! Step back and admire your beautiful new Moroccan-inspired side table!

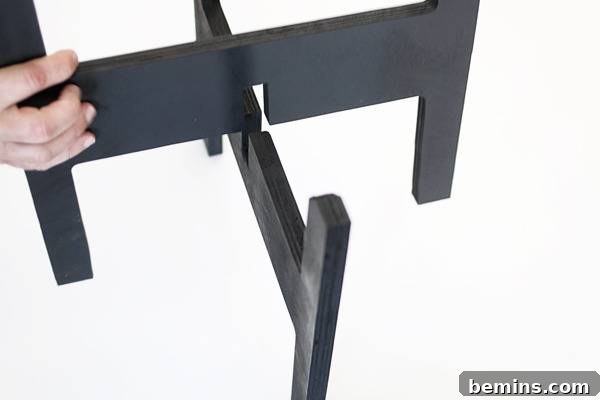

Assembling the Table
Assembling the table legs by interlocking the notches.
Finished Moroccan Inspired Side Table
The completed Moroccan-inspired side table, ready to add a touch of exotic elegance to your home.

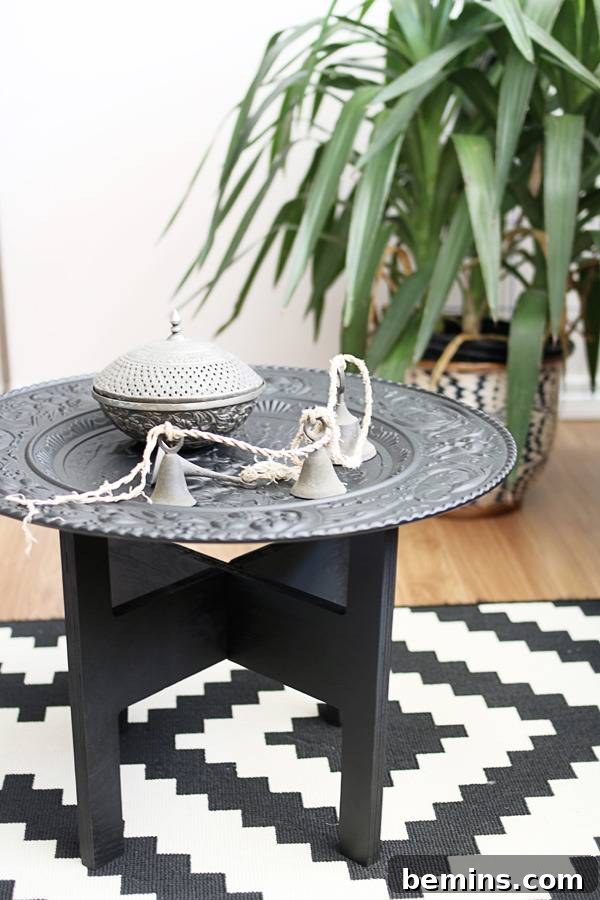

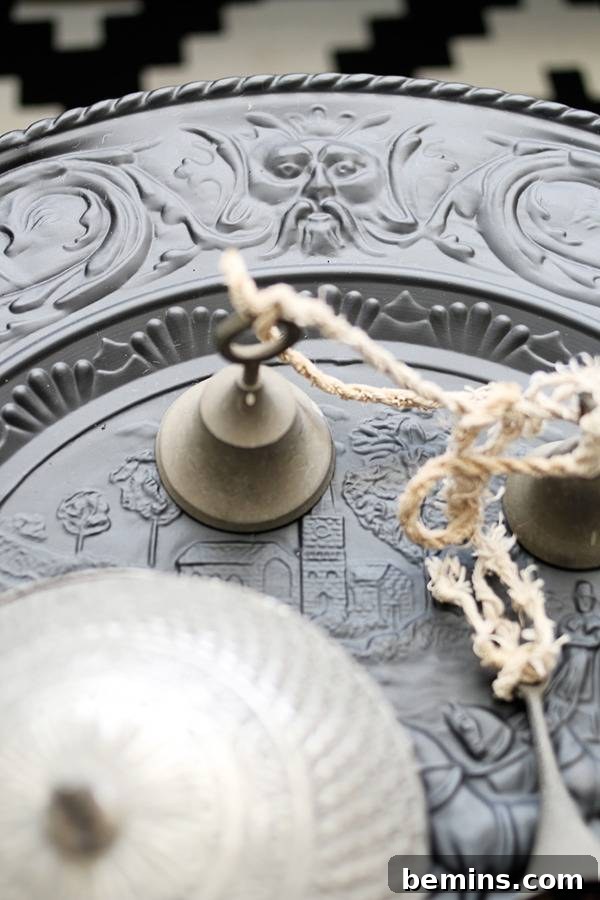

Moroccan Inspired Side Table - Detail
A close up detailing the brass tray.

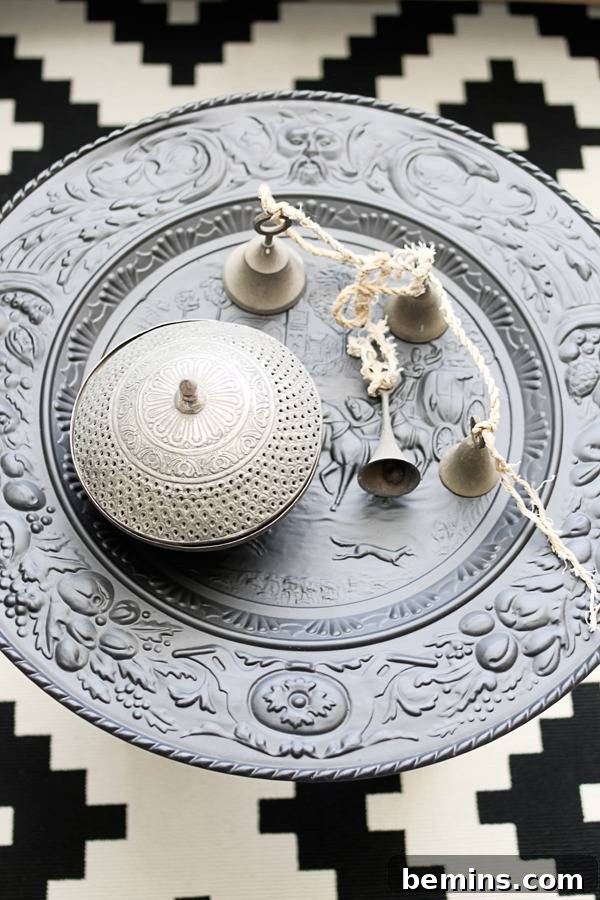

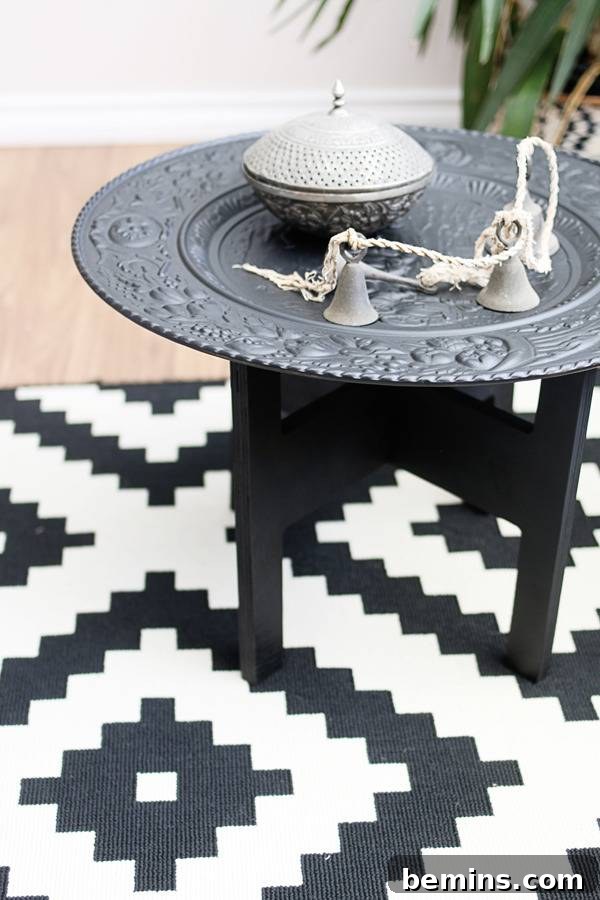

Moroccan Inspired Side Table - Home Decor
The finished table in a home decor setting.

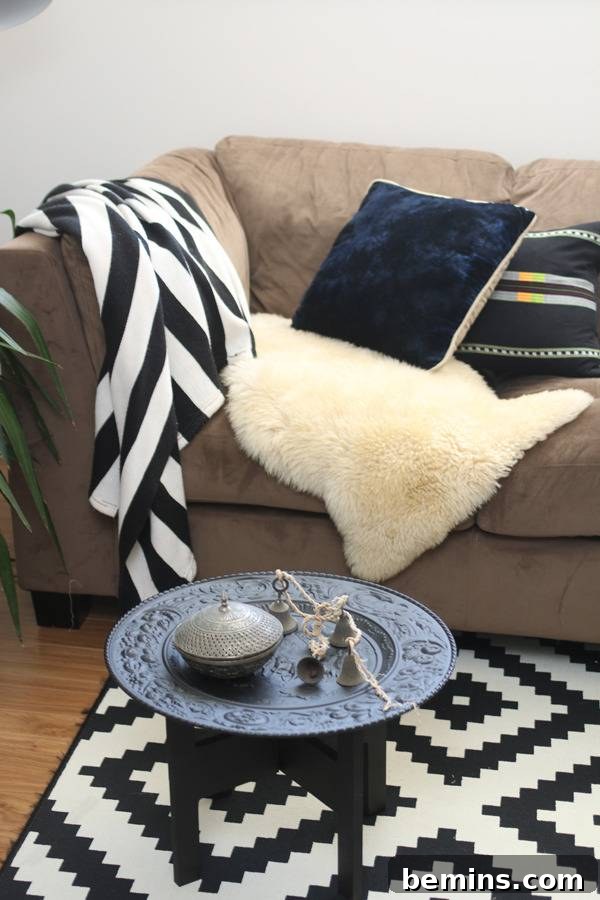

Moroccan Inspired Side Table - Collapsed View
The table can be easily collapsed for easy storage or transport.

Why This DIY Project is Perfect for You

This DIY Moroccan-inspired side table project is more than just a furniture build; it’s a chance to express your creativity and add a unique, personalized touch to your home. While the instructions might seem lengthy, the process is surprisingly straightforward, making it accessible for DIY enthusiasts of all skill levels. The end result is a stunning piece that combines modern aesthetics with exotic charm.

The black finish offers a neutral backdrop that seamlessly blends into a wide range of interior design styles. Whether your home boasts a minimalist, bohemian, or contemporary vibe, this side table will find its place. Furthermore, the brass tray is full of beautiful details and character, infusing texture and warmth into any room. One of the best parts? You can quickly collapse the table for extra space or a quick change of scenery.

So, what are you waiting for? Gather your materials, unleash your inner craftsman, and create a gorgeous and functional piece that will elevate your home decor!
