The home office is almost complete! Just a few finishing touches remain, and
I can finally enjoy the space. All the heavy lifting – the building,
painting, staining, and sanding – is done. Now, it’s time to focus on the
details that will make the room truly shine.

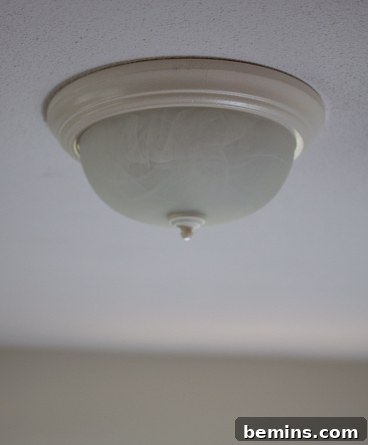

One of those details is the ceiling fixture. I’ve been searching for a way to
update the existing light without completely replacing it. Let’s be honest,
most of the standard ceiling lights aren’t exactly stylish.
I did come across a few… creative ideas online. One project suggested adding
a beaded “bra” to the fixture. While amusing, it wasn’t quite the look I was
going for. It still looked like the original fixture, just with some added
embellishments.
Another popular approach involved removing the glass cover and attaching a
barrel shade to the original flange. This was done by drilling holes and
using wires to secure the shade.
While the results were decent, I wanted something a bit more refined. The
shade couldn’t sit flush against the ceiling because of the space needed for
wiring. Some tutorials suggested reaching inside the shade to do the wiring,
but that wouldn’t work for me. I knew I wanted a baffle at the bottom of the
shade for a cleaner look, and it had to be a proper baffle, not just a piece
of poster board.
That’s when the idea of using earth magnets struck me. These powerful magnets
can hold a surprising amount of weight. I realized they could be the perfect
solution for attaching the shade without any complicated wiring or visible
hardware. Before you begin, please ensure that the metal on your existing
light fixture (the flange) is magnetic. This is crucial for the project to
work.

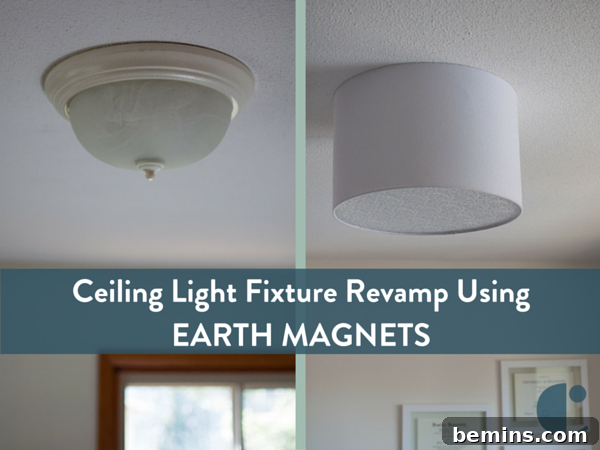

DIY Magnetic Ceiling Light Fixture: A Stylish Upgrade
This tutorial will guide you through the steps to transform your existing
ceiling light into a modern and stylish fixture using magnets. It’s a simple,
affordable, and renter-friendly way to update your space without any
permanent modifications.

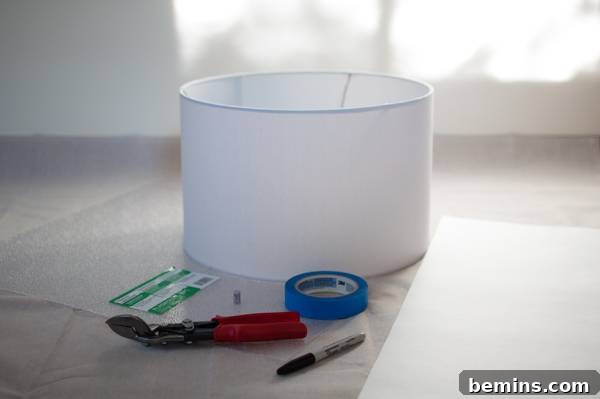

Materials You’ll Need
-
Barrel Shade with Spider Fitting: Choose a shade that’s
slightly larger in circumference than the existing light fixture’s flange. I
found mine at Home Goods for around $20. -
Two Pliers or Vice Grips: These will be used for bending
the spider wire. - Sheet of Poster Paper: For creating a template.
- Pencil: For tracing the shade’s circumference.
- Scissors: For cutting the poster paper.
- Painter’s or Masking Tape: To protect the acrylic sheet.
- Sharpie: For marking the cut line on the tape.
- Tin Snips: For cutting the spider wire.
-

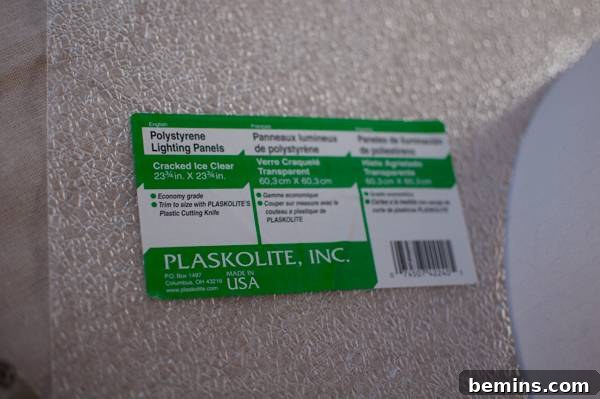

Acrylic Light Panel: This will serve as the baffle. I used
this one from Menards. -
Rare Earth Magnets: These magnets need to be strong, avoid
using regular refrigerator magnets. You’ll need one magnet for each branch
of the shade’s spider wire, typically three. I used 1/4″ earth magnets with
a 1-pound pull each, providing a combined holding force of 3 pounds. This
is more than enough for a shade of this size (around 20″). Find a good
selection on Amazon. -
CFL or LED Light Bulbs: It’s essential to use CFL or LED
bulbs, as they produce less heat. Since the fixture will be close to the
ceiling, proper ventilation is crucial.
Never use incandescent or halogen bulbs with this setup.
Step 1: Prepare the Lampshade

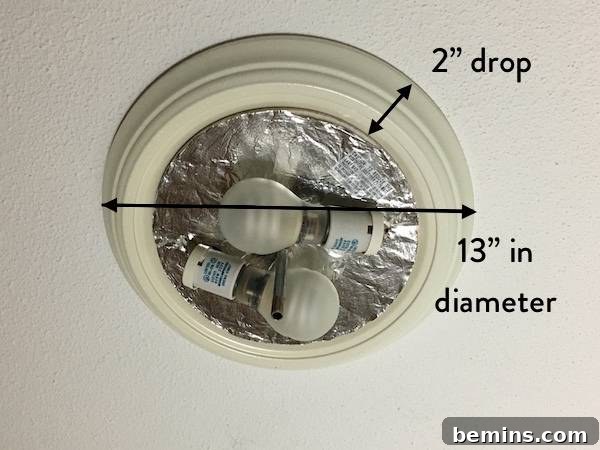

Remove the glass shade from your existing light fixture and measure the
diameter of the metal flange (the part that’s attached to the ceiling). This
measurement is important for determining how much of the spider wire to leave
intact.
Using the tin snips, carefully cut the spider wire from the inside of the new
lampshade. Make sure to leave enough of the wire to reach the flange of your
ceiling fixture and comfortably curve to match the angle of the ceiling.
For example, my fixture’s flange was 13″ in diameter with a 2″ drop, and my
lampshade was 15″ in diameter. I left about 4″ of the spider wire intact.
Refer to the image in step two for a visual reference.
Step 2: Bend the Spider Wire

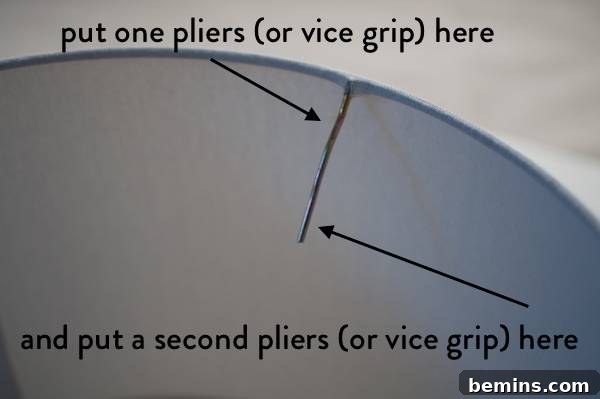

Now, use the pliers or vice grips to bend the spider wire. Attach one plier
to the base of the wire near the shade, and the other to the end of the wire.
It’s crucial to maintain a firm grip on the wire closest to the shade to
prevent it from moving. If the wire moves while bending, it could break.
Carefully bend the wire to match the slope of the light fixture’s flange.
Repeat this process for each remaining wire (most spider shades have three
branches).
Step 3: Create a Paper Template

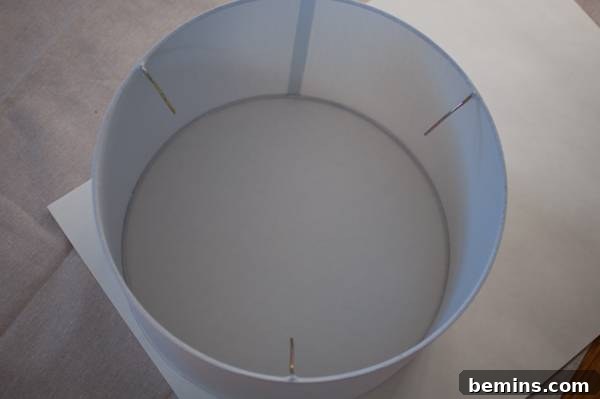

Place the lampshade on the poster board and trace the inside circumference
using a pencil.
Cut out the circular shape from the poster board, making sure to cut on the
OUTSIDE of your pencil line. This will ensure the template is slightly larger
than the shade’s opening.
Step 4: Test the Template Fit

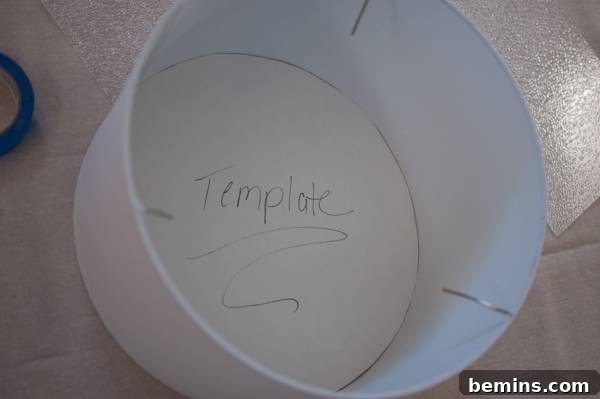

Insert the poster paper template inside the lampshade to confirm a proper fit.
Adjust the template as needed for a snug but not overly tight fit.
Step 5: Cut the Acrylic Baffle
Place the paper template on top of the acrylic sheet. To protect the acrylic,
apply a circle of painter’s or masking tape around the perimeter of the
template.
Position the template back over the tape and use a Sharpie to trace the cut
line onto the tape.
Important: Never mark directly on the acrylic with a Sharpie, as it is difficult to remove.

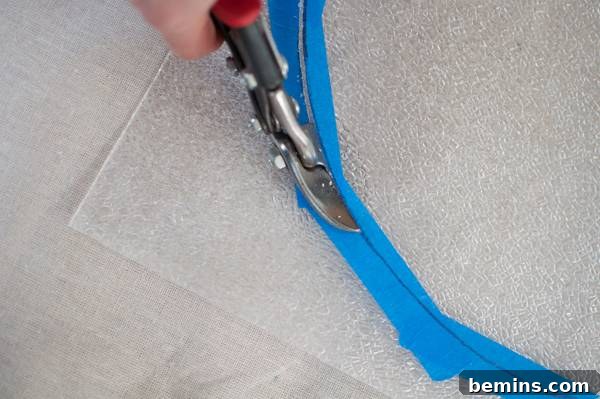

Using the tin snips, carefully cut along the Sharpie line through the tape
and acrylic.
The tape not only protects the acrylic from the Sharpie but also helps
prevent splintering during the cutting process.
Step 6: Fit the Acrylic Baffle into the Lampshade

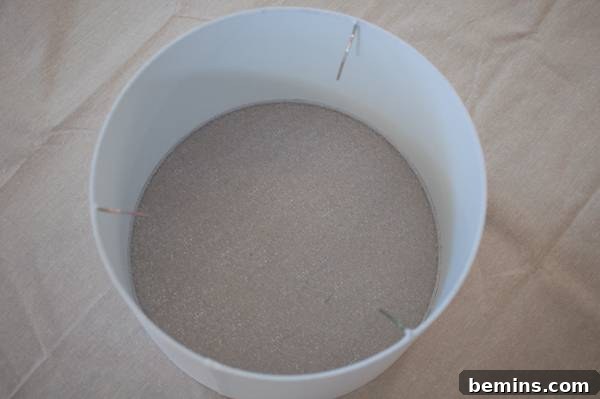

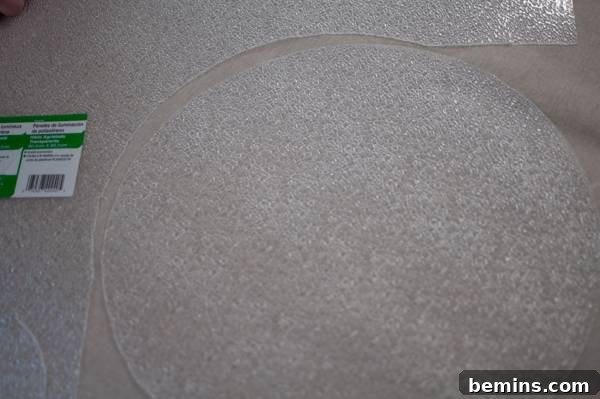

Once you’ve cut the acrylic circle, remove the tape. Carefully insert the
acrylic disk into the lampshade.
Step 7: Secure the Baffle
Gently maneuver the acrylic disk through the bottom opening of the shade and
push it into place at the bottom of the shade from inside and above. It
should fit snugly against the inside of the shade.
Step 8: Attach the Magnets

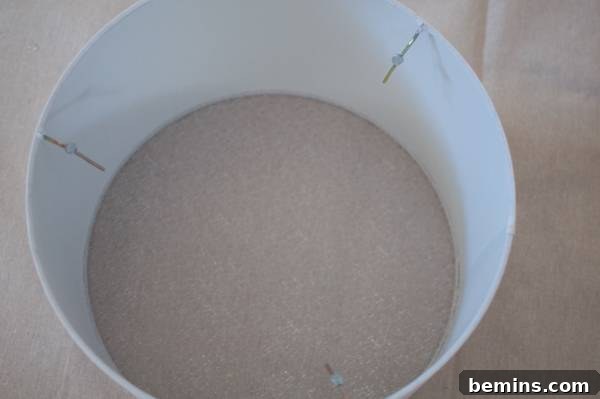

Attach one earth magnet to each of the spider wires. Make sure the magnet is
positioned in a spot that will align with the metal flange of the light
fixture when the shade is in place.
Step 9: Install the Lampshade

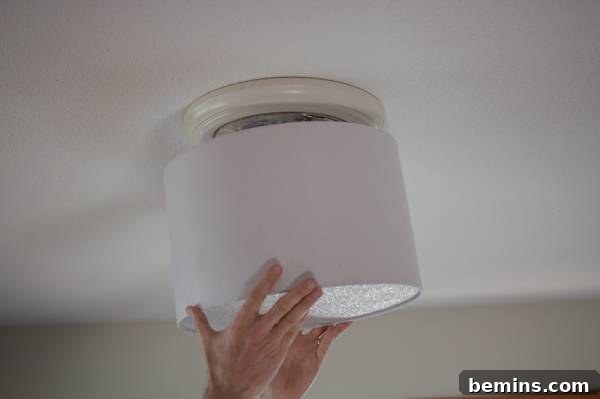

Now it’s time to position the shade onto the light fixture. Carefully align
the magnets with the metal flange. The magnets should snap into place, holding
the shade securely against the ceiling.
You might need to adjust the position slightly to find the “sweet spot” where
all the magnets are properly aligned. The magnets are surprisingly forgiving,
so don’t be afraid to experiment.
I considered using hot glue to permanently attach the magnets to the wire, but
the magnets are so strong that it wasn’t necessary. The shade is easily
removable with a gentle tug if you need to change the bulb or service the
fixture.
I’ve installed two of these fixtures, and one has been up for over two
months without budging. However, if you have children who throw balls or other
objects, a direct hit could dislodge the shade. In such cases, you might
consider using stronger magnets or, ideally, discourage throwing things
indoors.
With the shade installed, you’re finished! Enjoy your newly updated,
stylish ceiling light fixture.

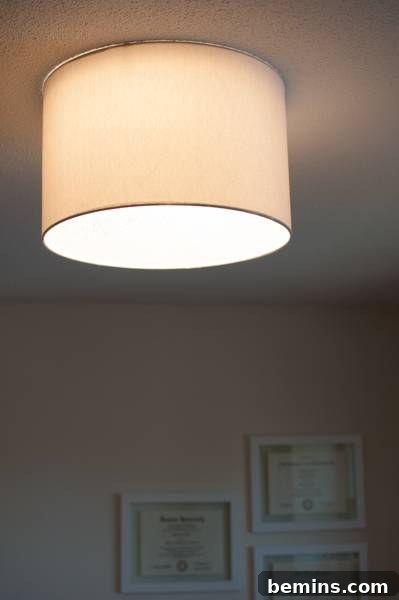

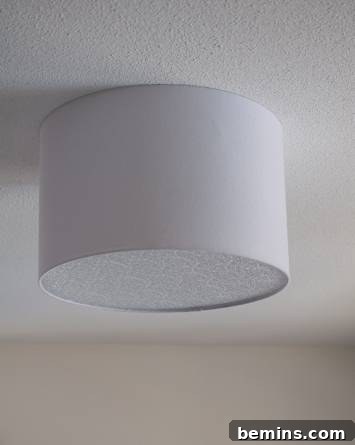

The light is now diffused beautifully and sits flush with the ceiling,
offering a sleek and modern look.
