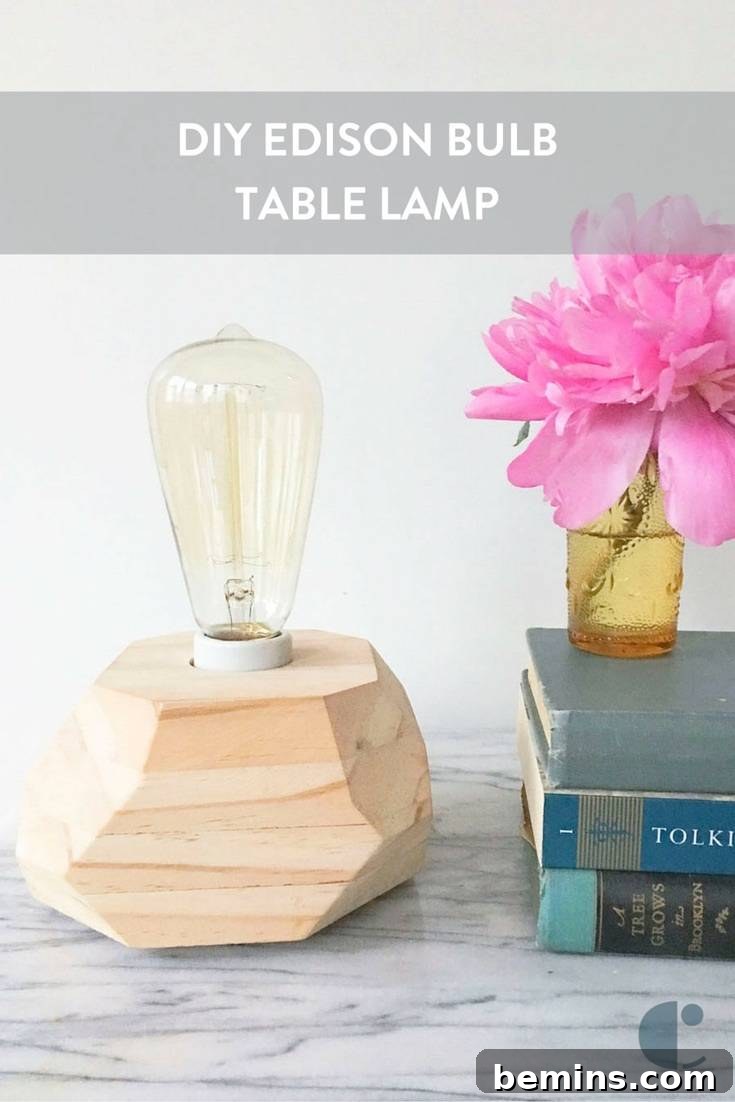

DIY Edison Bulb Table Lamp: A Step-by-Step Guide
Edison bulb table lamps offer a unique blend of minimalism and vintage charm. Their warm, inviting glow makes them ideal for side tables, bedside stands, or bookshelves. If you’re looking for a simple yet stylish lighting solution, crafting your own wood-block Edison bulb table lamp is an excellent project. This guide breaks down the process into manageable steps, perfect for those with basic woodworking skills and a desire to explore electrical installation.
Ready to bring a touch of industrial elegance to your home? Let’s dive into the materials you’ll need and the step-by-step instructions for creating your own stunning Edison bulb table lamp.

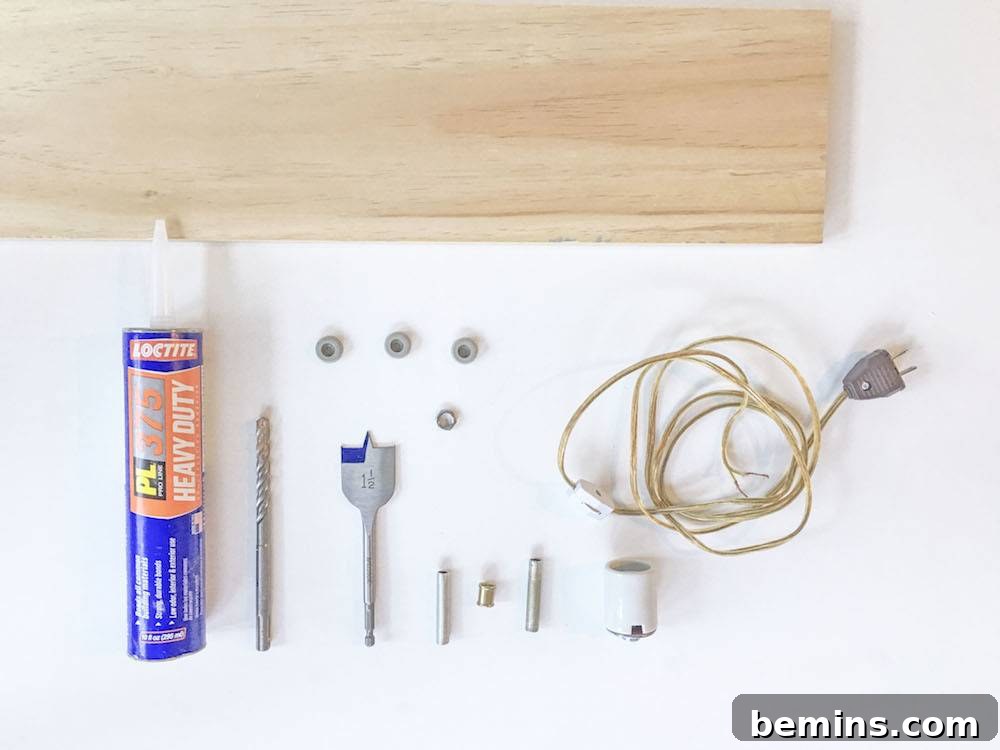

Materials You’ll Need
- 2 ft 1×6 Board: This will form the base of your lamp. Choose a wood type that complements your decor.
- Drill: A power drill is essential for creating precise holes.
- 1 1/2″ Spade Bit: This bit is used to create a recess for the lamp socket.
- 5/8″ Spade Bit: Used for creating a hole that allows the bottom of the porcelain socket to sit flush.
- Drill Bit (for lamp pipe): Choose a bit size appropriate for the diameter of your threaded lamp pipe.
- Loctite Adhesive (or Wood Glue): For securely bonding the wood pieces together.
- Porcelain Lamp Socket: This is where your Edison bulb will be housed. Look for a socket with a medium (E-26) base. You can find one at Grand Brass.
- Lamp Cord: You can repurpose a cord from an old lamp or purchase a new one. Consider a cord with a rotary switch for easy on/off control. Amazon has options here.
- Threaded Lamp Pipe: The length depends on the size of your wood block. Lowe’s carries various sizes here.
- Rubber Feet (Small Furniture Pads): These will protect your surfaces and allow space for the cord.
- Screwdriver: A small Phillips head screwdriver is needed for installing the light fixture.
- Miter Saw: For making accurate and angled cuts.
- Sander or Sandpaper: To smooth out the wood surfaces.
- Wood Clamps: To hold the wood pieces securely while the adhesive dries.
- Hot Glue or Super Glue: If your furniture pads don’t have adhesive backing.
- Stain or Paint (Optional): To customize the look of your lamp base.
Step-by-Step Instructions: Crafting Your Edison Bulb Table Lamp
Follow these detailed steps to create your unique Edison bulb table lamp. Remember to prioritize safety and work in a well-lit and ventilated area.
Step 1: Cutting the Wood Squares

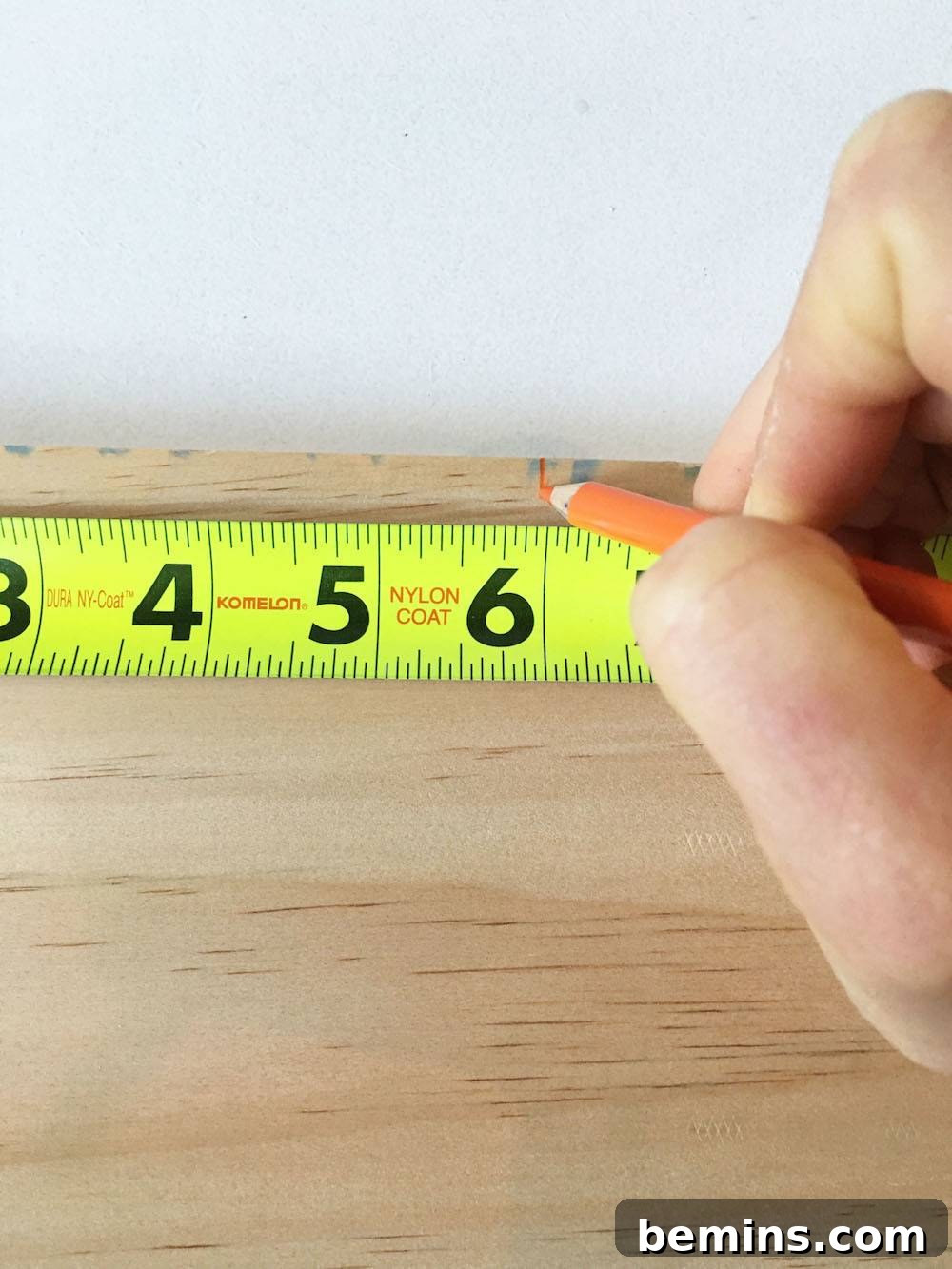

Begin by measuring and marking your 1×6 board every 6 inches. This will give you four equal squares. These squares will be stacked to create the base of your lamp.
Step 2: Cutting the Squares

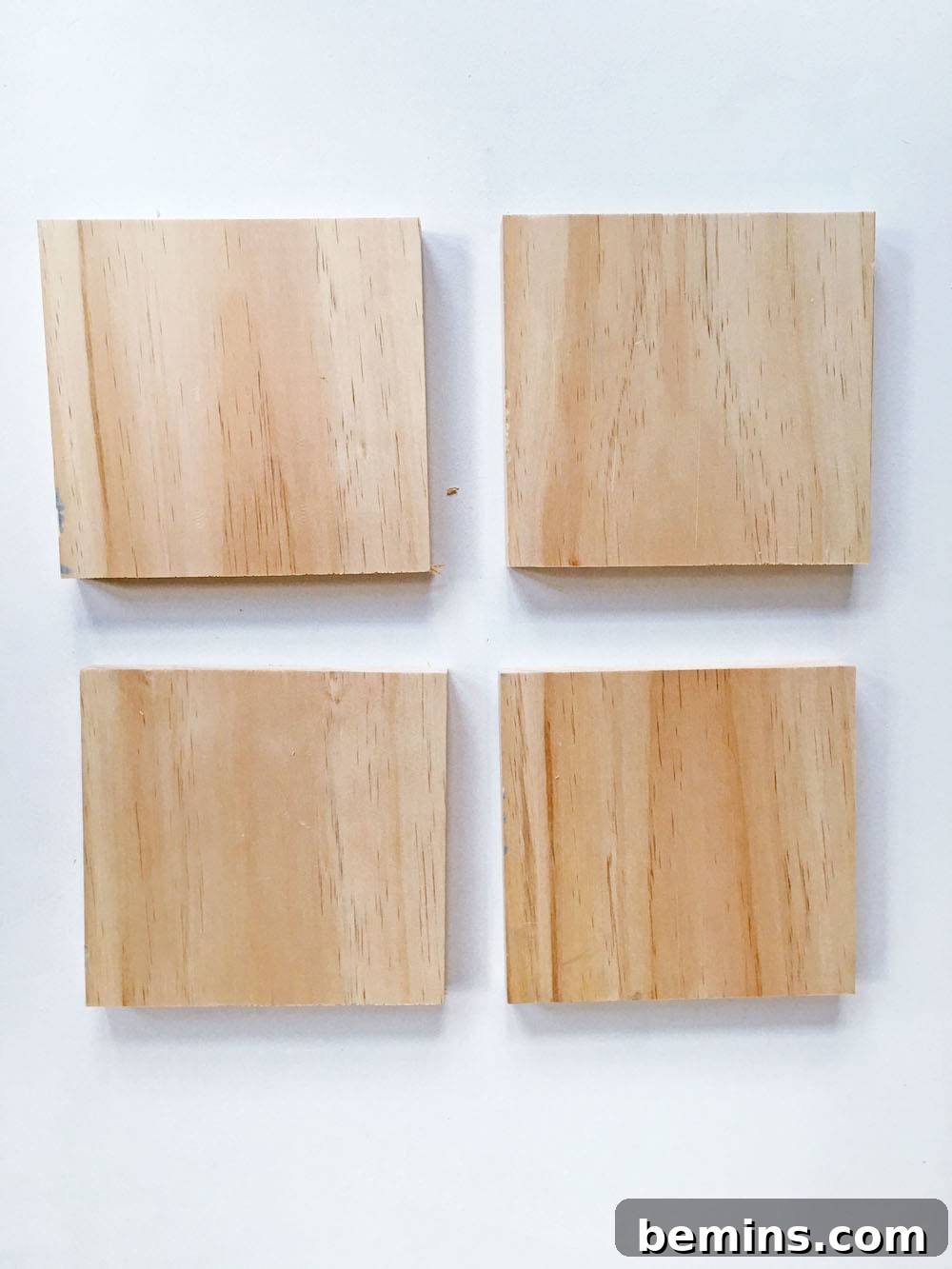

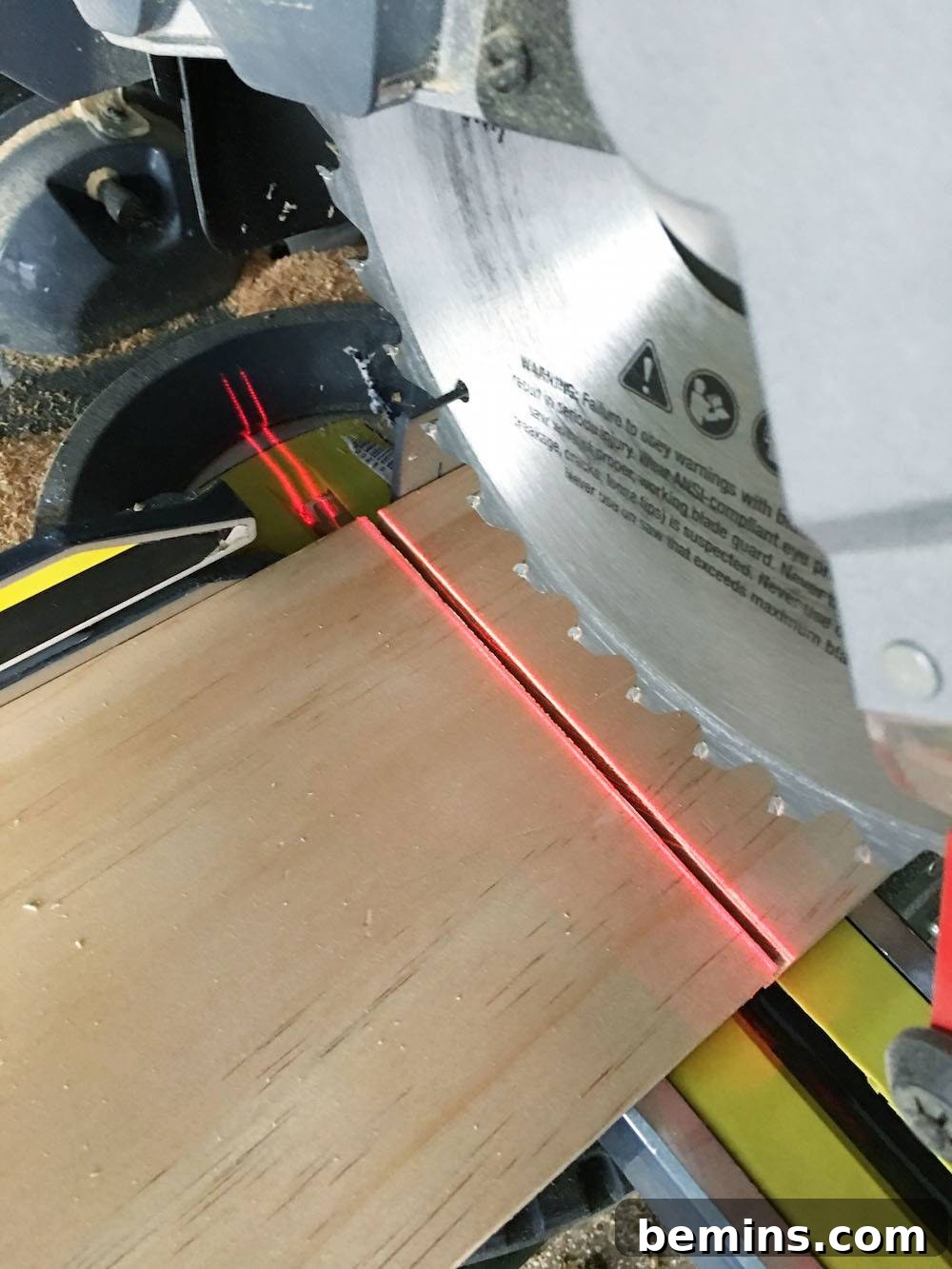

Using your miter saw, carefully cut along the marked lines to create your four 6-inch squares. Ensure each cut is straight and clean for a professional finish.
Step 3: Assembling the Wood Block

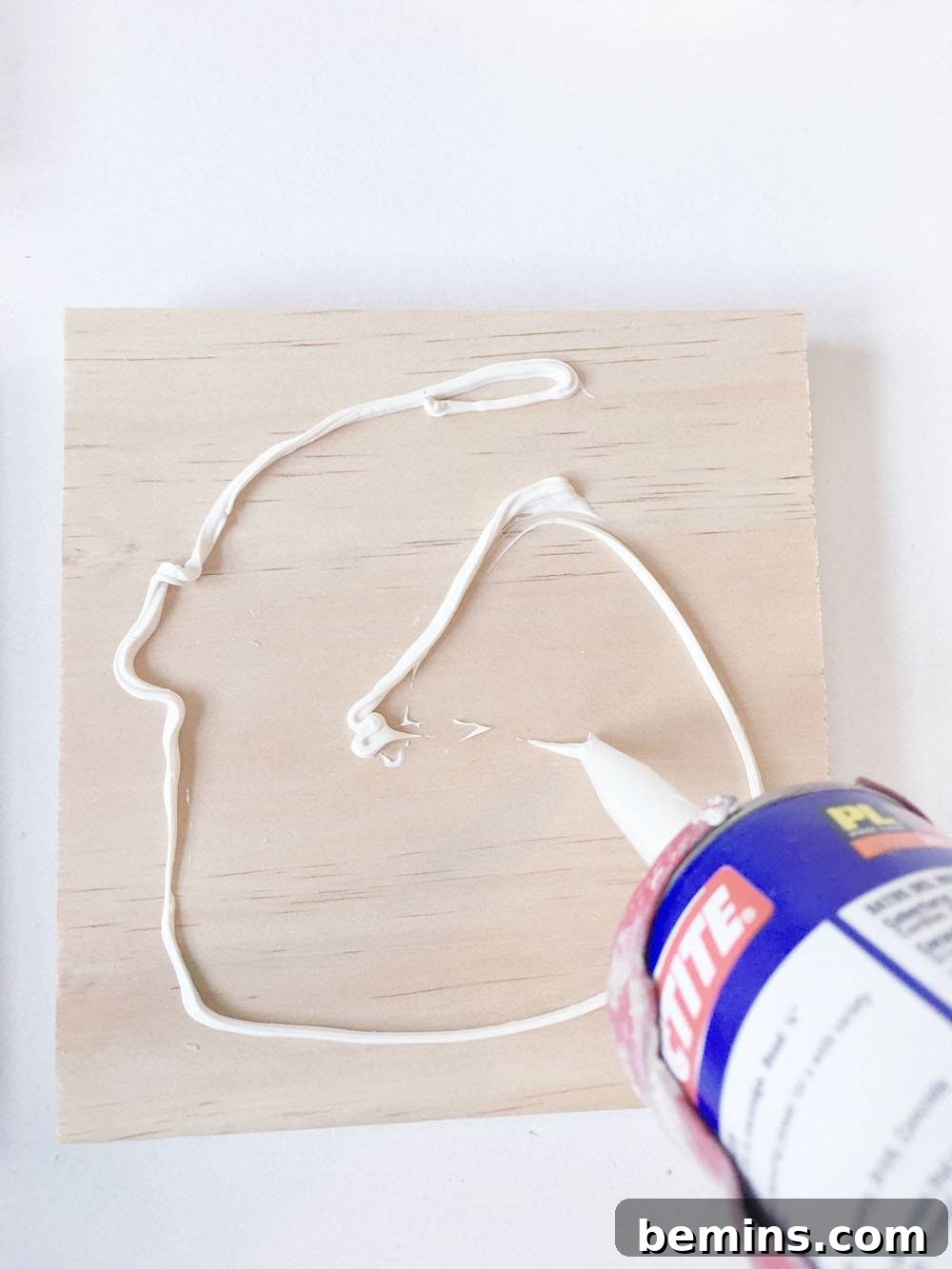

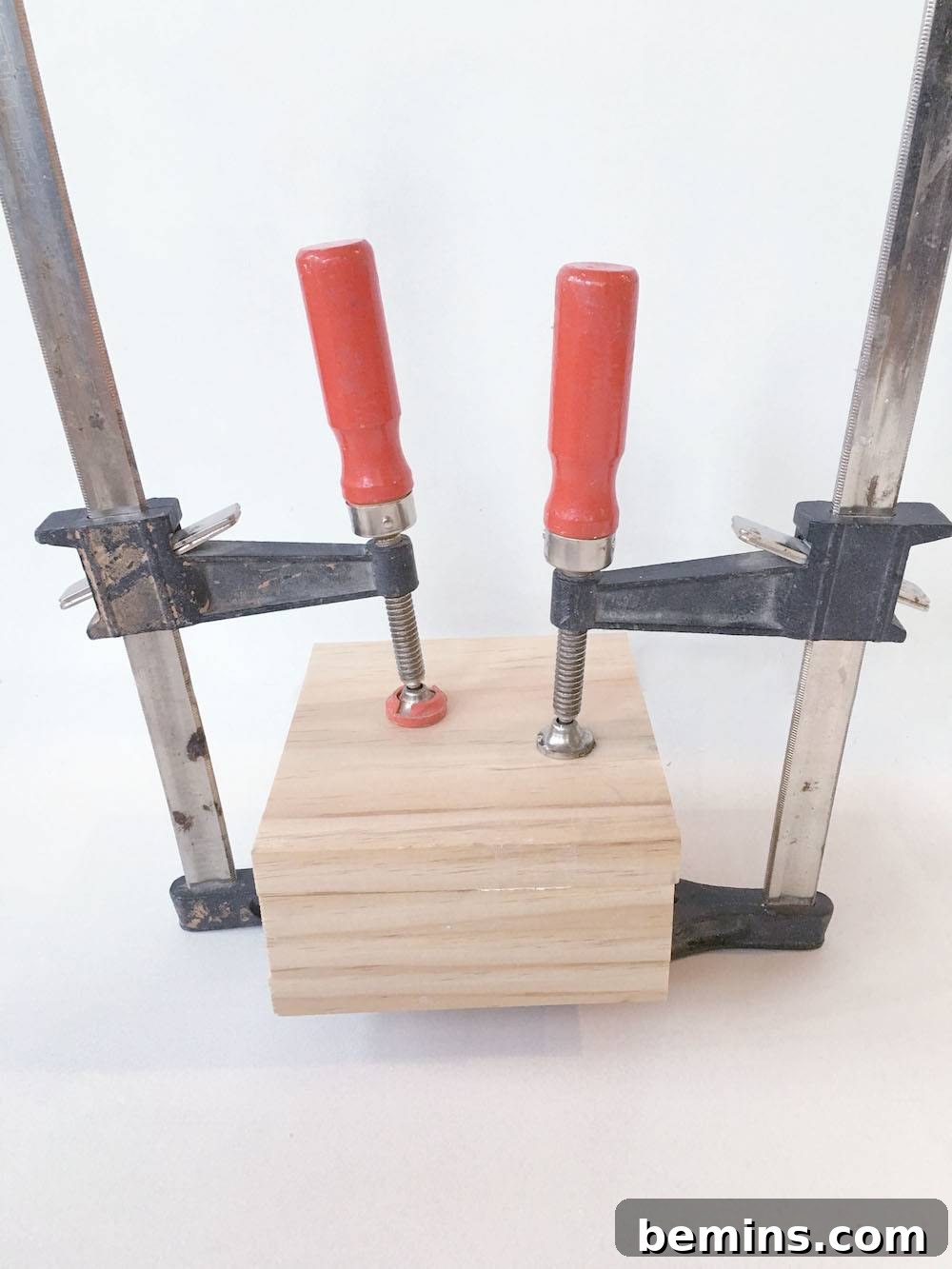

Apply Loctite adhesive or wood glue to one side of each square. Stack the squares together, ensuring they are aligned. Use wood clamps to hold the pieces firmly in place while the adhesive dries completely. This will create a solid wood block.
If the edges of the wood block are uneven after the adhesive dries, use your miter saw to trim them for a clean, uniform shape.
Step 4: Marking the Cuts

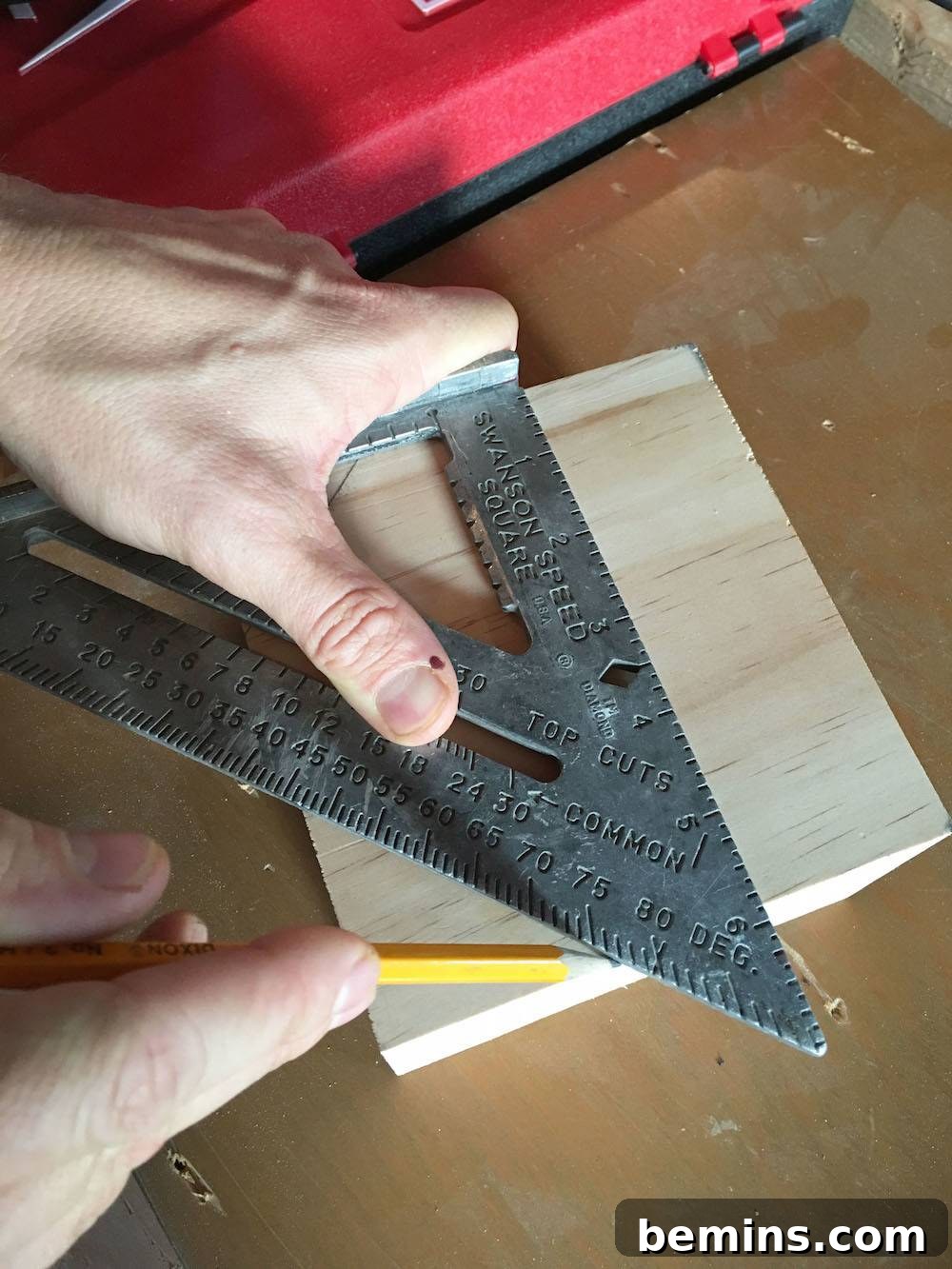

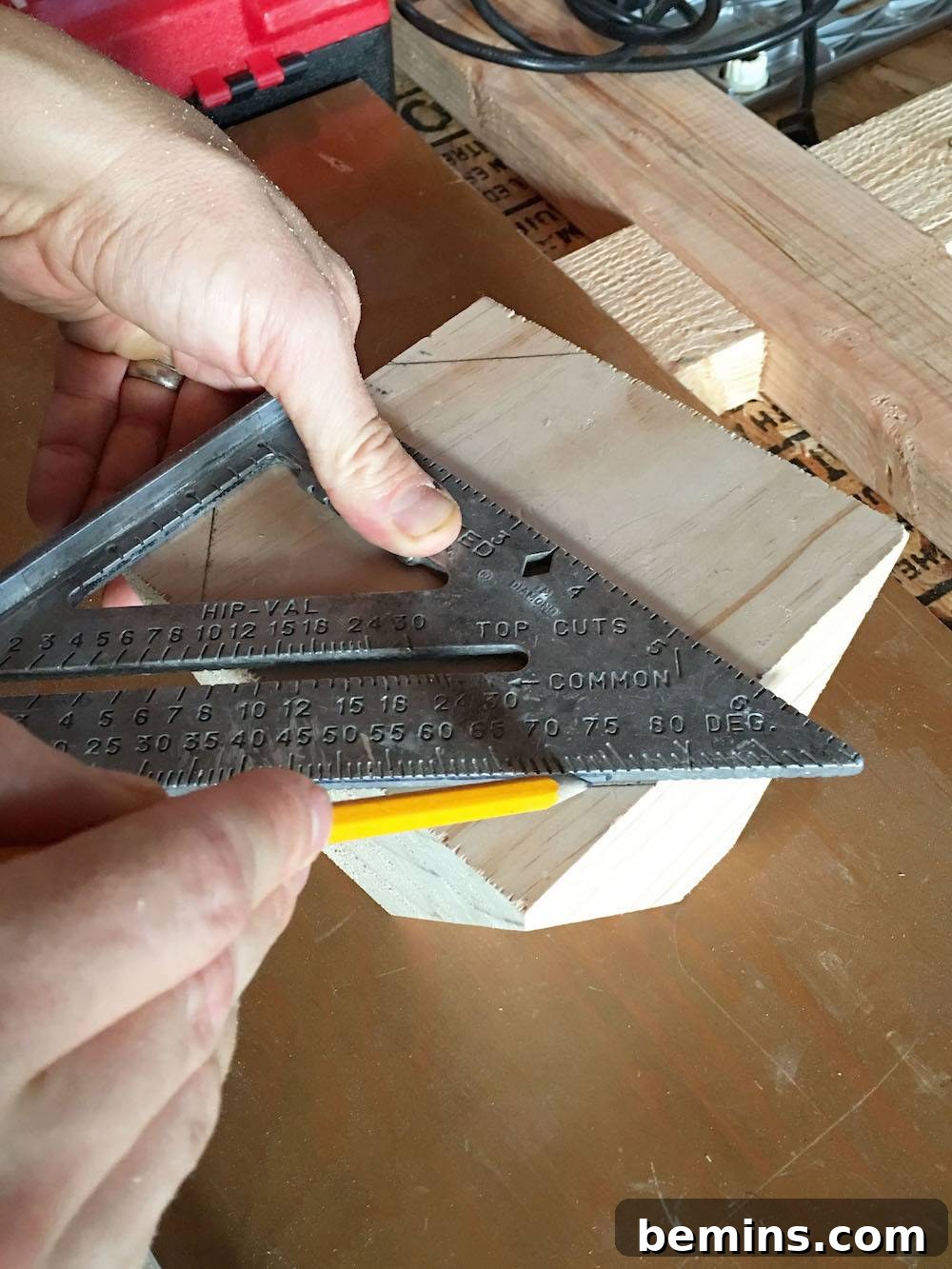

Once the block is dry and any unevenness has been corrected, use a ruler to draw lines on the corners of the block. These lines will guide your angled cuts. The lines don’t need to be symmetrical; a random pattern can add to the lamp’s unique character.

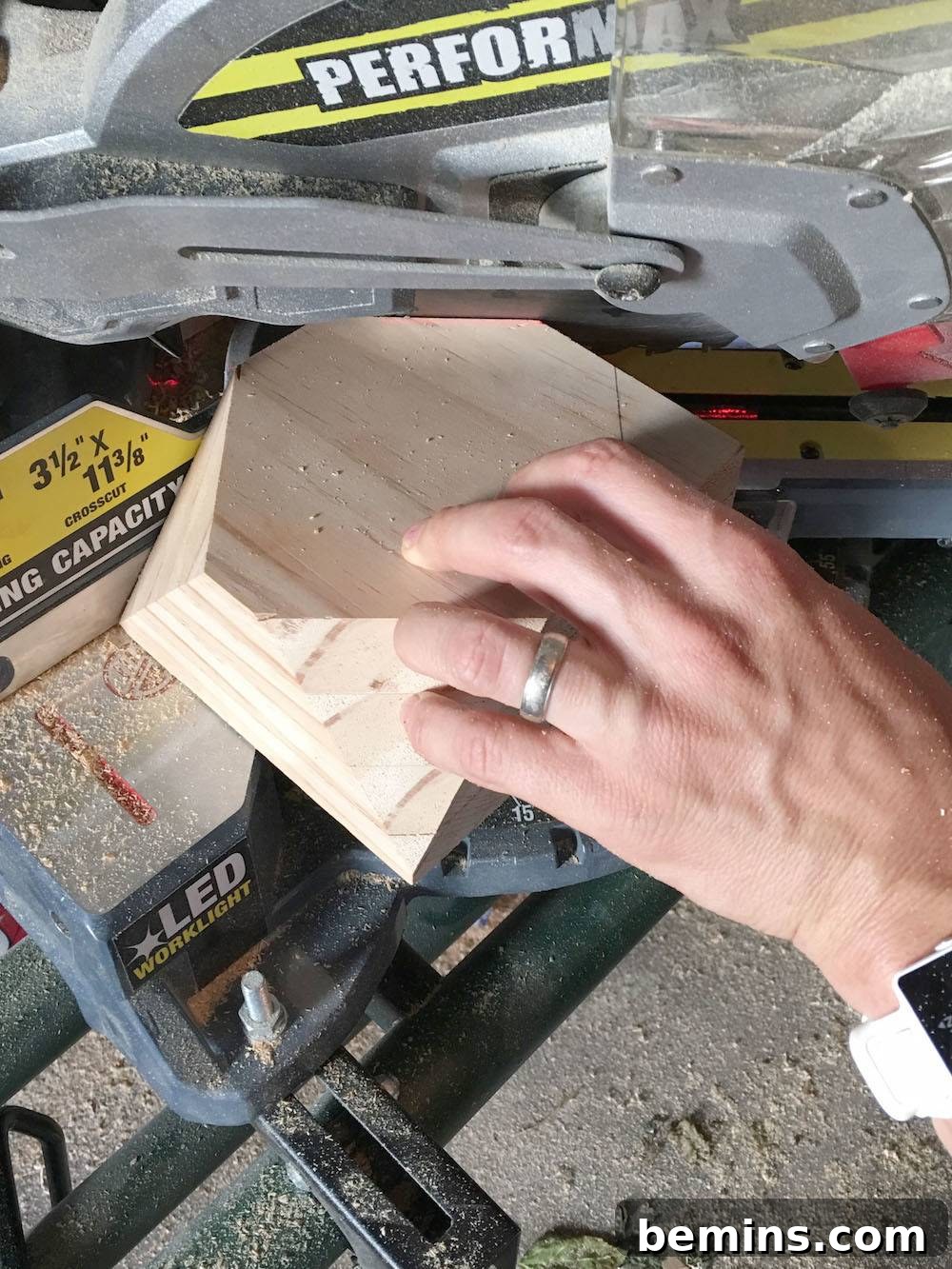

Step 5: Making the Angled Cuts (Side 1)

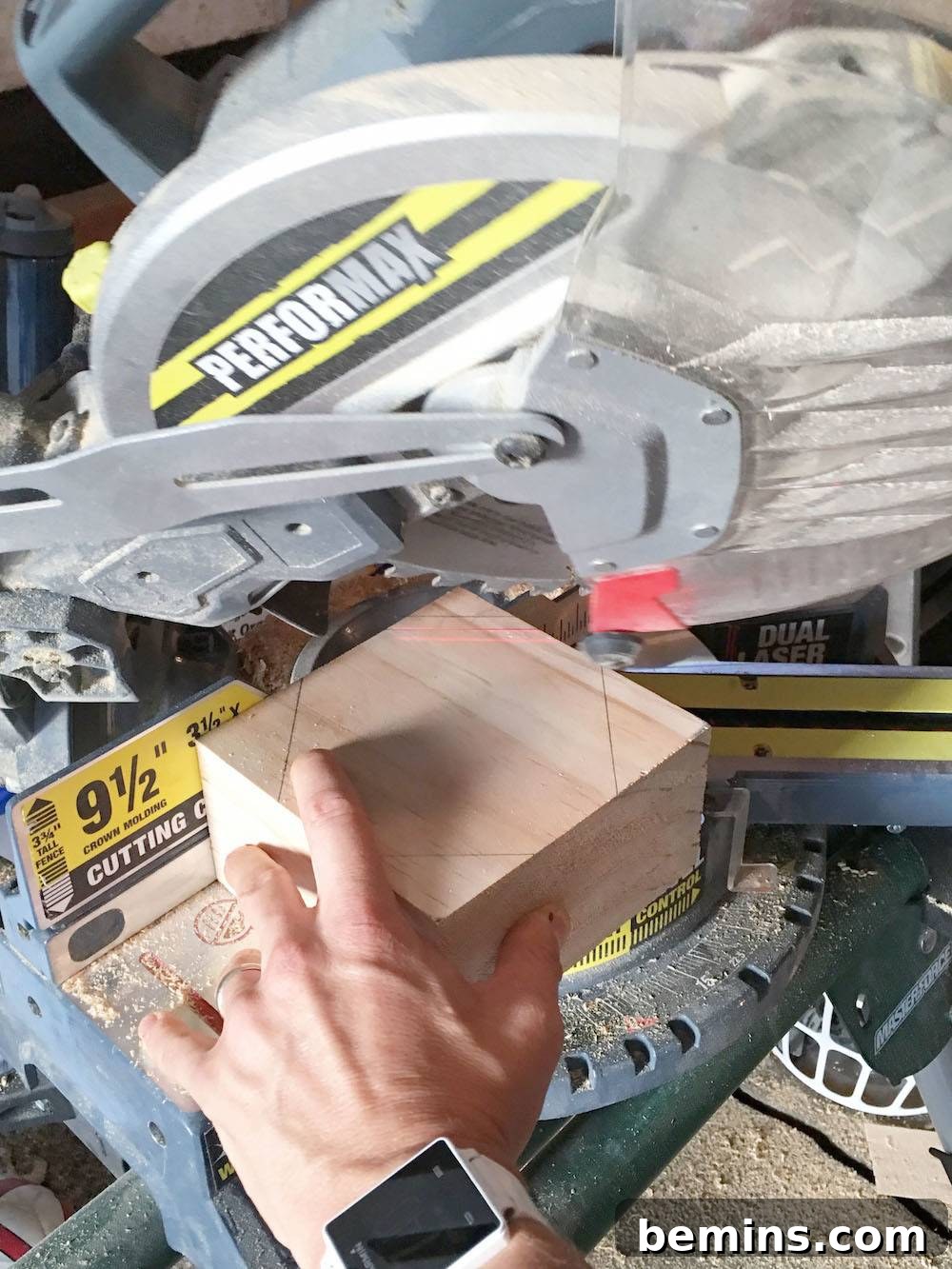

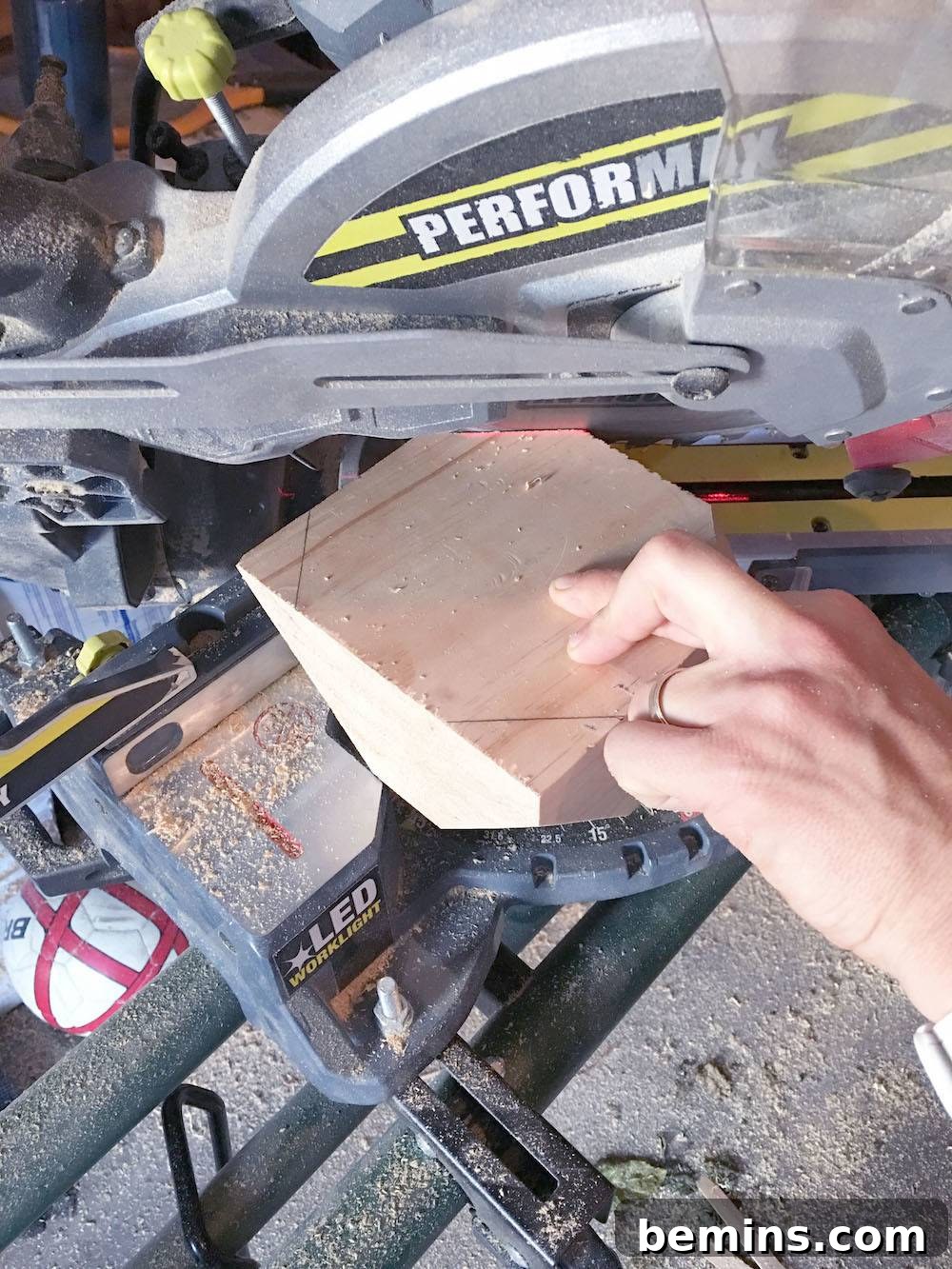

Set your miter saw to an angle (around 15 degrees is a good starting point, but feel free to experiment). Wearing safety goggles, carefully cut along the marked lines. Repeat this process for each marked line on one side of the block.
Step 6: Making the Angled Cuts (Side 2)
Flip the wood block over and repeat the angled cutting process on the remaining side. Again, feel free to vary the angle of the cuts to create a more dynamic and visually interesting shape.

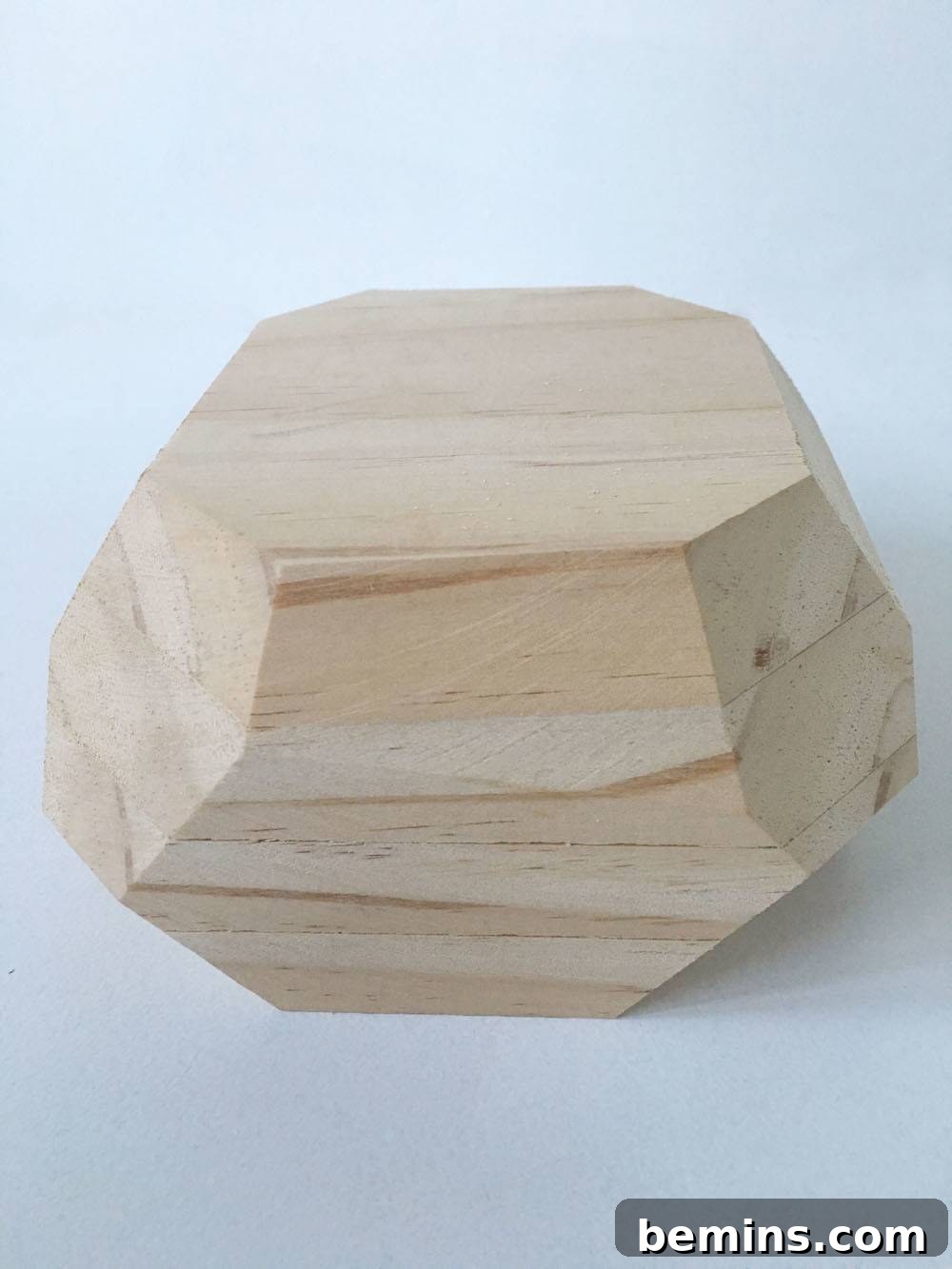

Step 7: Sanding the Block

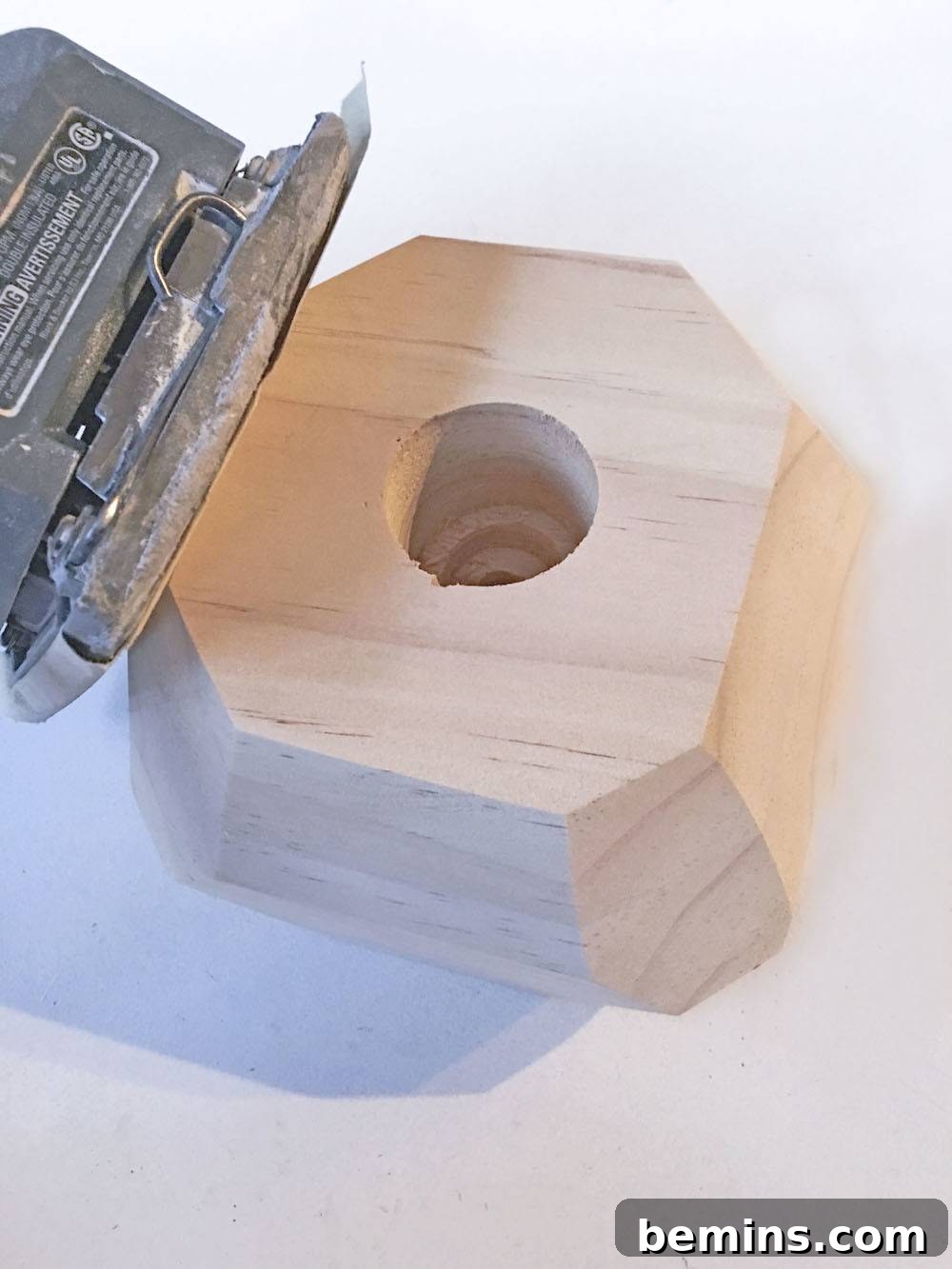

After completing the angled cuts, the wood block will likely have some rough edges and splinters. Use a sander or sandpaper to smooth all surfaces of the block. A smooth finish is essential for both aesthetics and safety. Sanding before drilling the holes is recommended, as it can make the drilling process more accurate.
Step 8: Drilling the Socket Recess

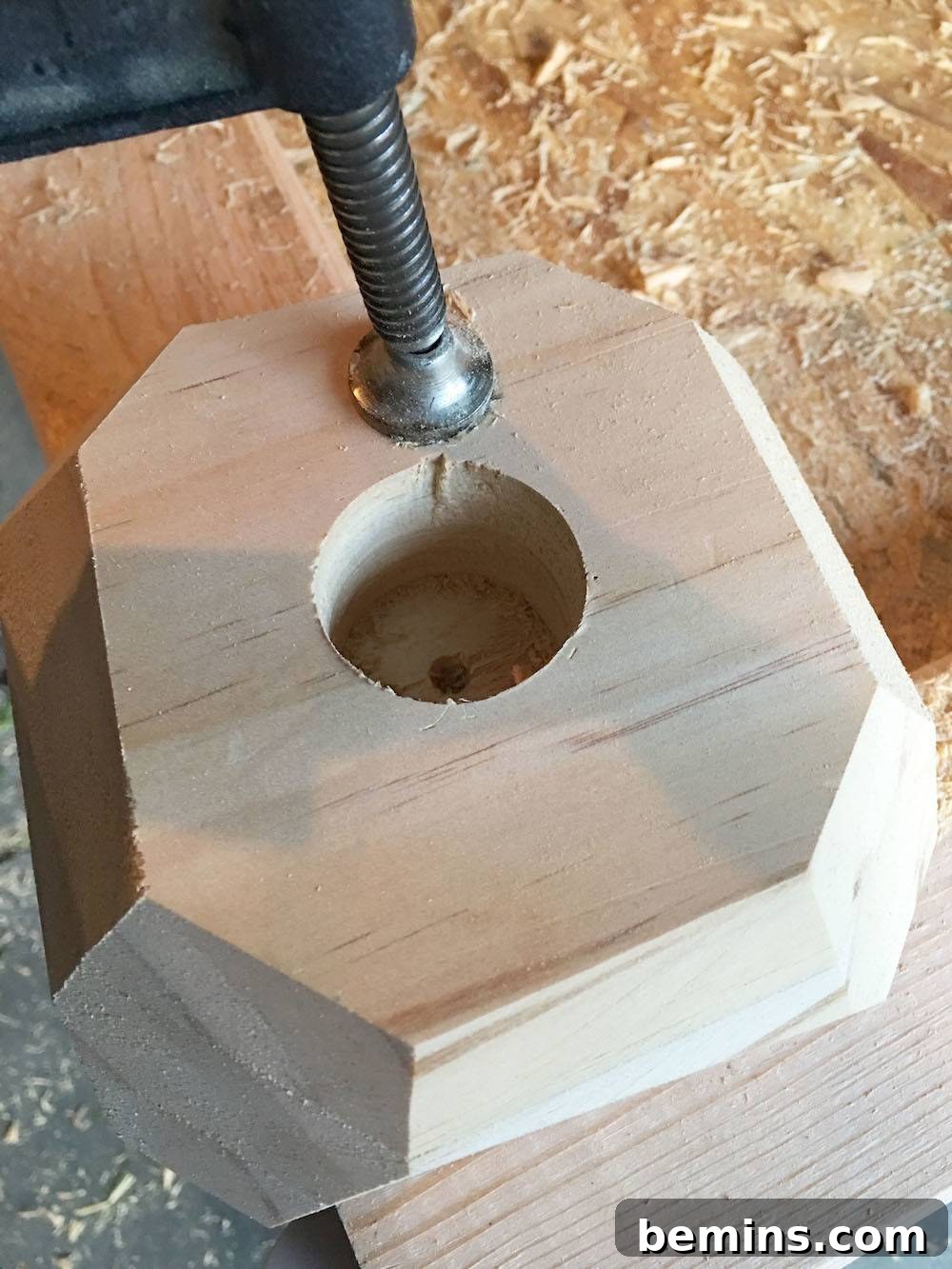

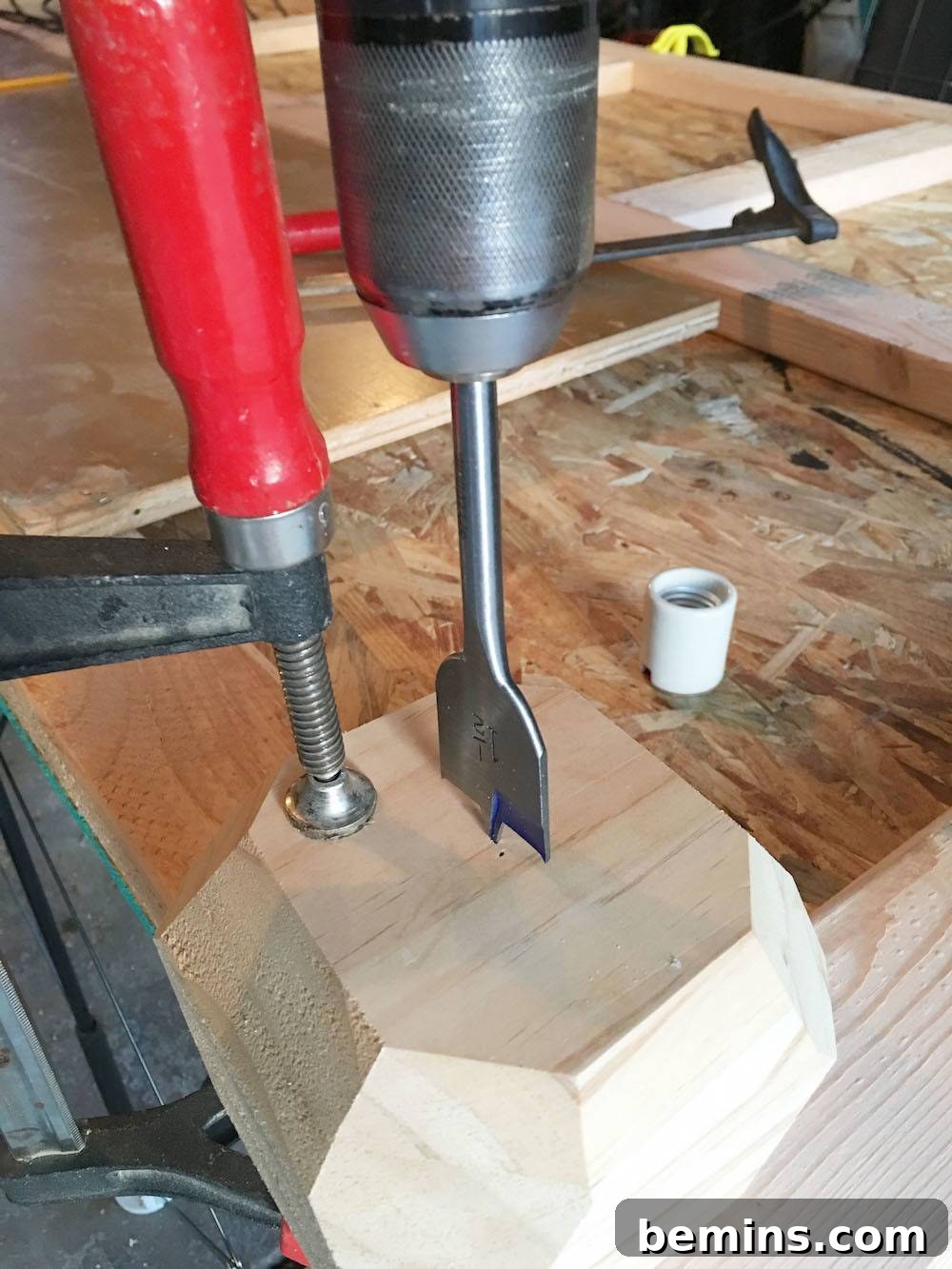

Using the 1 1/2″ spade bit, drill a hole into the top of the block to create a recess for the porcelain lamp socket. The depth of the hole should be such that the white socket protrudes slightly from the top of the block. Test the fit of the socket frequently and drill a little more if needed.
Step 9: Drilling the Socket Base Hole
Examine the bottom of your porcelain light socket. You’ll likely find a screw to secure the threaded cord and a slightly wider section where the lamp socket screws in.
Grandbrass.com

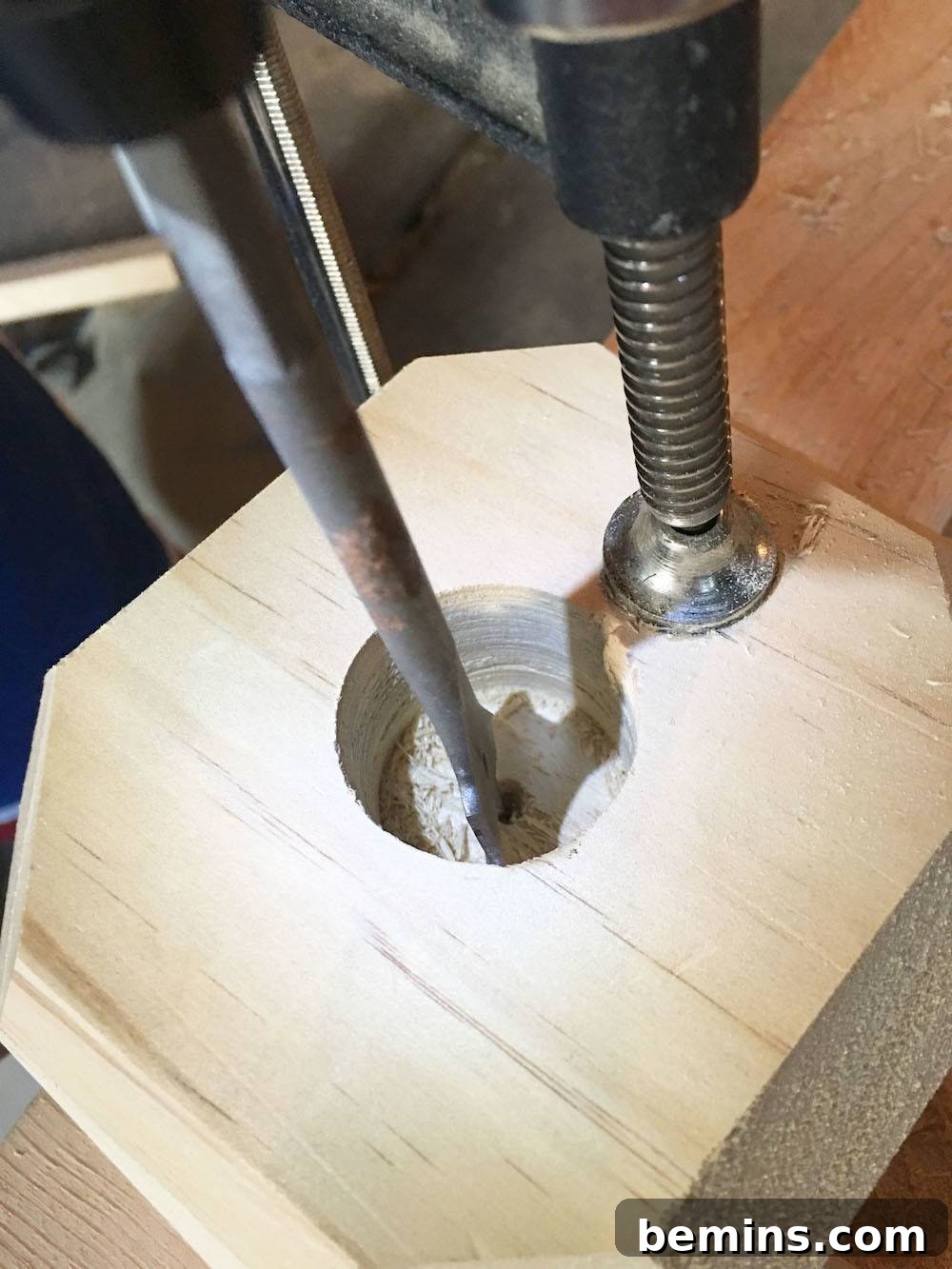

To ensure the bottom of the porcelain lamp socket sits flush with the wood block, use the 5/8″ spade bit to drill a hole deep enough to accommodate this section. Drill carefully and check the fit frequently until the socket sits securely.
Step 10: Drilling the Lamp Pipe Hole

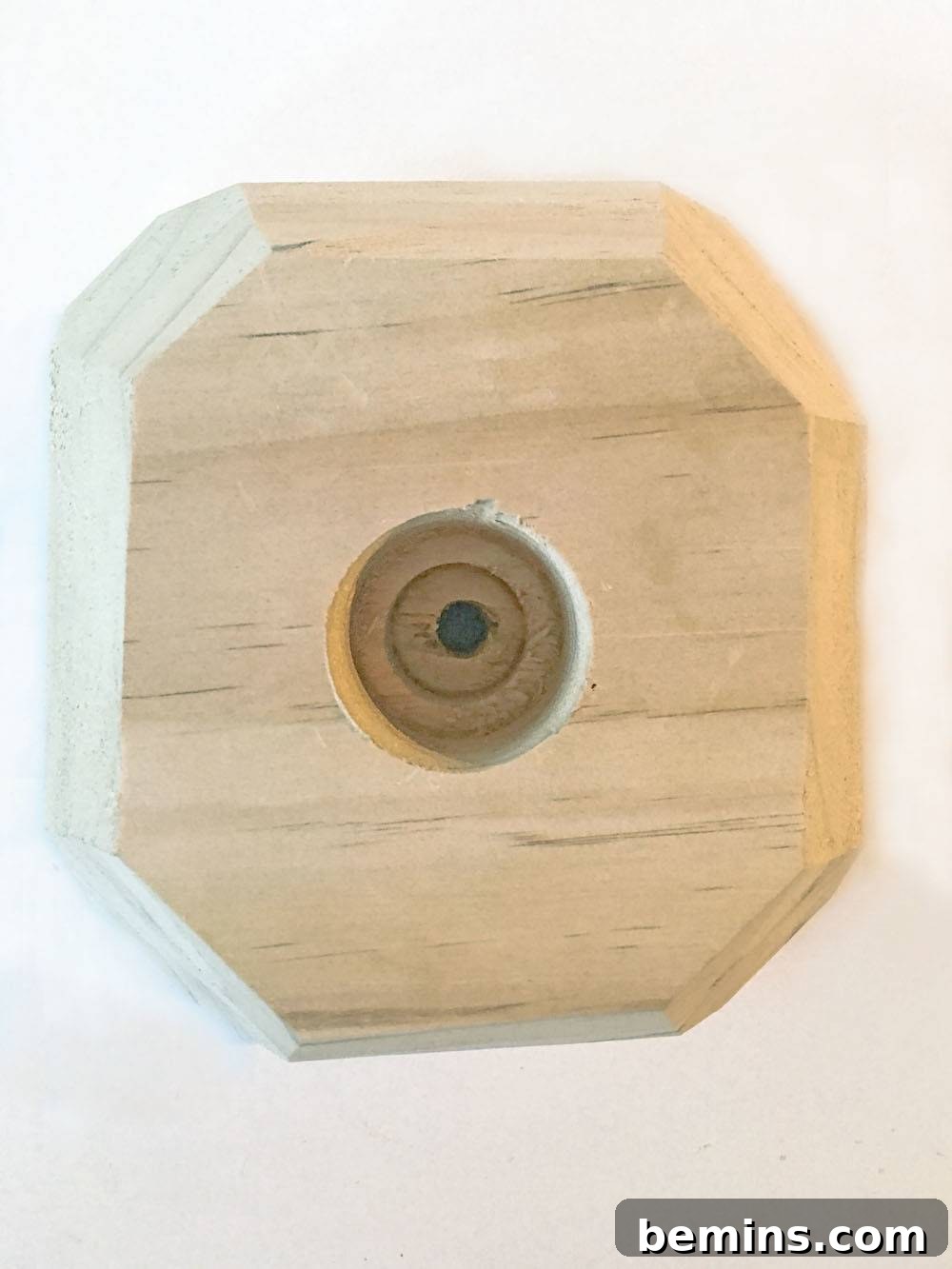

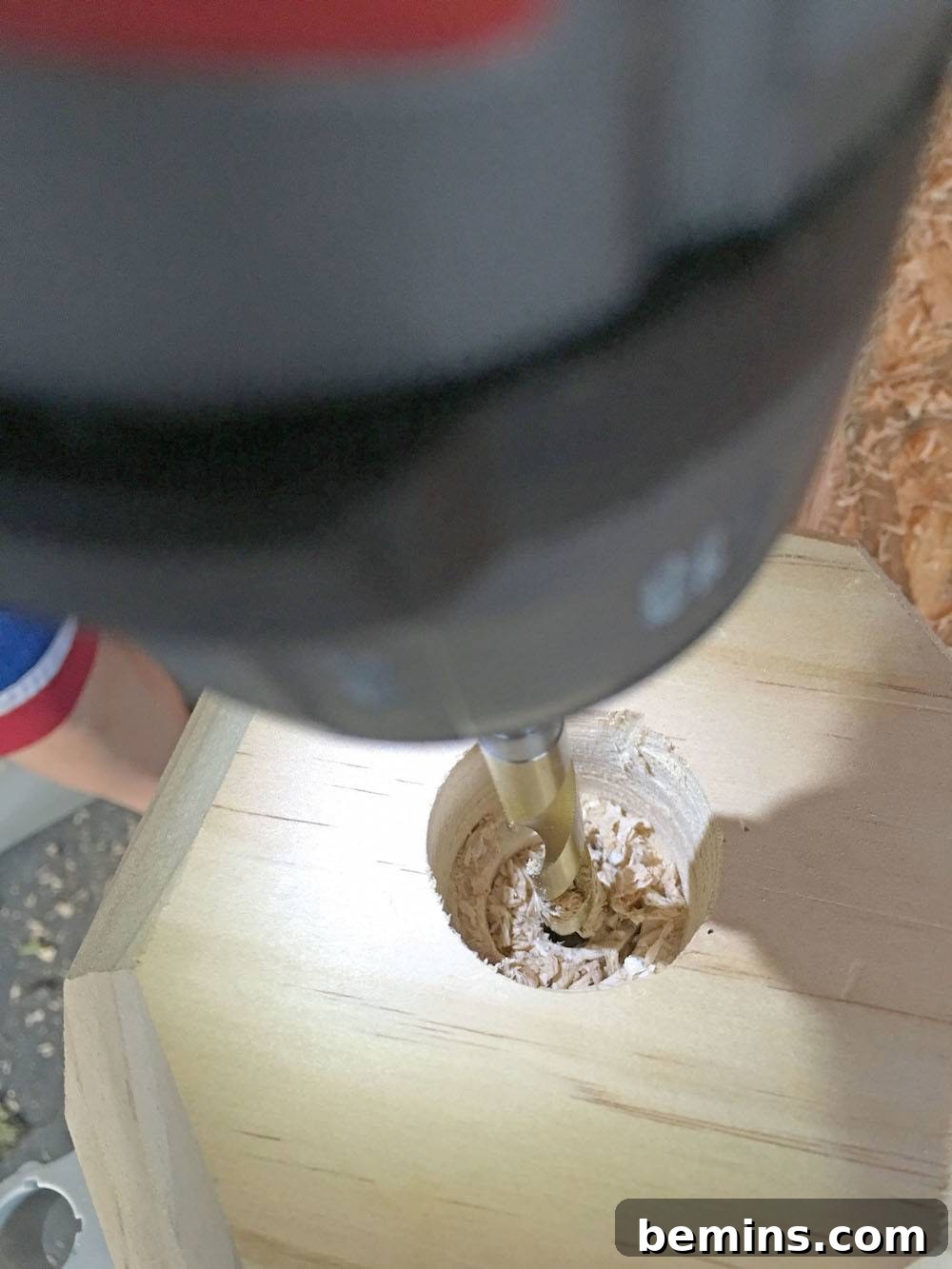

Next, drill a hole through the center of the block for the threaded lamp pipe. Choose a drill bit size that matches the diameter of your lamp pipe.
This hole needs to be centered and straight so the lamp pipe has stable support.

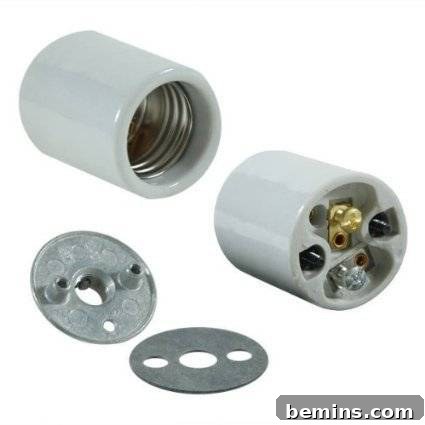

Step 11: Disassembling the Porcelain Socket
Carefully disassemble your porcelain socket. You’ll typically have a front side and a back side.
Step 12: Preparing the Lamp Cord
Before installing the lamp cord to your socket, you need to slide the following components, in order, over your cord: the locking nut, the woodblock (from bottom to top, with the locking nut underneath), the threaded lamp pipe, the metal bottom part of the porcelain socket, and the insulation piece of the porcelain socket (which goes between the installed socket and the bottom part).
If your plug is already installed at the end of your lamp cord, you’ll need to screw everything on in reverse order before attaching the lamp cord to the socket. This can be tricky, so carefully review the next steps to understand how everything fits together.
Step 13: Connecting the Lamp Cord to the Socket

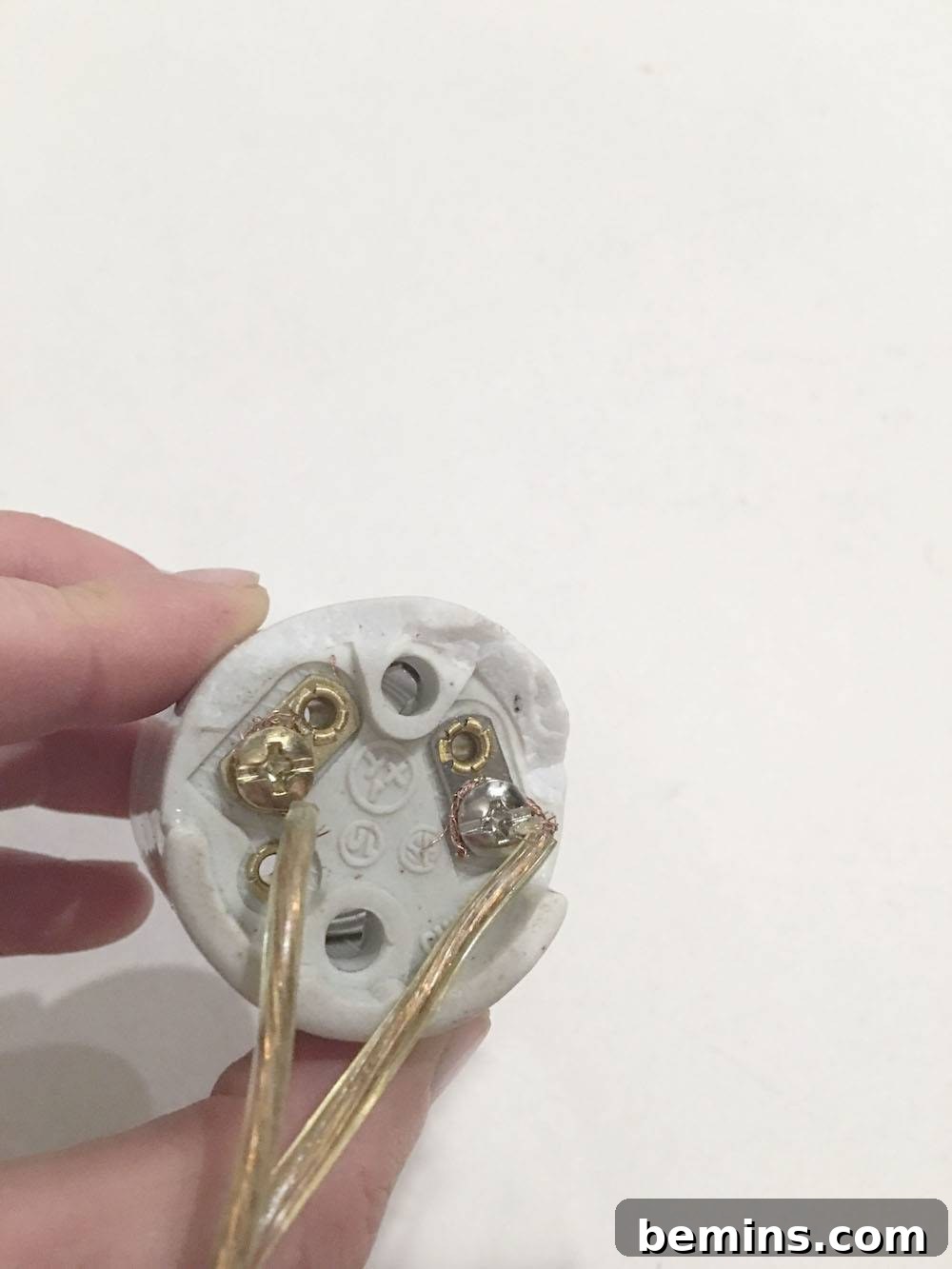

Install the lamp cord to the bottom of the lamp socket, following the instructions that came with your socket. Typically, the ribbed cord is the neutral (white) wire, and the smooth cord is the hot (black) wire. Most lamp sockets require the white (neutral) cord to attach to the silver screw and the black (hot) cord to the gold screw. Always double-check your instructions to be sure.

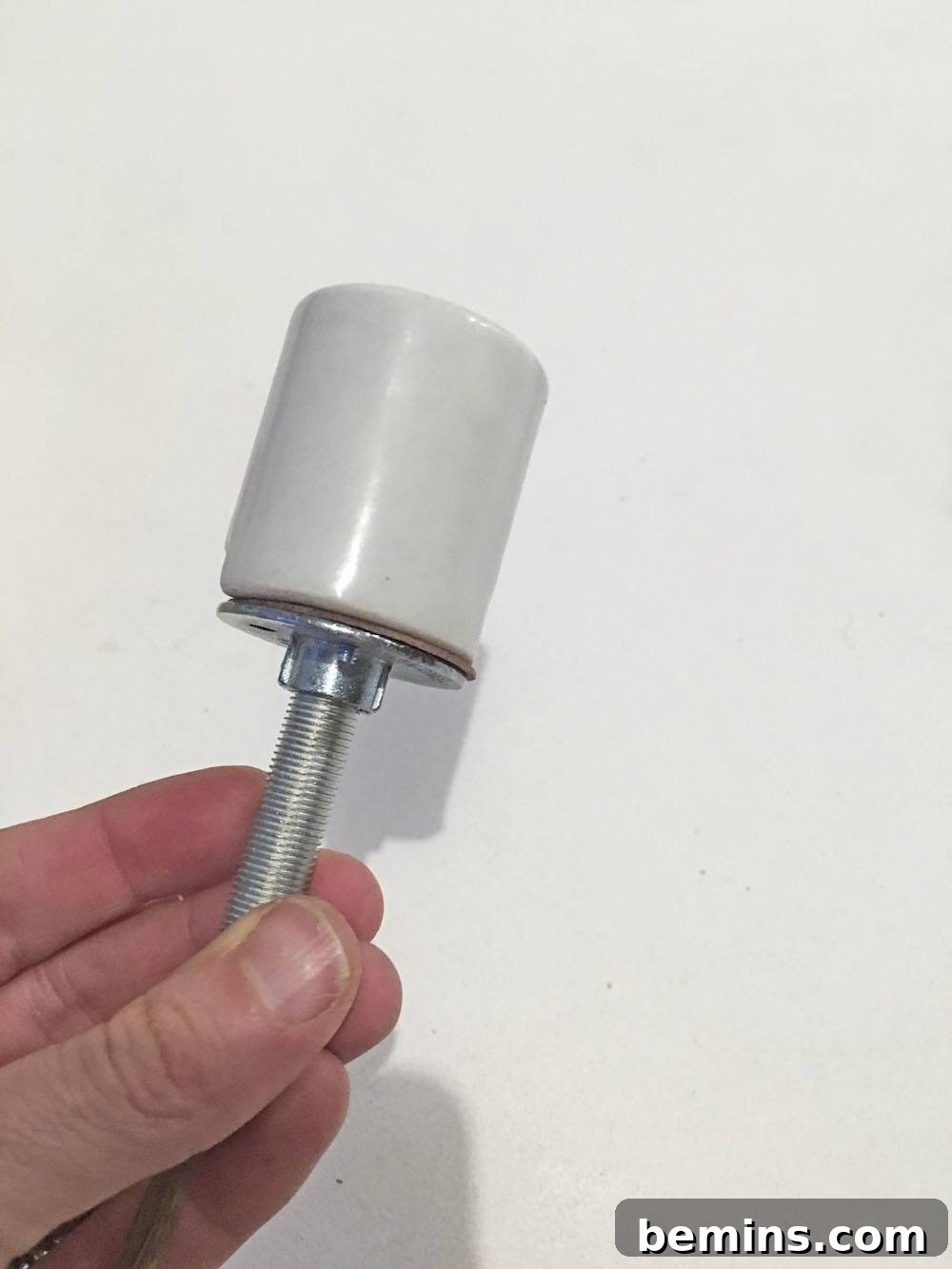

Slide the insulation layer and the bottom part of your socket up the lamp cord and re-attach them (typically with screws from the inside). Screw the lamp pipe into the bottom of your lamp socket and tighten the screw to lock it in place. Remember that the cord should already be threaded through as you attach it all together, following step 12.

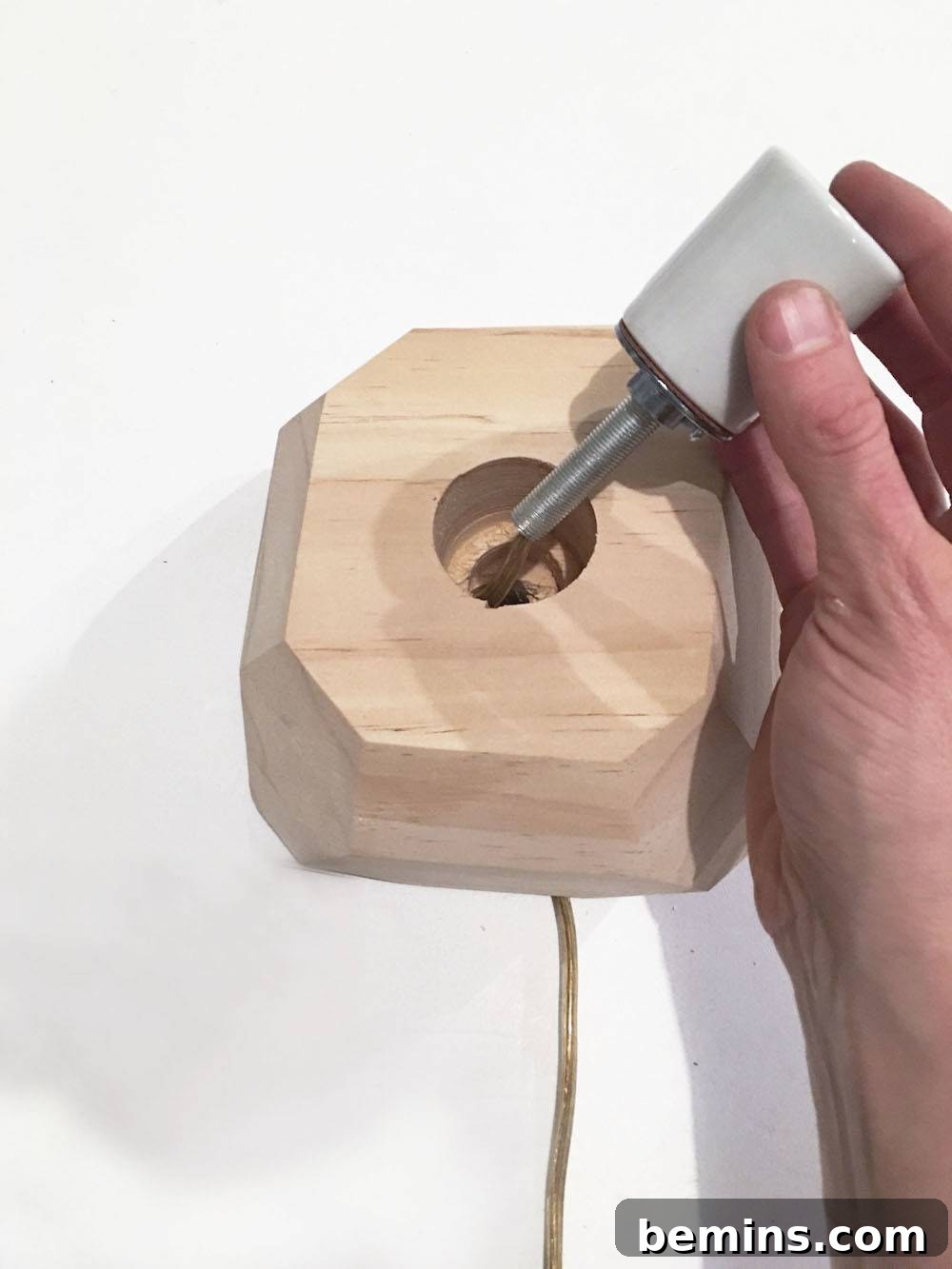

Step 14: Pulling the Cord Through
Pull the cord from the bottom of the lamp and guide the lamp pipe and cord all the way through the hole in the wood block.
Step 15: Securing the Cord

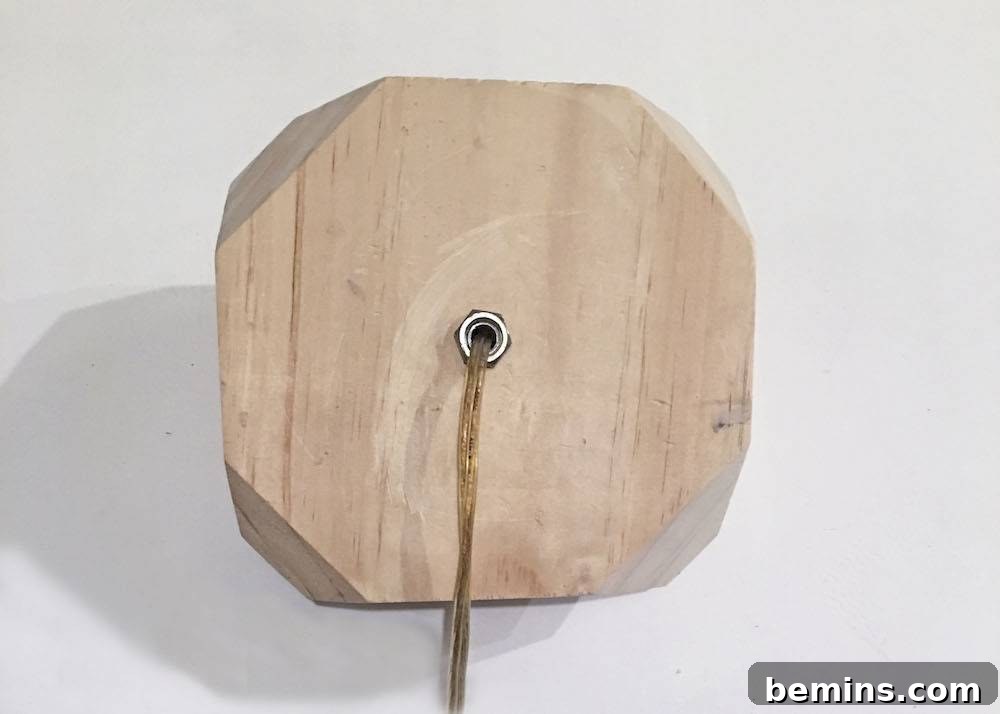

Screw the locking nut onto the bottom of the threaded lamp pipe to secure the cord and prevent it from being pulled out.
Step 16: Attaching the Rubber Feet

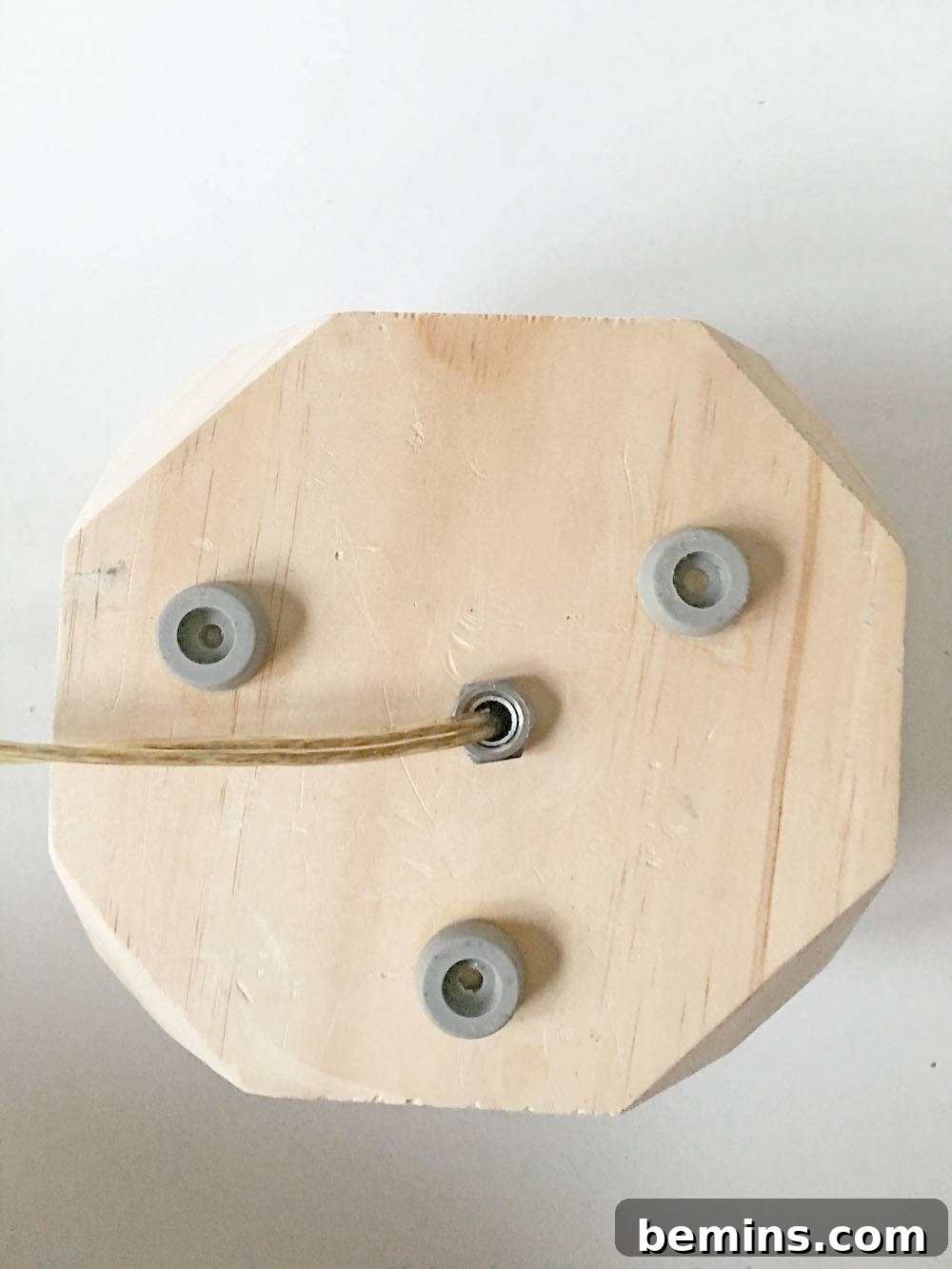

Use hot glue or super glue to attach the rubber feet to the bottom of your wood block. This will allow the cord to fit neatly underneath the block and prevent it from scratching your surfaces.

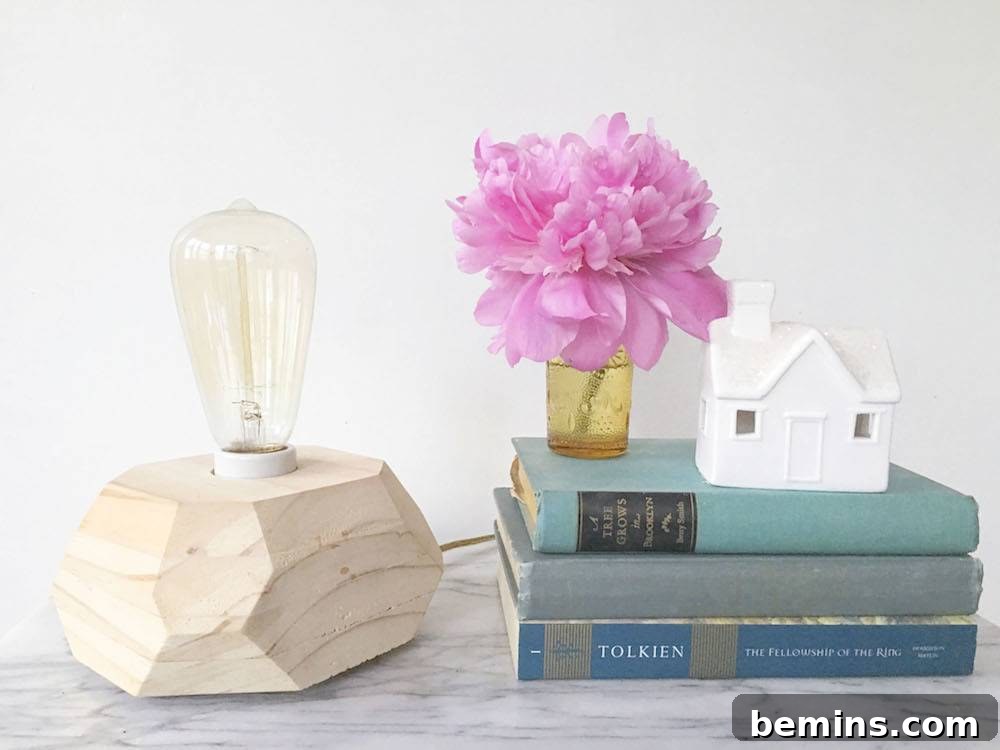

Step 17: Enjoy Your New Lamp!

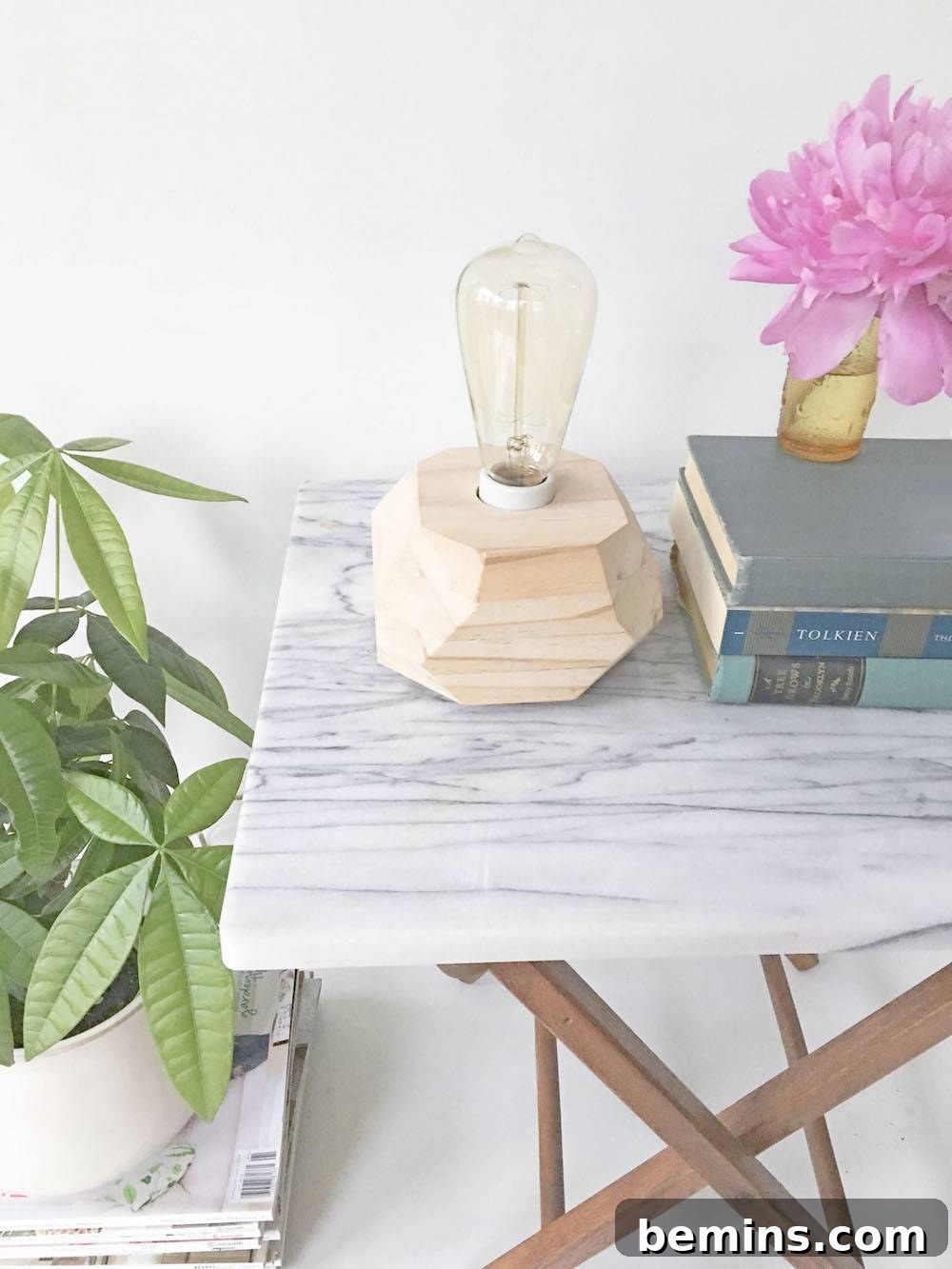

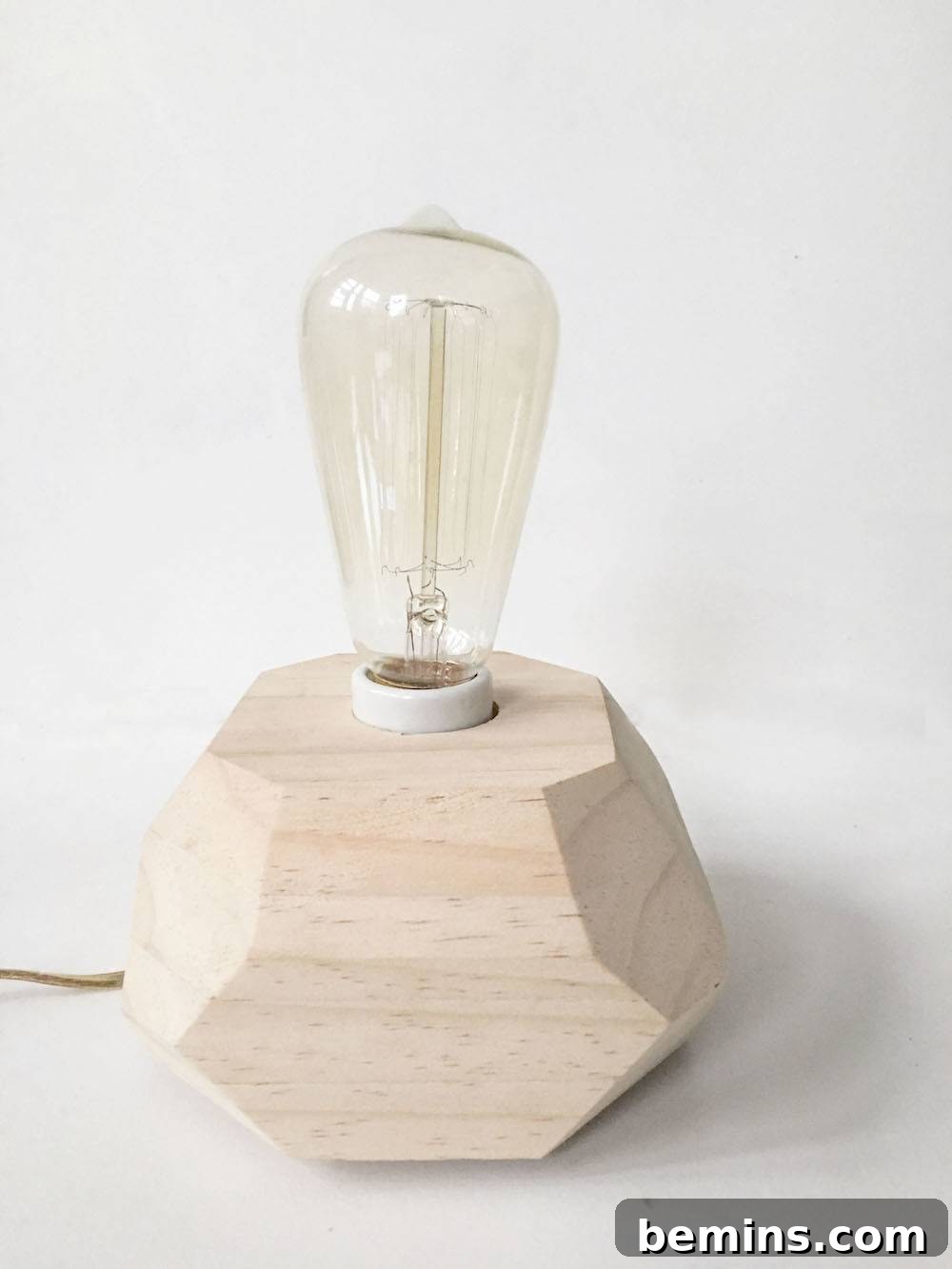

Screw in an Edison bulb, plug in your lamp, and enjoy the warm, inviting glow of your handcrafted Edison bulb table lamp!
Further Lighting DIY Ideas
Interested in exploring more lighting DIY projects? Check out these inspiring ideas for unique and creative lighting solutions: Origami Lamp from Cardboard and Sphere Chandelier from a Glass Bowl.
Crafting your own Edison bulb table lamp is a rewarding experience that allows you to personalize your home decor. With basic woodworking skills and these easy-to-follow instructions, you can create a unique and stylish lighting fixture that adds a touch of vintage charm to any room.
